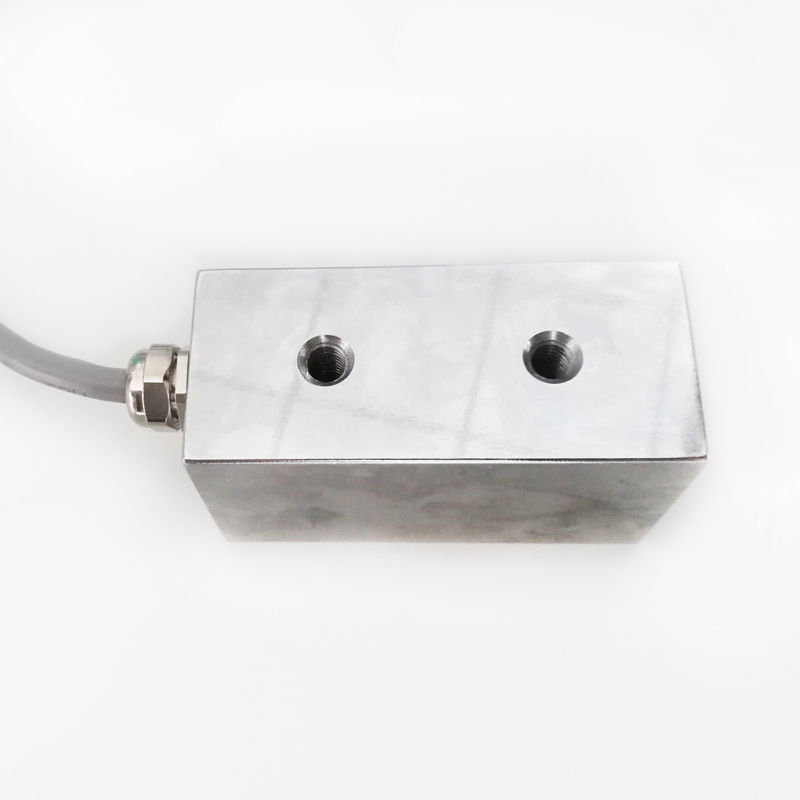

Landa Custom HY904050 V-shape 12v 24v 50kg 100kg Dc Rectangular Electromagnet

Applications:

1. Automated Machining Positioning Used for fixed adsorption of cylindrical and circular workpieces on CNC machining equipment. It ensures precise positioning and improves overall machining accuracy and consistency.

2. Industrial Fixture & Jig Systems Serves as core electromagnetic clamping component for automated fixture equipment. It provides fast locking and releasing for batch workpiece processing and assembly.

3. Special-Shaped Workpiece Handling Perfect for adsorption and transportation of tubular, rod-shaped and irregular magnetic parts. It solves the unstable adsorption problem of traditional flat electromagnets.

4. Mechanical Automation Equipment Embedded in automated assembly machines and processing lines. It realizes fast switching of suction and release to improve production line automation efficiency.

5. Hardware Product Processing Applied in hardware manufacturing and polishing processes. It stably fixes metal rod workpieces to support high-precision grinding, cutting and surface treatment.

6. Intelligent Industrial Detection Devices Matched with industrial testing and sorting equipment. It provides stable mechanical fixing conditions for workpiece detection, identification and automatic sorting operations.

Specifications:

Competitive Advantage:

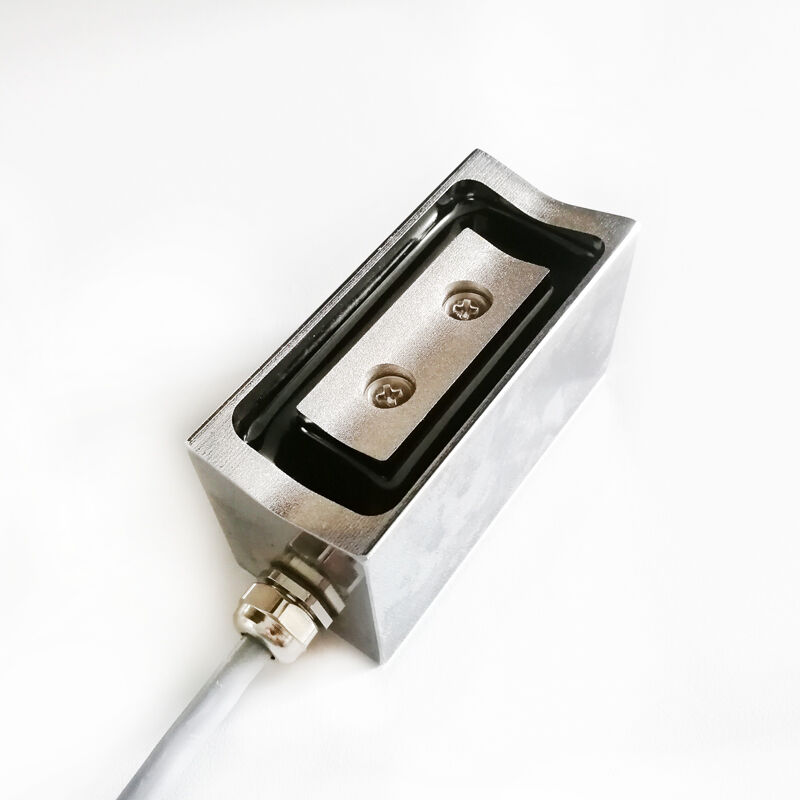

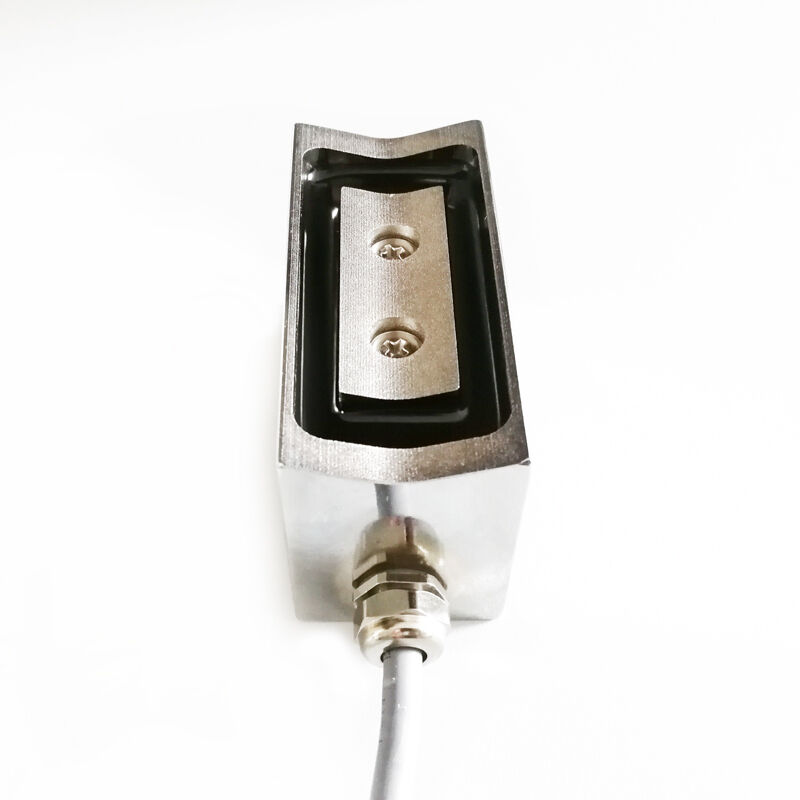

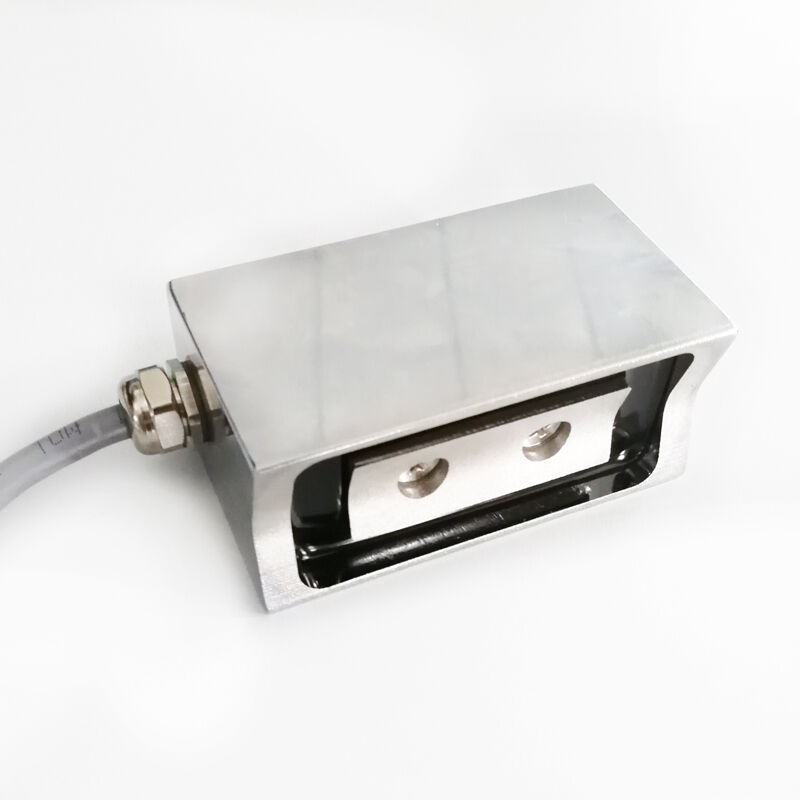

1. Unique V-Shaped Groove Design Different from ordinary flat electromagnets, the customized V-shaped contact surface perfectly fits cylindrical and curved workpieces. It effectively prevents workpiece slipping and improves clamping stability for special-shaped parts.

2. Dual Voltage & Multi-Grade Suction Compatible with universal 12V and 24V DC power supply. Optional 50kg and 100kg holding force grades flexibly meet light and medium-duty industrial fixing and positioning requirements.

3. Low Loss & Stable Magnetic Output Adopts high-purity copper winding and optimized closed magnetic circuit. It reduces magnetic leakage and heat generation, maintaining consistent and reliable suction during long-term frequent operation.

4. Powerful Customization Capacity Supported by Landa’s independent R&D and production system. The product allows personalized modification on size, voltage, suction and structure to match non-standard automated equipment needs.

5. Industrial-Grade Durability & Consistency Manufactured under ISO9001 standard with premium insulating and anti-aging materials. It features dust-proof and wear-resistant performance, ensuring stable batch quality and long service life.

FAQ:

Q1: What is the biggest feature of the HY904050 electromagnet?

It adopts a customized V-shaped groove suction surface, which is specially designed for cylindrical and curved workpieces. It achieves tighter fitting and more stable adsorption than ordinary flat electromagnets.

Q2: What voltage and suction options are available?

This model supports 12V and 24V DC working voltage, with two standard holding force options of 50kg and 100kg, covering most medium and light industrial clamping scenarios.

Q3: Can this electromagnet work continuously for a long time?

Yes. With low-loss magnetic circuit and high-quality heat-resistant coil design, it generates low heat and maintains stable suction, supporting long-term cyclic continuous operation in industrial environments.

Q4: Does Landa support personalized customization for this model?

Absolutely. Landa provides one-stop customization services for dimension, suction force, voltage and installation structure to meet non-standard automated equipment matching demands.

Q5: What workpieces is this V-shape electromagnet suitable for?

It is mainly suitable for cylindrical, rod-shaped, tubular and other curved magnetic metal workpieces, solving slipping and unstable fixation problems in traditional clamping methods.

Q6: What quality standards does this product comply with?

All products are produced in accordance with ISO9001 quality management system. Each unit passes strict suction testing and dimensional inspection to ensure stable batch consistency.
