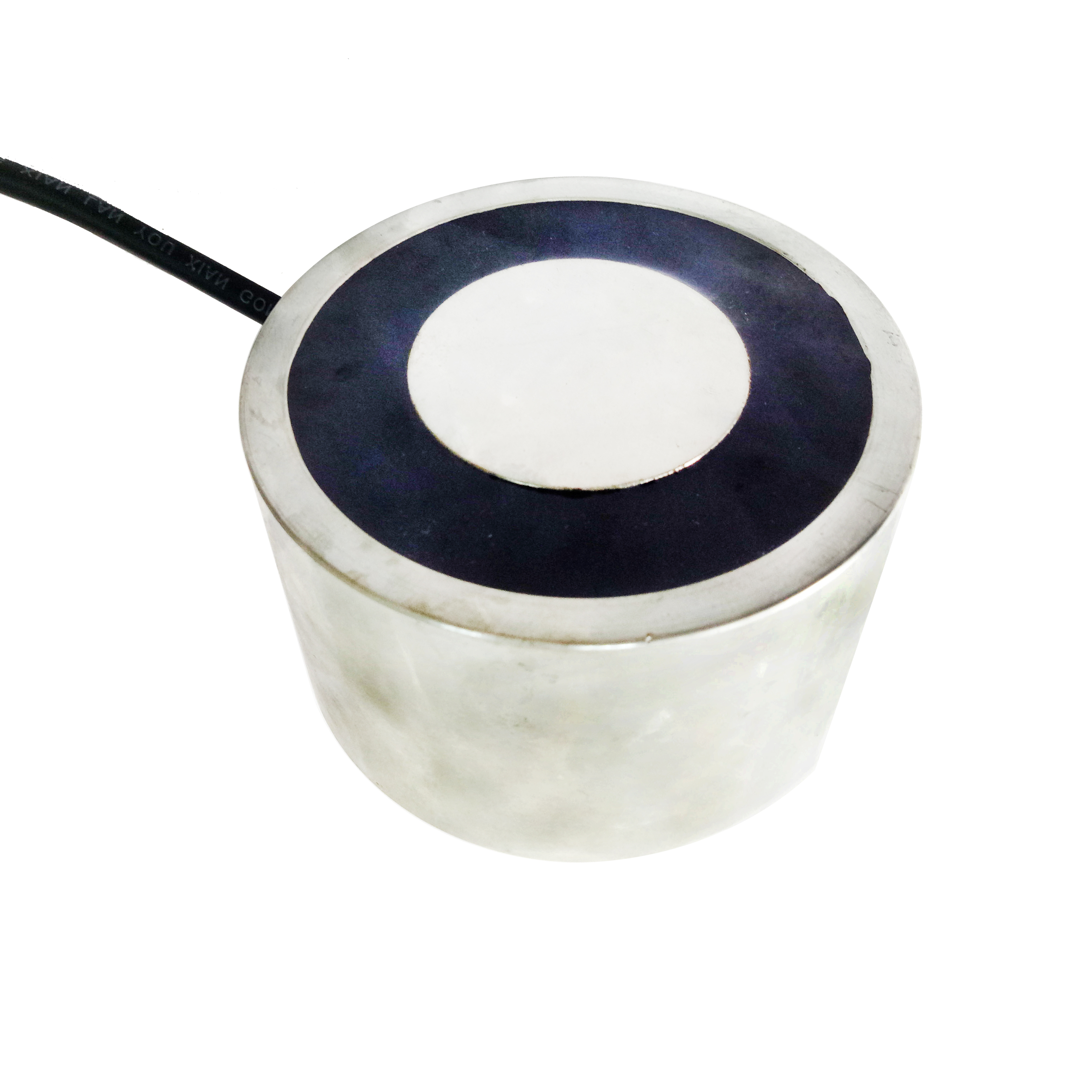

Landa XH10060 Circular Permanent Electromagnet 24V DC Industrial Holding Magnet 1500N New Magnetic Sucker

Description:

1.Release type, round shape, mini size, IP65 waterproof, DC power supply, 12v 24v optional, power off electromagnet.

2.The electromagnet not need to be energised to develop suction force, widely used for holding of magnetic workpieces during machining or assembly, safety mechanisms, selector devices in textiles machinery, door latching holdback devices and etc.

3.Energised-on to release. We also offer an optional spring loaded ejector pin to overcome residual magnetism, as well as optional armature plates as a magnetic counterpart for optimum performance.

4.Also offer custom shape for you need

Applications:

XH10060 is a round power-on-release permanent electromagnet. It maintains strong suction when powered off and releases load instantly when energized, featuring energy saving and low heat, suitable for heavy-duty automated control.

1. Heavy Workpiece Automated Handling

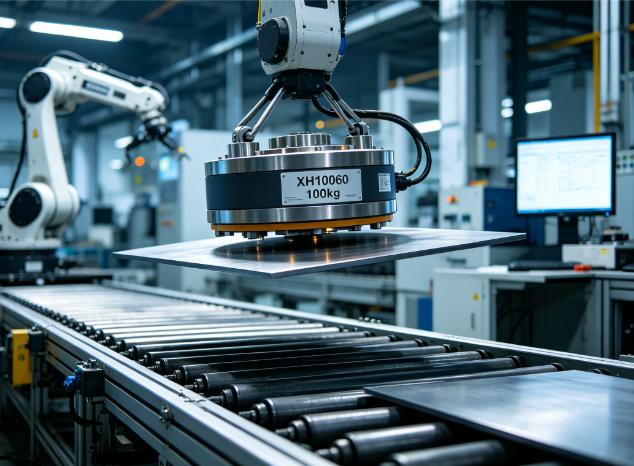

Ideal for grabbing and transferring 100kg flat metal workpieces on automated lines. It holds steadily without power and releases quickly, improving handling efficiency while saving energy.

2. Industrial Equipment Magnetic Locking

Used for safety locking of large equipment protective doors, baffles and industrial cabinets. Permanent suction ensures long-term stable locking without continuous power supply.

3. Heavy-Duty Jig & Mold Positioning

Serves as auxiliary fixing for heavy jigs and molds. It keeps precise positioning in power-off state and supports fast unloading and replacement for cyclic processing.

4. Automated Sorting & Separating

Applied in industrial sorting equipment for heavy metal parts separation. Fast power-on release response matches high-speed automated sorting procedures.

5. Mechanical Stroke Limit Control

Acts as magnetic limit positioning for large automation machinery. It locks mechanical positions stably at power-off and resets instantly after power-on.

6. Batch Production Auxiliary Holding

Perfect for long-term holding of heavy metal components in batch production. Low heat generation and low power loss ensure stable long-cycle operation.

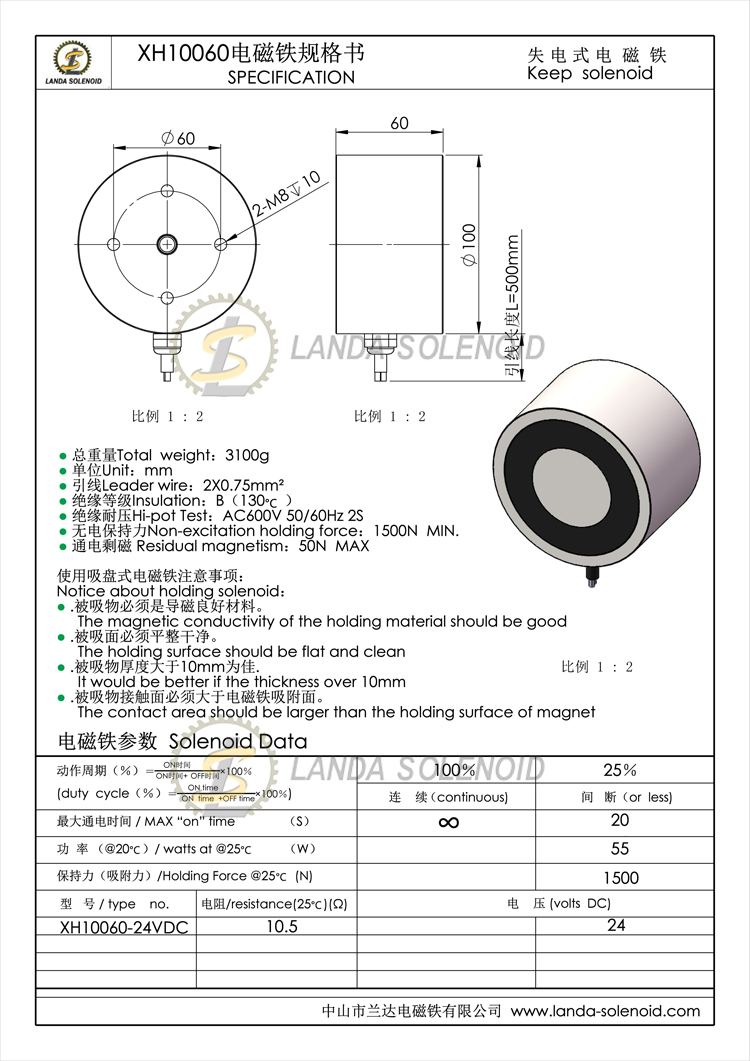

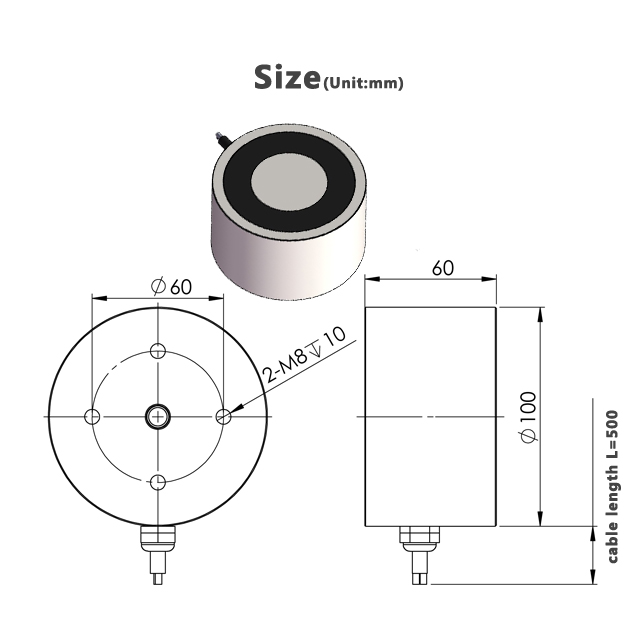

Specifications:

Competitive Advantage:

1. Low Residual Magnetism Optional ejector pins and matching armature plates eliminate residual magnetism, enabling instant, zero-sticking release for precise, repeatable operation.

2. Mini Compact & Stable Suction Space-saving round mini size fits narrow installation spaces, providing concentrated, steady suction to fix workpieces firmly without slipping.

3. IP65 Waterproof & Durable IP65 dustproof and waterproof grade ensures stable performance against moisture and dust, adapting to harsh industrial environments.

4. Strong Compatibility & Customization Standard 12V/24V DC voltage supports most automation systems. Custom shapes and power-on-release functions meet diverse personalized needs.

5. Low Power & Maintenance-Free Featuring sensitive response, low heat generation and low power consumption. Its simple structure ensures long service life and reduces operating costs.

FAQ:

Q1: What is the working principle of XH10060 electromagnet?

It adopts power-on-release and power-off-hold working mode. It maintains 100kg strong suction without power and releases workpieces immediately when energized.

Q2: What is the load capacity of this electromagnet?

This round permanent electromagnet provides a stable 100kg rated holding force, suitable for heavy ferromagnetic workpiece fixing and handling.

Q3: What voltage options are supported?

It supports 12V and 24V universal DC voltage. Both specifications deliver consistent suction and performance for diverse industrial power systems.

Q4: What are the core product advantages?

No continuous power required for holding, greatly reducing power consumption and heat. It features fast response, stable performance and long service life.

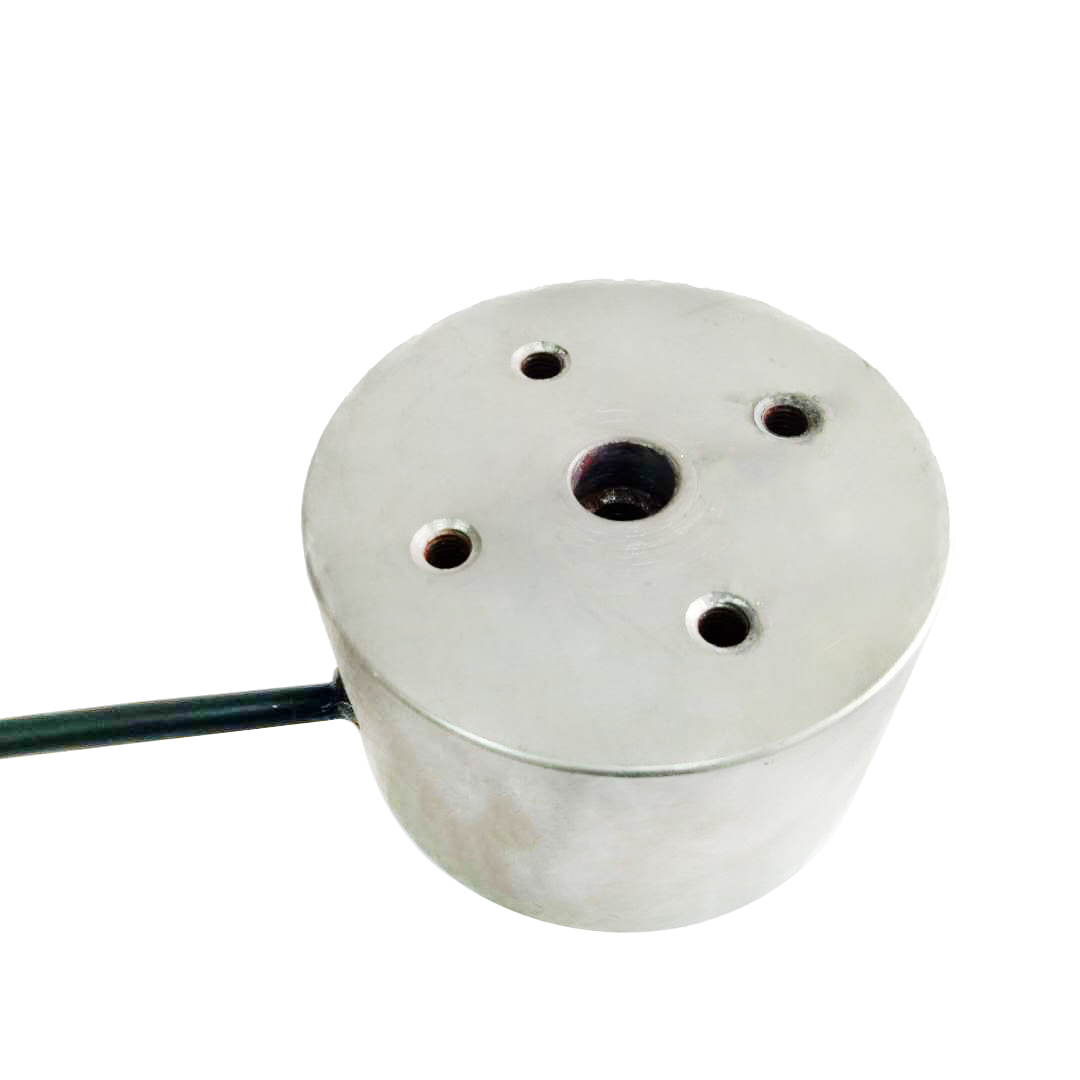

Q5: What is the installation feature of this model?

It adopts optimized round structure with standard mounting holes, enabling firm, convenient and space-saving installation for heavy-duty automation equipment.

Q6: How about the product safety and durability?

Made of premium iron and high-quality magnetic coil, it ensures stable magnetic force. Class B insulation supports safe and reliable long-term industrial operation.
