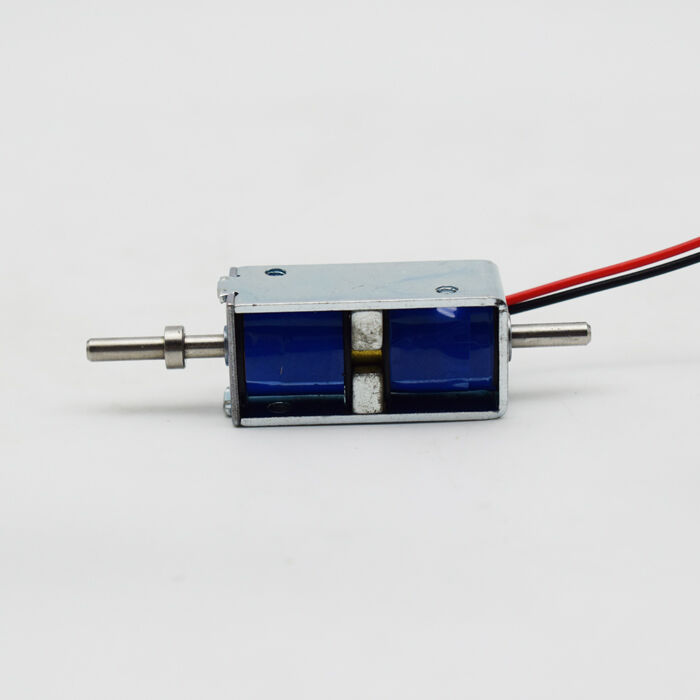

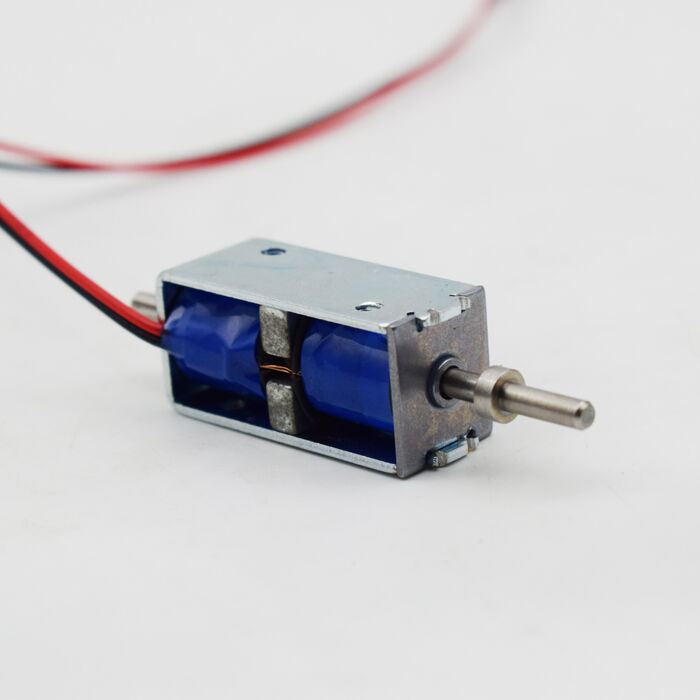

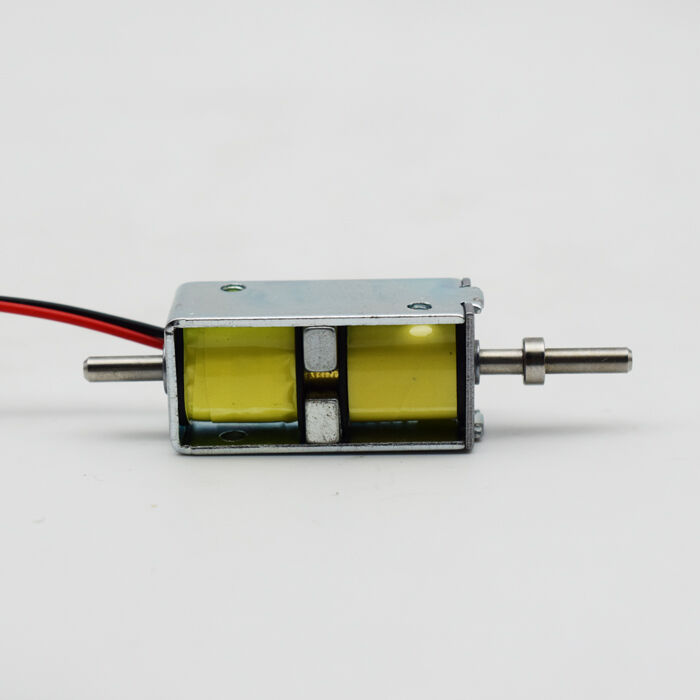

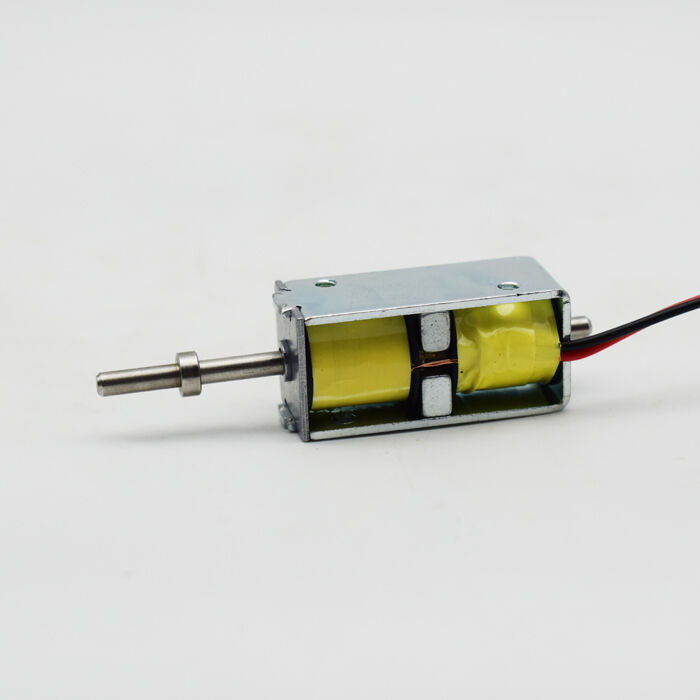

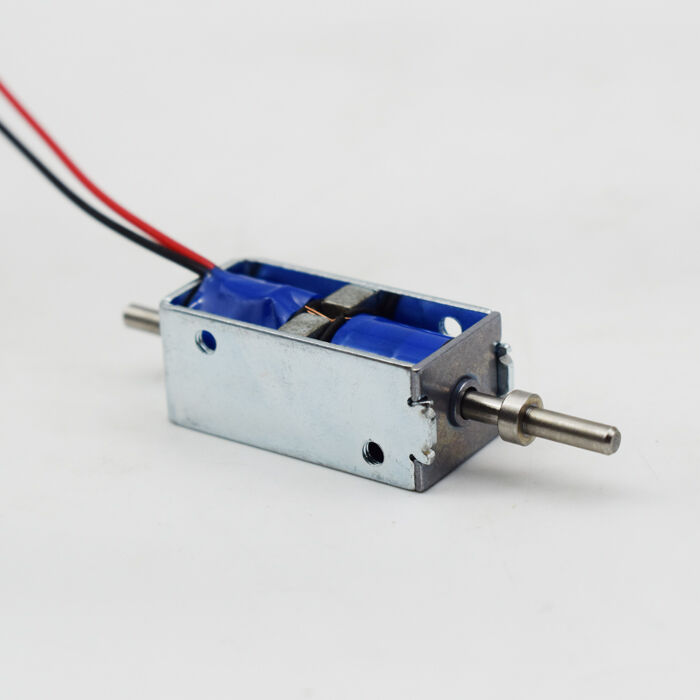

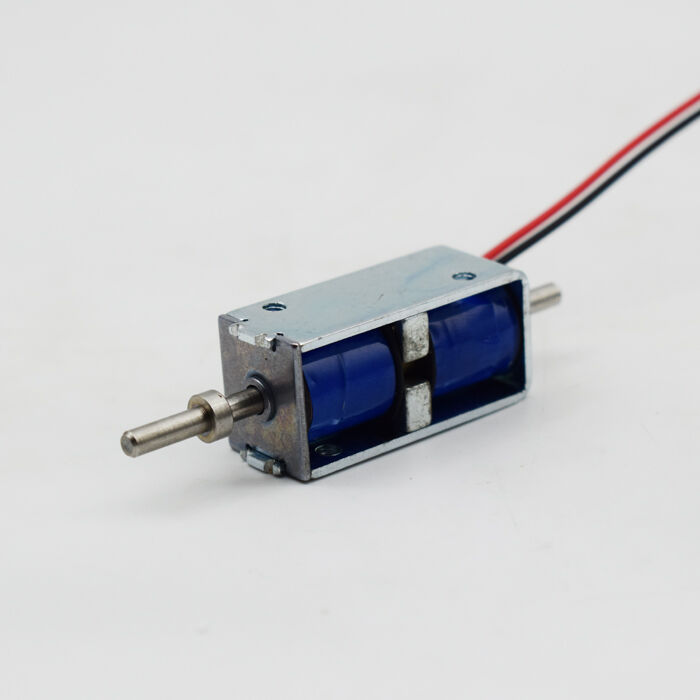

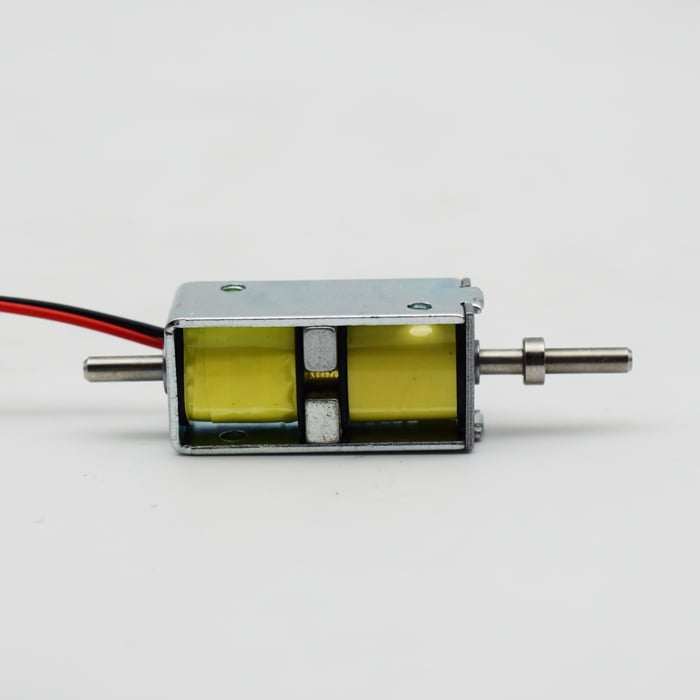

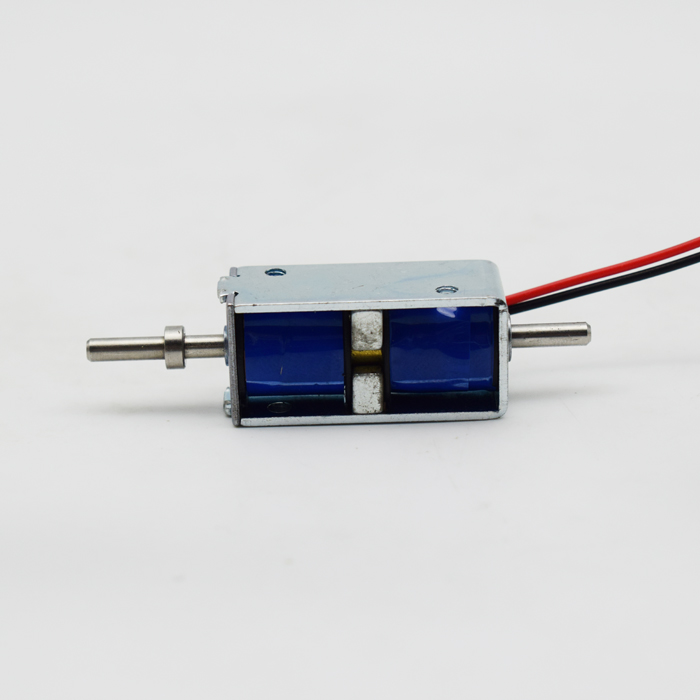

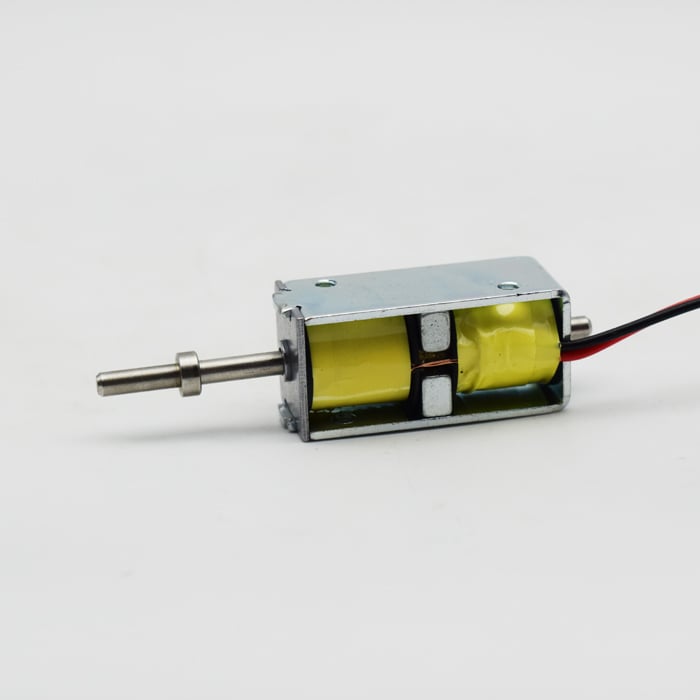

Landa XSQ0735 12v 24v Dc Bistable Solenoid Linear Solenoids Open Frame Solenoid for Typewriters Cash Registers Plotters and Hand Held Printers

Description:

1. Push-pull type, linear motion, plunger spring reset, DC solenoid electromagnet.

2. DC Solenoid electromagnets are mainly used in vending machines, transportation equipment, office equipment, household appliances, machinery, etc.

3. The solenoid works externally by pushing and pulling the plunger, and when energized, it works by pushing and pulling the plunger to connect the object.

4. Open frame structure with mounting holes, accepted custom as you needed.

Applications:

1. Typewriter Mechanical Actuation

Serves as the precise driving core for modern typewriters, realizing stable key reset and mechanical positioning actions with low power consumption and fast response for long-term typing operation.

2. Cash Register Internal Control

Applied to cash register mechanical latching and pop-up mechanisms. Power-off self-latching ensures stable structural locking and flexible instantaneous release for daily commercial use.

3. Plotter Precision Positioning

Provides accurate linear push-pull motion for plotter stroke calibration and component reset, supporting high-precision drawing and repeated cyclic working of plotting equipment.

4. Handheld Printer Drive Mechanism

Perfect for portable handheld printers, undertaking paper feeding, reset and switch latching actions. Low power loss adapts to battery-powered portable working modes.

5. Mini Office Equipment Automation

Widely used for internal mechanical driving of various compact office devices. Open-frame heat dissipation design ensures stable operation during frequent intermittent switching.

6. Low-Precision Commercial Latching System

Suitable for miniature structural locking and state maintenance of commercial electronic devices, achieving energy-saving and maintenance-free long-term standby operation.

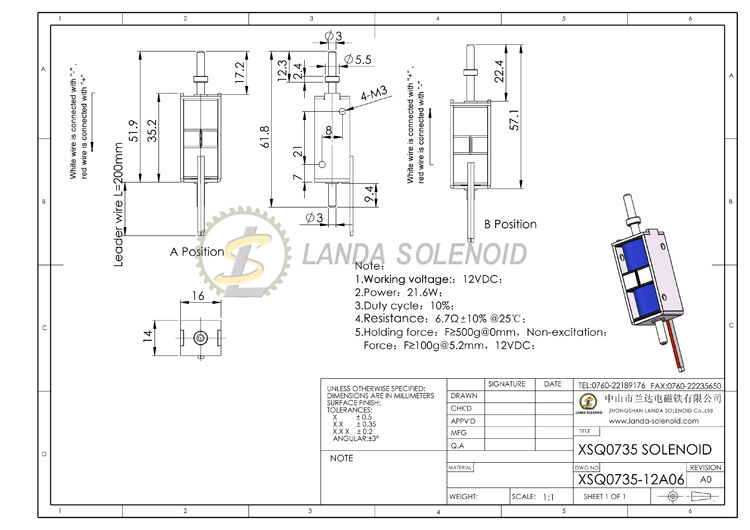

Specifications:

Competitive Advantage:

1. Low Residual Magnetism Optional ejector pins and matching armature plates eliminate residual magnetism, enabling instant, zero-sticking release for precise, repeatable operation.

2. Mini Compact & Stable Suction Space-saving round mini size fits narrow installation spaces, providing concentrated, steady suction to fix workpieces firmly without slipping.

3. IP65 Waterproof & Durable IP65 dustproof and waterproof grade ensures stable performance against moisture and dust, adapting to harsh industrial environments.

4. Strong Compatibility & Customization Standard 12V/24V DC voltage supports most automation systems. Custom shapes and power-on-release functions meet diverse personalized needs.

5. Low Power & Maintenance-Free Featuring sensitive response, low heat generation and low power consumption. Its simple structure ensures long service life and reduces operating costs.

FAQ:

Q1: What is the core feature of Landa XSQ0735 solenoid?

XSQ0735 is an open-frame bistable linear latching solenoid with power-off self-latching function, featuring zero standby power and fast pulse-driven switching.

Q2: What voltage options does this solenoid support?

It supports universal 12V and 24V DC input, fully compatible with commercial office equipment and portable electronic device power systems.

Q3: What working principle does this bistable solenoid adopt?

It uses pulse current to switch push-pull states and relies on magnetic self-latching to maintain position without continuous power supply, realizing energy-saving operation.

Q4: What are the advantages of open-frame structure?

The open-frame design delivers superior heat dissipation, lighter weight and easier installation, ideal for compact and miniaturized office and portable devices.

Q5: What mainstream devices is XSQ0735 suitable for?

It is specially designed for typewriters, cash registers, plotters, handheld printers and various miniature office automation equipment.

Q6: What are the core advantages of this solenoid?

It features low energy consumption, no heat accumulation, stable repeated action, compact size and long service life, perfectly fitting frequent intermittent commercial working scenarios.
