Landa H1632 Circular Holding Electromagnet 24V/12V DC Screw Mounting 2.6W 16x32mm Round Lifting Magnet
Place of Origin: Zhongshan
Brand Name: Landa
Model Number: H1632
Certification: CE, RoHS, REACH, UL,ISO9001,ISO14001
Minimum Order Quantity: 2pcs
Price: 6$/pcs
Packaging Details: 35*31*18CM/CTN
Delivery Time: 7-15days
Payment Terms: 100% payment before production
Supply Ability: 50000units/per a week
Appurtenance:
Drawing download:
- Overview
- Advantages & Application
- Recommended Products

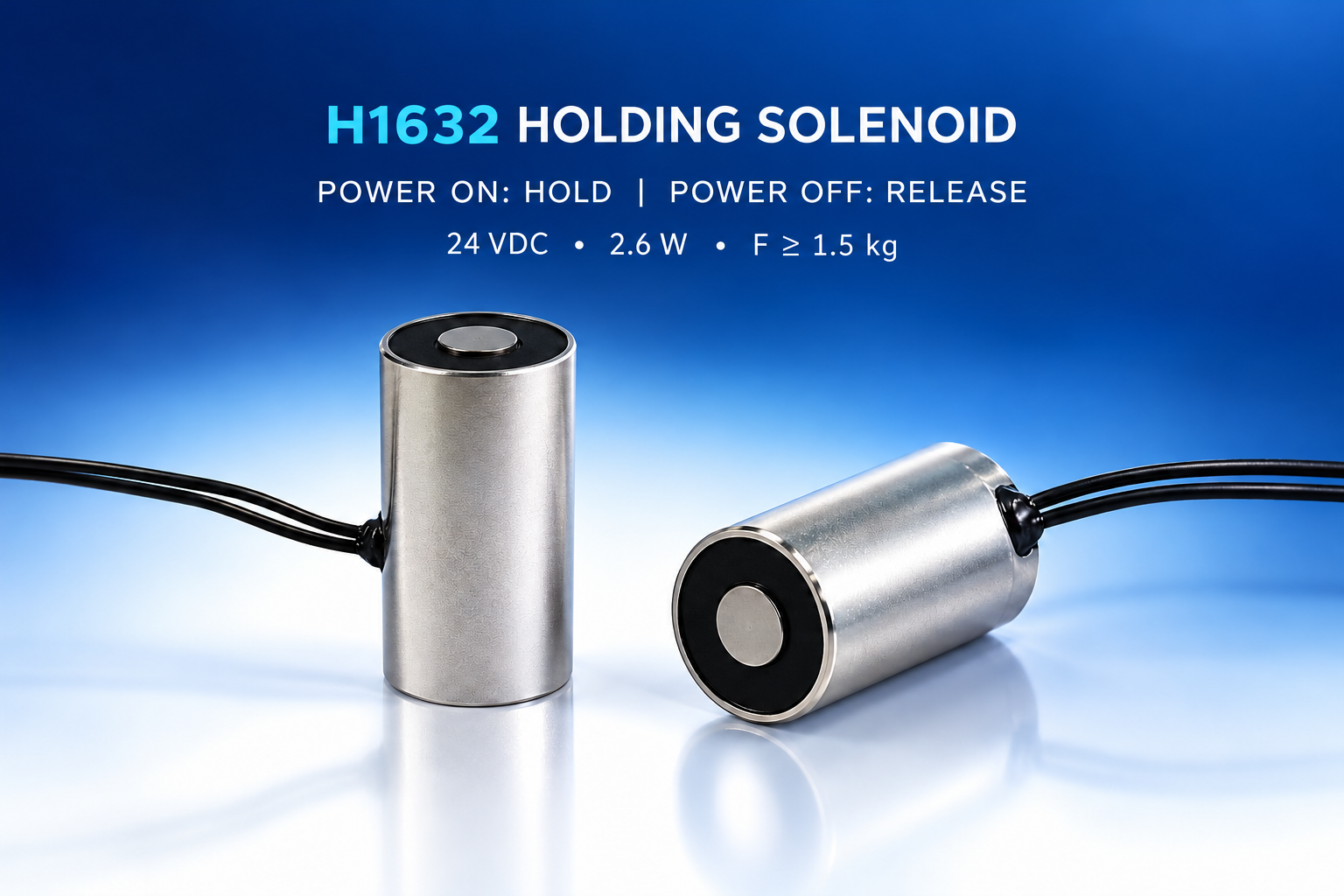

H1632 Mini Round Electromagnet 12v Dc Electromagnet
| Specifications | |||
| Brand | Landa | Product Name | Round electromagnet |
| Model | H1632 | Rated Voltage | DC 12v 24v |
| Power | 2.6w | Force | 15N |
| Waterproof Class | IP65 | Duty Cycle | 100% |
| Cable Length | 200mm | Material | Metal, Electronic Parts |
| Action Form | Holding type | Weight(N.W.) | 0.03kg |
| Install Style | Screw | Thread Size & Deepth(mm) | M4,8 |
| Hi-Pot Test | AC 600V 50/60Hz 2s | Insulation Class | B |
| Packaging Details | |||
| Body Size | D16*H32 (mm) | Carton Box Size(Standard) | 350*310*180(mm), accepted custom |
Product Feature
Round electromagnet
1.Holding type, round shape, mini size, ip65 waterproof, DC electromagnet, 12v 24v standard voltage, accepted custom

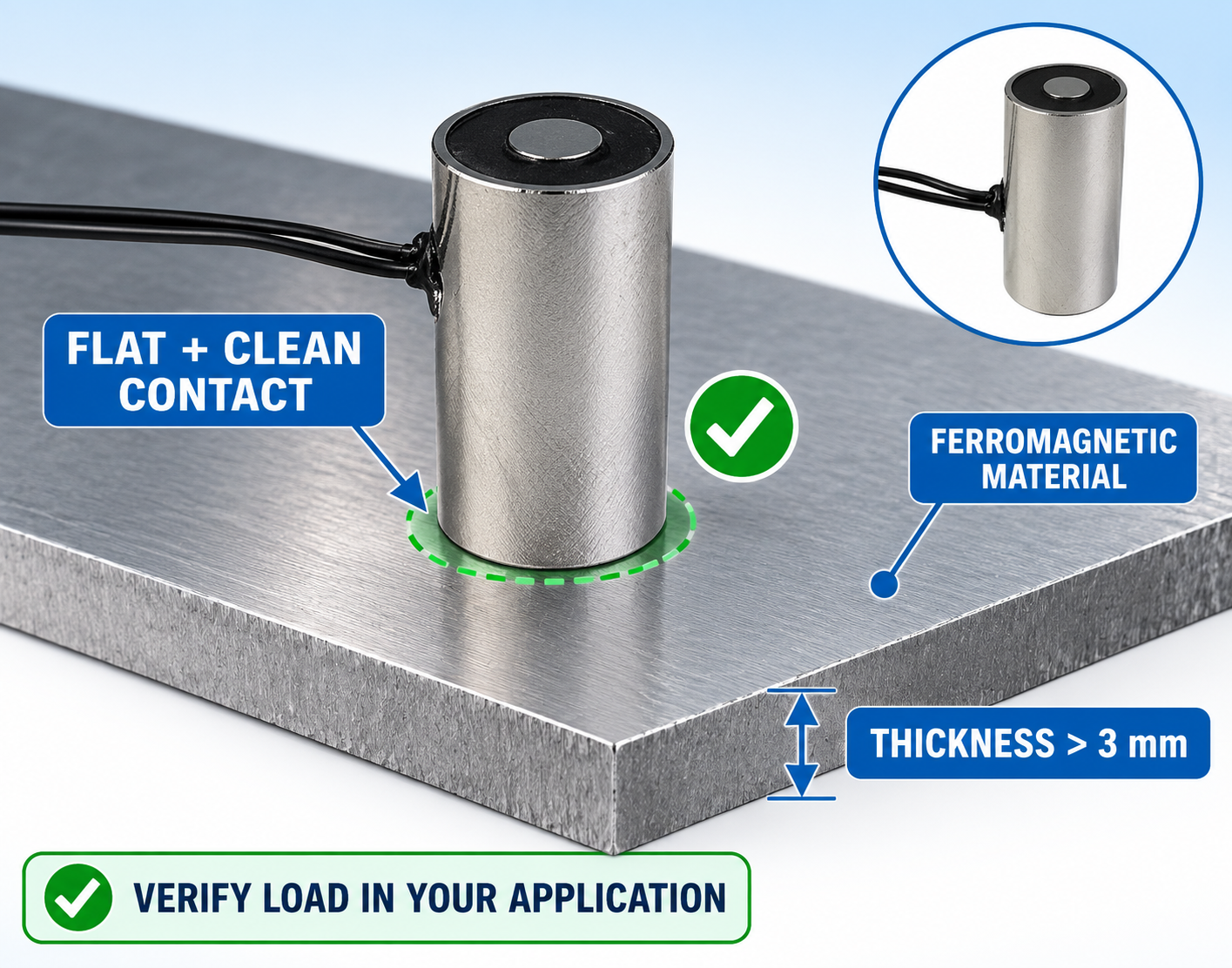

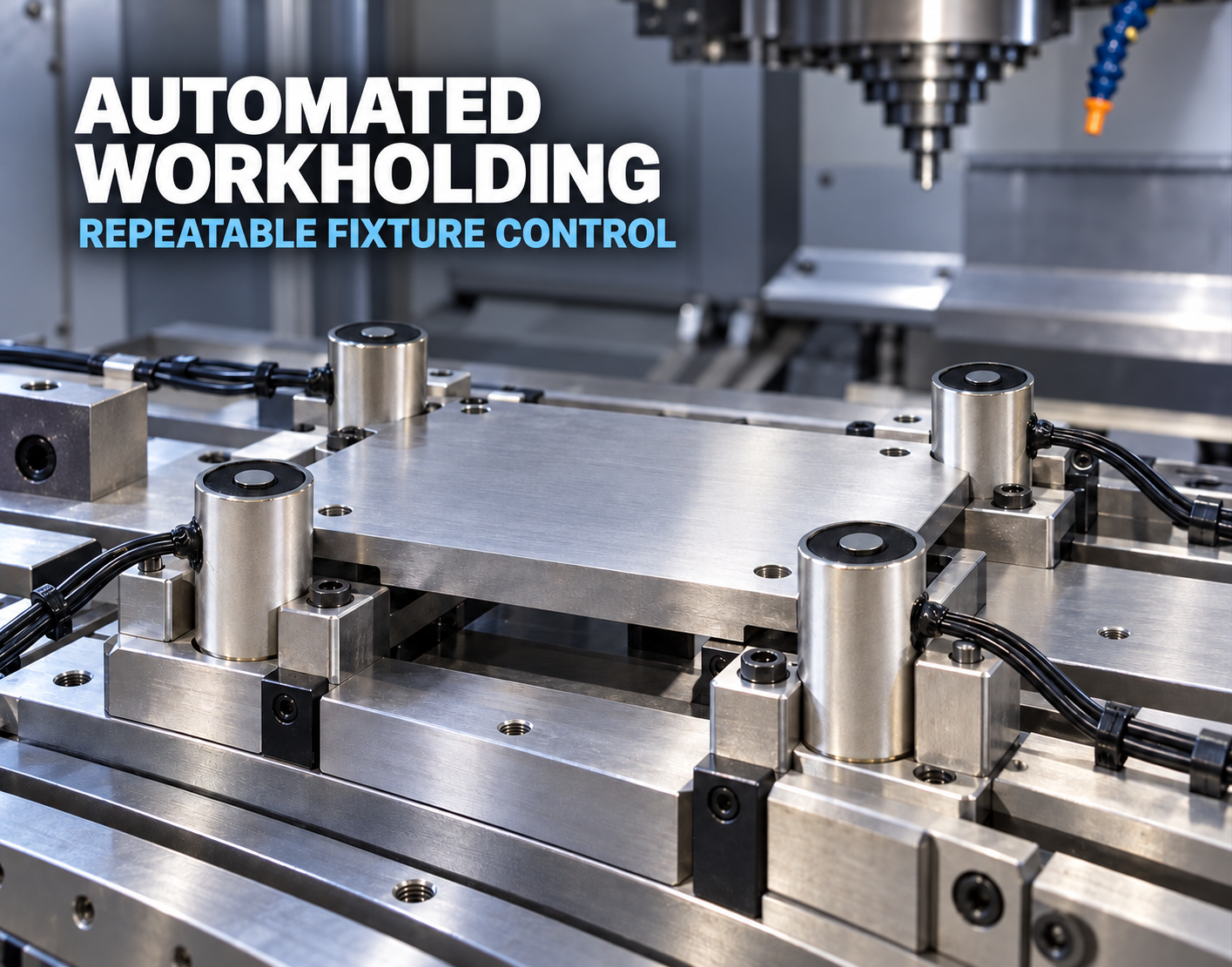

2.The mini round electromagnet need to be energised to develop suction force and deenergised release, widely used for holding of ferromagnetic workpieces during machining or assembly, safety mechanisms, selector devices in textiles machinery, door latching holdback devices and etc.

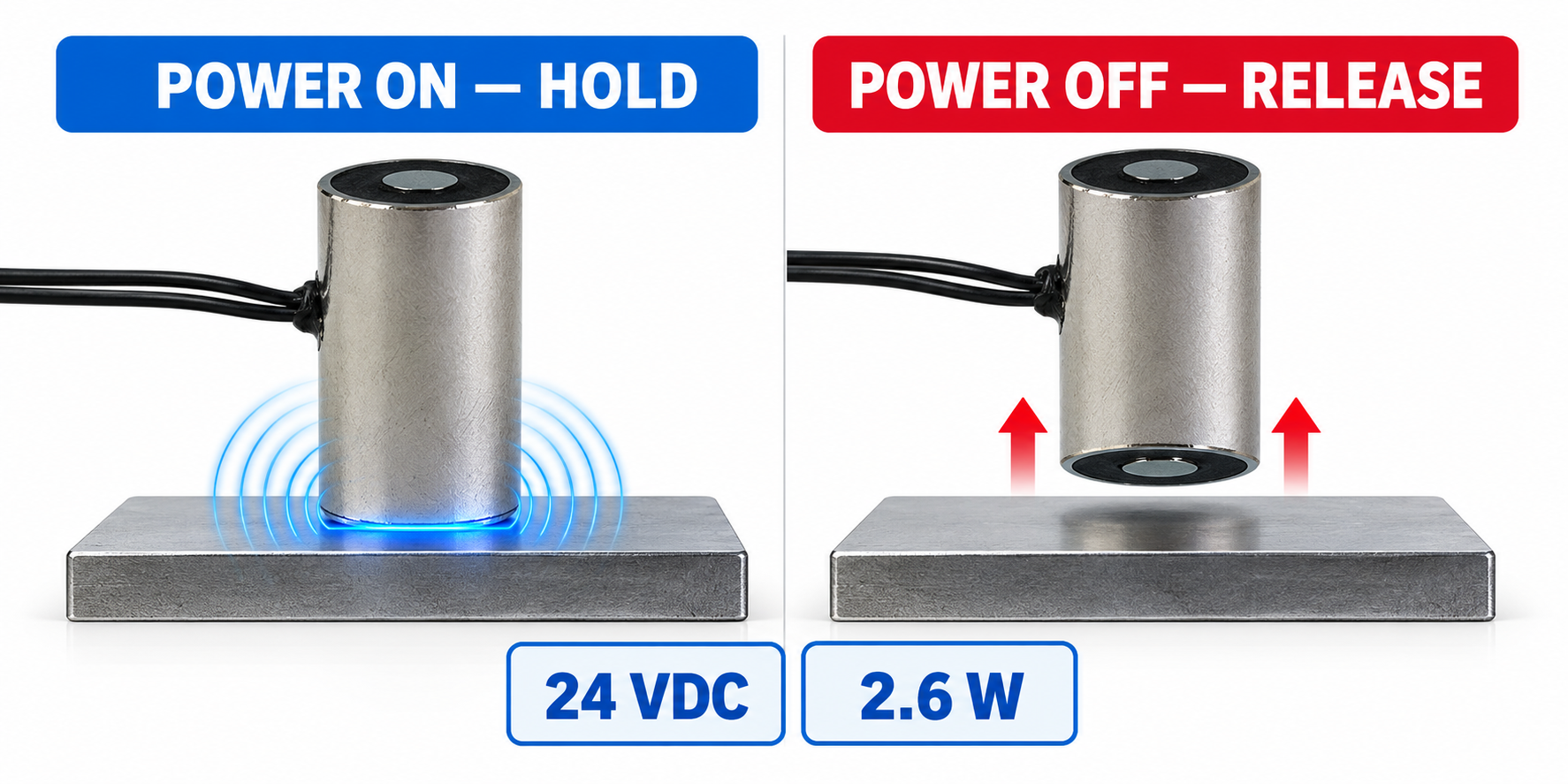

3.Energised-on-holding, and release deenergised. We also offer an optional spring loaded ejector pin to overcome residual magnetism, as well as optional armature plates as a magnetic counterpart for optimum performance.
4.Also offer custom shape and supply power on release mini dc electromagnet.
Advantages
1. Dual 12V/24V DC Universal Voltage Design
The Landa H1632 mini circular electromagnet supports both DC 12V and 24V working voltages, fully compatible with mainstream industrial control systems, automated equipment power supplies and intelligent device circuits. The dual-voltage option provides flexible matching for different project power configurations without extra conversion modules, greatly improving equipment compatibility.
2. Ultra-Low 2.6W Power Saving Performance
Featuring low-power coil optimization design, the rated power is only 2.6W. It realizes low heat generation and low power consumption during long-term continuous energized operation. Effectively reducing equipment energy load and thermal accumulation, this design ensures long-term stable operation and lowers daily operating costs.

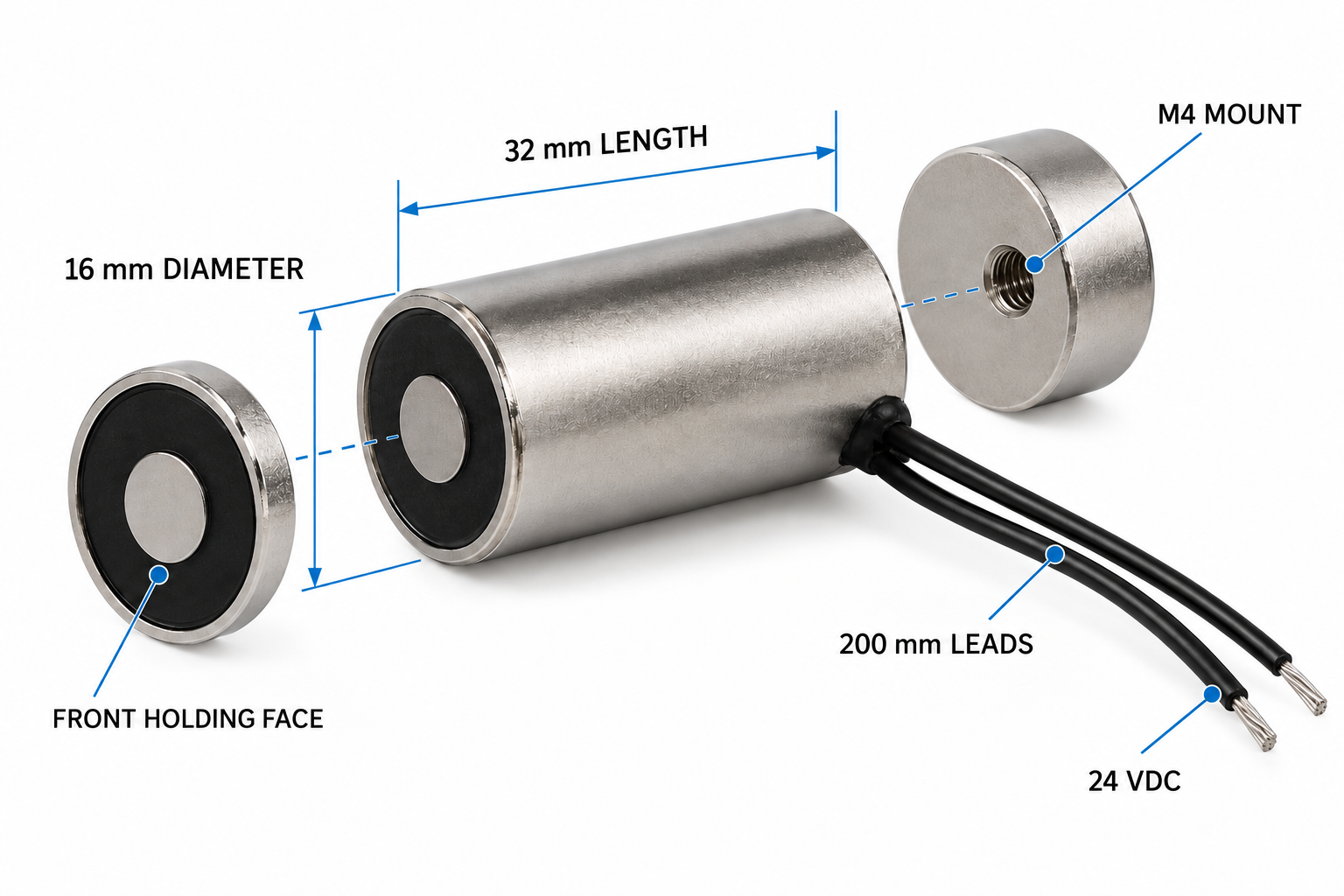

3. Mini 16×32mm Compact Integrated Structure
Adopts ultra-small 16×32mm round mini size, perfectly suitable for narrow installation space and compact automated equipment. The integrated circular structure is exquisite and lightweight, avoiding bulky structure interference, meeting the miniaturization and lightweight assembly demands of modern intelligent equipment.

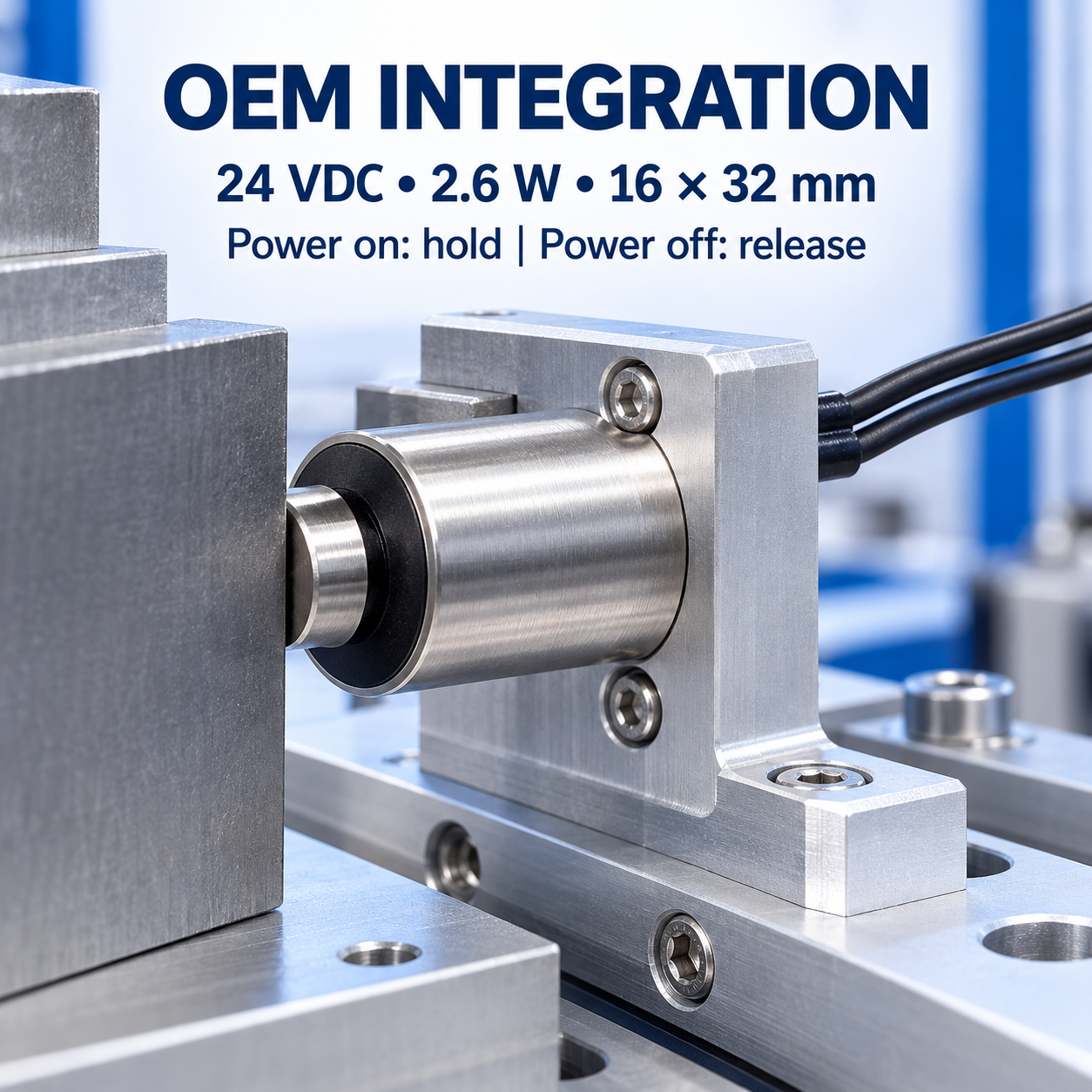

4. Convenient Screw Mounting & Easy Integration
Comes with standard reserved screw mounting structure, supporting fast fixed installation. It allows convenient embedded and fixed assembly on fixtures, mechanical arms and automated equipment shells. The simple installation method saves assembly time and improves overall equipment integration efficiency.
5. Stable Magnetic Output & Industrial Durability
Built with high-purity copper dense winding and optimized closed magnetic circuit, it delivers uniform and stable suction force without magnetic attenuation. Adopting full epoxy sealing and high-insulation treatment, it features excellent dustproof, moisture-proof and anti-vibration performance, adapting to long-term high-frequency cyclic industrial operation.
FAQ
Q1: What working voltages does the H1632 electromagnet support?
This model supports dual DC 12V and 24V working voltages, compatible with most industrial low-voltage power supply and intelligent control systems. Customers can select the corresponding voltage version according to actual equipment needs.
Q2: What is the rated power of this mini round electromagnet?
The standard rated power is 2.6W, featuring ultra-low power consumption. It generates little heat during long-term continuous operation, which is more energy-saving and stable compared with ordinary miniature electromagnets.
Q3: What installation method does H1632 adopt?
It adopts standard screw mounting design with reserved fixing holes. It is easy and fast to install, suitable for fixed assembly of various equipment structures and convenient for later disassembly and maintenance.
Q4: What is the product size of this lifting magnet?
The overall dimension is 16×32mm, belonging to ultra-compact miniature electromagnet. It is specially designed for narrow space installation and miniaturized automated equipment assembly scenarios.
Q5: Can this electromagnet work continuously for a long time?
Yes. With optimized low-heat coil structure and full sealing technology, it supports long-term continuous power-on operation and high-frequency cyclic switching, with stable performance and long service life.
Q6: Does Landa support personalized customization for this model?
Yes. We support customized wiring length, suction parameters, installation structure and special voltage matching to meet diverse personalized matching requirements of non-standard automated equipment.
