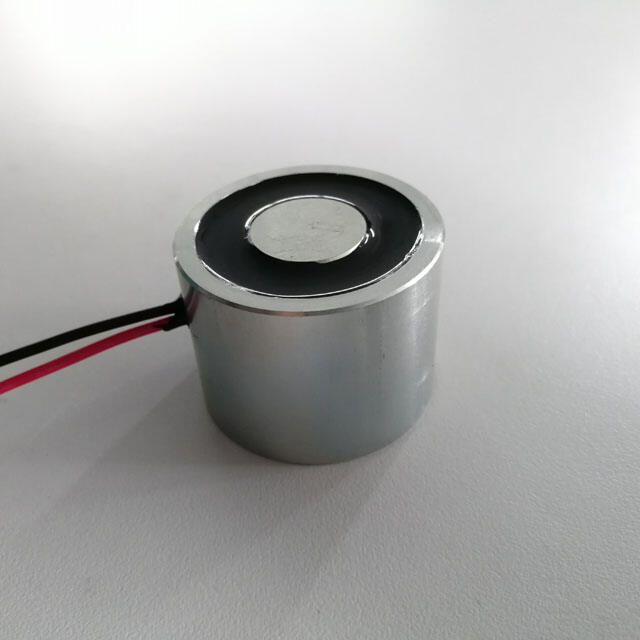

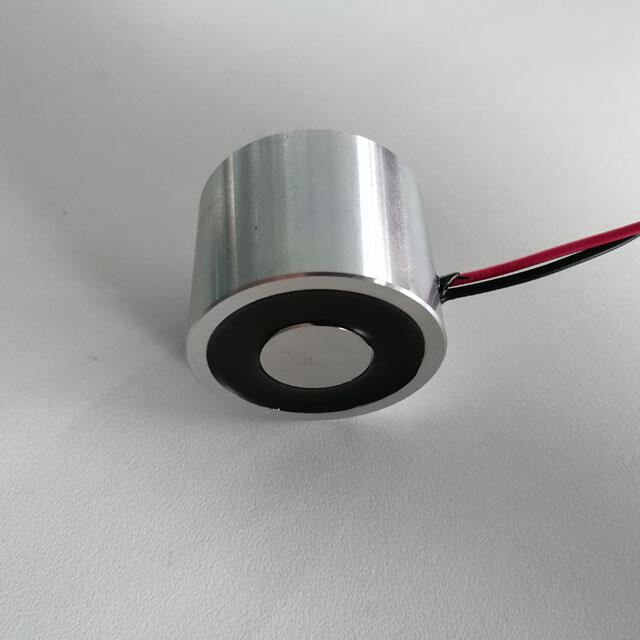

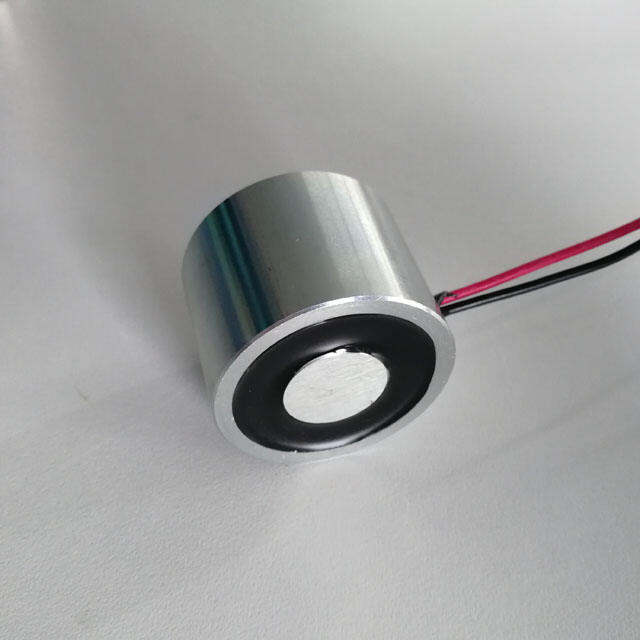

XH4030 Dc 12v 24v 25Kgs/250N Small Permanent Electromagnet

Description:

1.Release type, round shape, mini size, IP65 waterproof, DC power supply, 12v 24v optional, power off electromagnet.

2.The electromagnet not need to be energised to develop suction force, widely used for holding of magnetic workpieces during machining or assembly, safety mechanisms, selector devices in textiles machinery, door latching holdback devices and etc.

3.Energised-on to release. We also offer an optional spring loaded ejector pin to overcome residual magnetism, as well as optional armature plates as a magnetic counterpart for optimum performance.

4.Also offer custom shape for you need

Applications:

XH4030 is a round power-on release permanent electromagnet. It holds firmly when power off and releases instantly when powered on, with no continuous power consumption, ideal for medium load automatic control scenarios.

1. Automatic Workpiece Holding & Discharging

Suitable for medium metal workpiece handling on automated lines. It keeps stable holding without electricity and releases parts quickly upon power input, improving production efficiency and saving energy.

2. Intelligent Equipment Electric Locking

Applied for magnetic locking of equipment protective doors, industrial cabinets and safety baffles. Permanent suction ensures long-term safe locking, avoiding heating and power waste from continuous energization.

3. Pneumatic & Automation Jig Positioning

Used for auxiliary fixing and positioning of automation jigs and tooling fixtures. It maintains accurate positioning in power-off state and enables fast unloading for batch cyclic processing.

4. Sorting and Screening Mechanism

Installed on material sorting equipment for fixed grabbing and automatic releasing of metal parts. Fast response matches high-speed sorting and screening procedures for industrial assembly lines.

5. Mechanical Limit & Baffle Control

Serves as magnetic limit and positioning baffle for automated machinery. It stably locks mechanical positions at power-off and releases instantly for equipment reset and cycle operation.

6. Semi-Automatic Assembly Auxiliary

Widely used in semi-automatic assembly equipment for holding medium-sized hardware and metal components. It features stable performance, low heat generation and long service life for continuous industrial use.

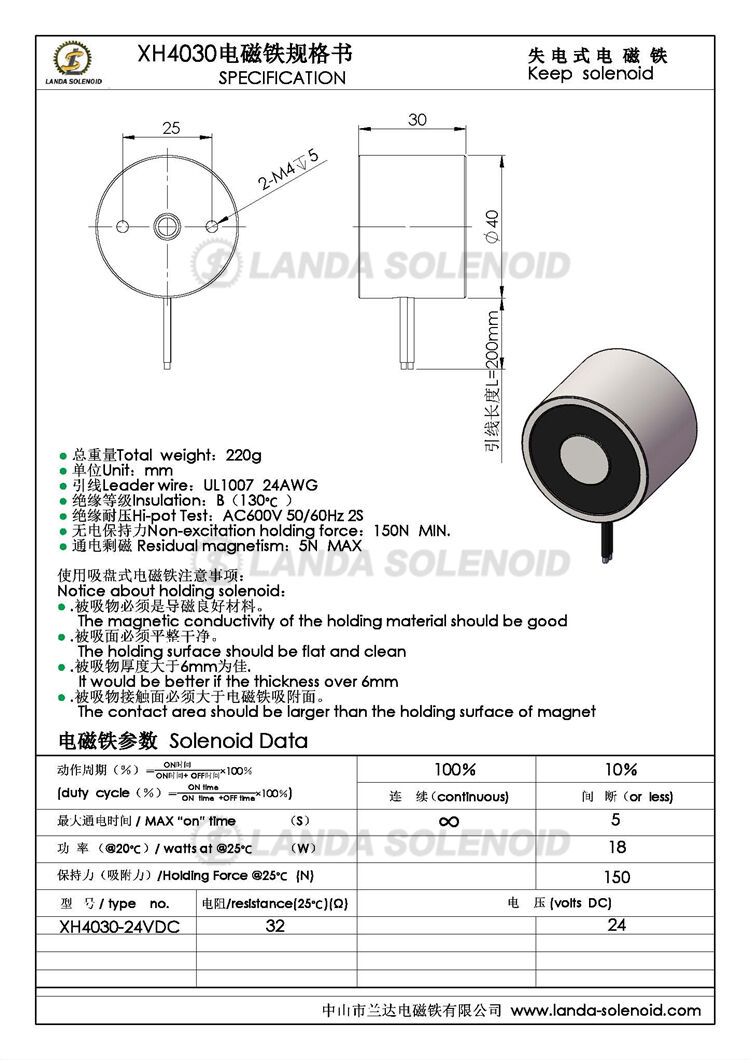

Specifications:

Competitive Advantage:

1. Low Residual Magnetism Optional ejector pins and matching armature plates eliminate residual magnetism, enabling instant, zero-sticking release for precise, repeatable operation.

2. Mini Compact & Stable Suction Space-saving round mini size fits narrow installation spaces, providing concentrated, steady suction to fix workpieces firmly without slipping.

3. IP65 Waterproof & Durable IP65 dustproof and waterproof grade ensures stable performance against moisture and dust, adapting to harsh industrial environments.

4. Strong Compatibility & Customization Standard 12V/24V DC voltage supports most automation systems. Custom shapes and power-on-release functions meet diverse personalized needs.

5. Low Power & Maintenance-Free Featuring sensitive response, low heat generation and low power consumption. Its simple structure ensures long service life and reduces operating costs.

FAQ:

Q1: What is the working principle of XH4030 electromagnet?

It is a power-on-release permanent electromagnet. It holds workpieces tightly when powered off and releases instantly when powered on, featuring ultra-low power consumption.

Q2: What is the rated holding force of this model?

This round electromagnet provides 25kg stable holding force. It is designed for medium-load adsorption and fixing of flat ferromagnetic metal workpieces.

Q3: What voltage options does it support?

It supports universal 12V and 24V DC voltage. Both versions have identical suction force and stable performance for various automation systems.

Q4: What are the core advantages of this product?

It requires no continuous power for holding, effectively reducing heat generation and energy consumption. It offers fast response and long cyclic service life.

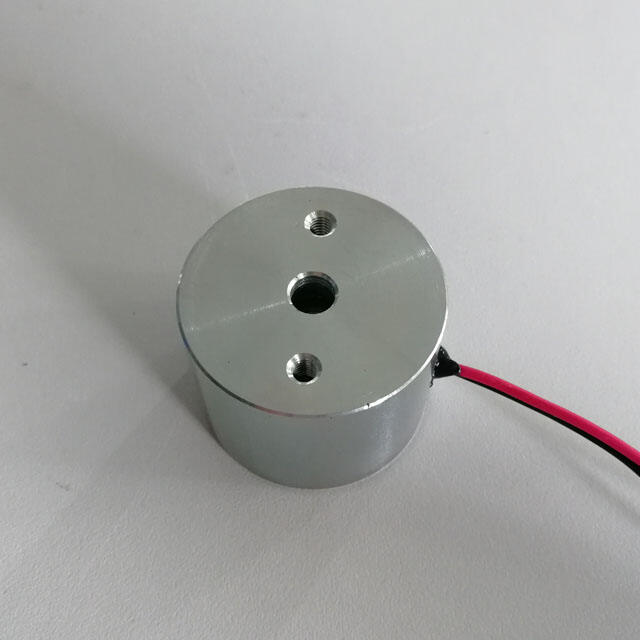

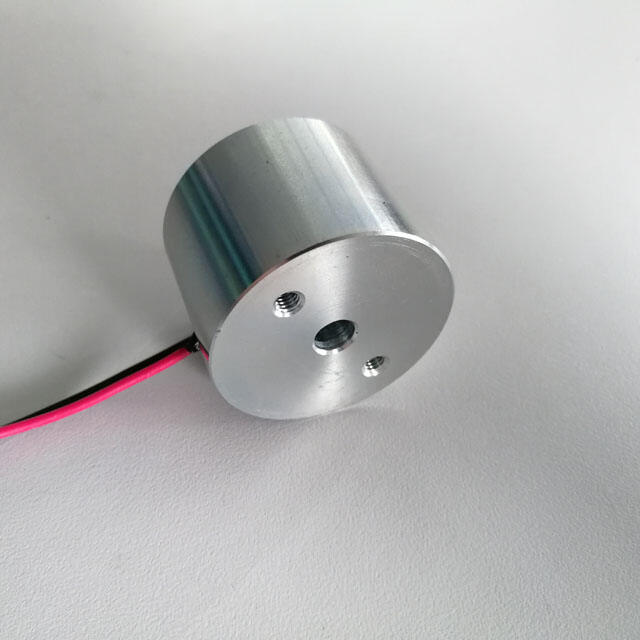

Q5: What installation method does it adopt?

With compact round structure and reserved mounting holes, it enables simple, firm and space-saving installation for automated machinery and jigs.

Q6: About the product safety and durability?

Made of high-quality iron and magnetic coil, it ensures stable magnetic performance. Class B insulation guarantees safe and reliable long-term industrial operation.
