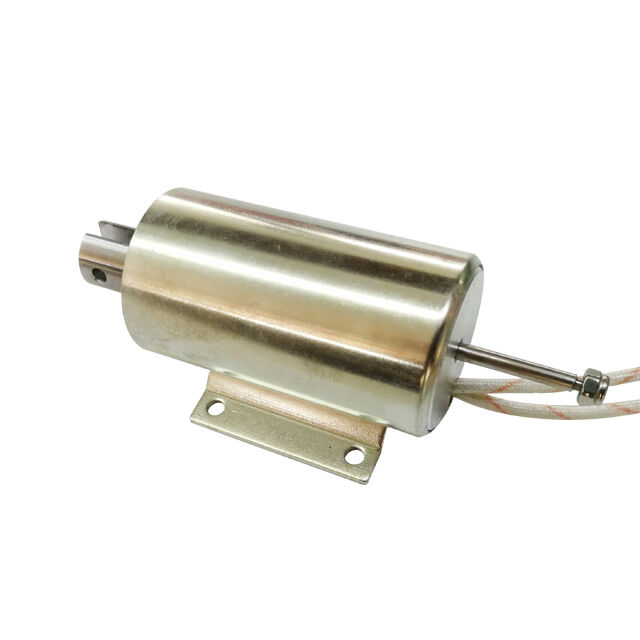

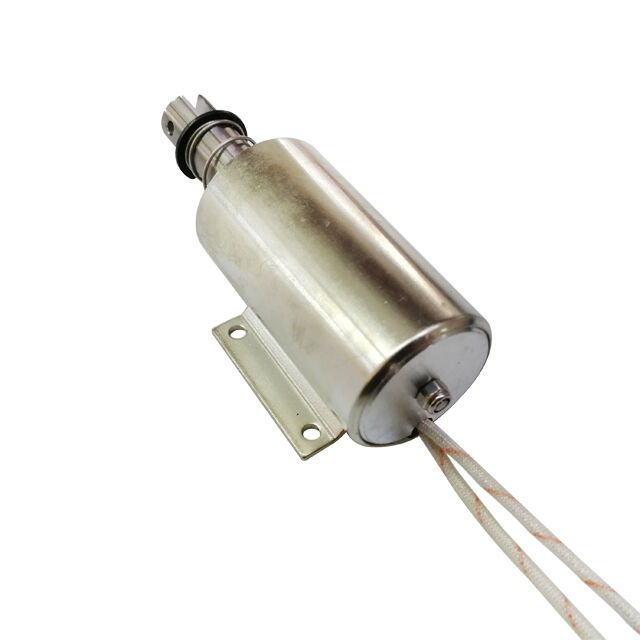

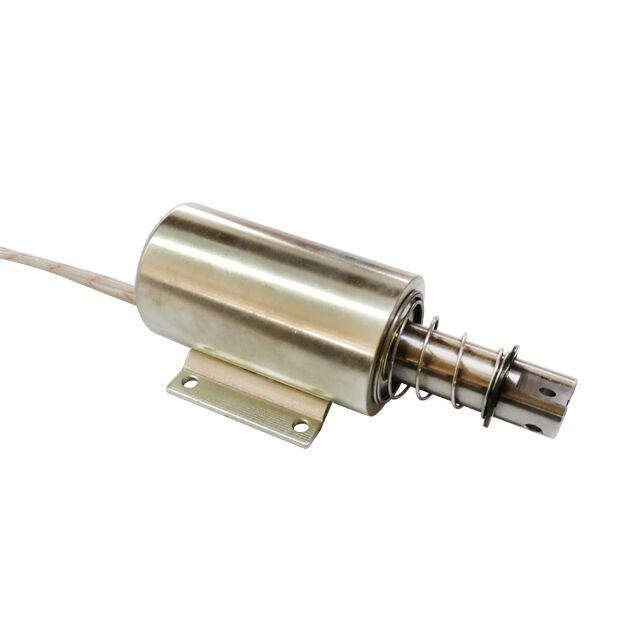

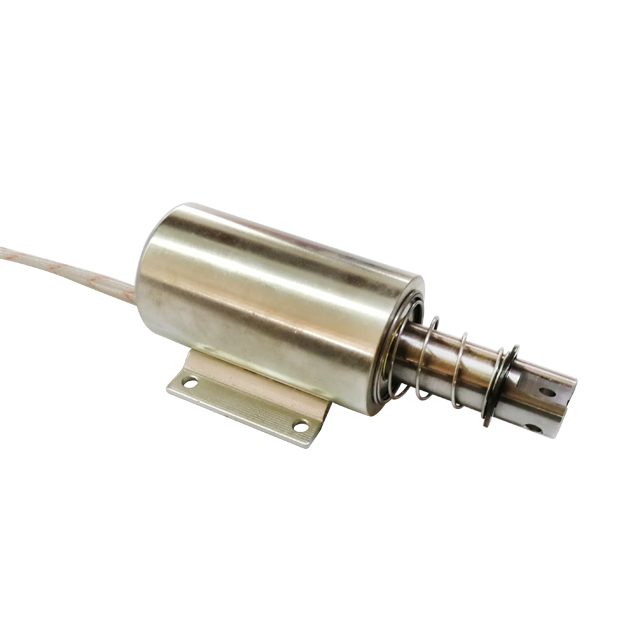

TU3257 Tubular Solenoid Push Pull 15mm Long Stroke Solenoids

Description:

1. Push-pull type, linear motion, plunger spring reset, DC solenoid electromagnet.

2. DC Solenoid electromagnets are mainly used in vending machines, transportation equipment, office equipment, household appliances, machinery, etc.

3. The solenoid works externally by pushing and pulling the plunger, and when energized, it works by pushing and pulling the plunger to connect the object.

4. Open frame structure with mounting holes, accepted custom as you needed.

Applications:

1. Long-Stroke Automated Linear Actuation

Equipped with 0-15mm long adjustable stroke, this tubular solenoid provides stable and flexible push-pull linear motion, perfectly satisfying long-travel driving demands for medium and heavy automation equipment.

2. Industrial Electromagnetic Lock Control

It acts as a core driving component for industrial safety locks and equipment latches. Fast response and powerful thrust ensure stable and repeated locking and unlocking operation.

3. Precision Mechanical Positioning & Reset

Ideal for positioning, ejection and reset procedures of precision instruments and testing machinery. It delivers low-deviation linear movement for high-precision processing.

4. Automated Assembly Line Actuation

Suitable for clamping, shifting and discharging workpieces on assembly lines. 10%-100% full duty cycle adapts to intermittent jogging and continuous cyclic production.

5. Medium & High Load Mechanical Driving

With 12.5-125W wide adjustable power range, it supports diversified high-intensity working modes and meets medium to heavy load driving requirements for industrial automation modules.

6. Micro Valve & Switch Control System

Reliably drives opening and closing of industrial micro valves and mechanical switches. The integrated tubular structure reduces magnetic leakage, ensuring stable and long-lasting operation.

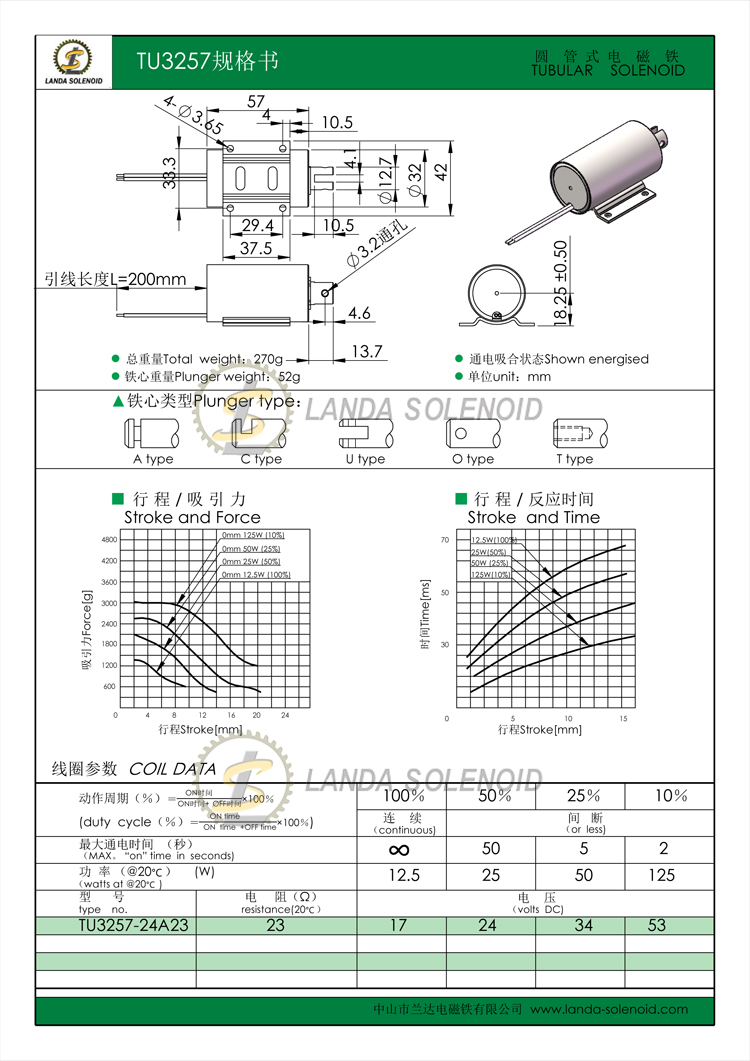

Specifications:

Competitive Advantage:

1. Low Residual Magnetism Optional ejector pins and matching armature plates eliminate residual magnetism, enabling instant, zero-sticking release for precise, repeatable operation.

2. Mini Compact & Stable Suction Space-saving round mini size fits narrow installation spaces, providing concentrated, steady suction to fix workpieces firmly without slipping.

3. IP65 Waterproof & Durable IP65 dustproof and waterproof grade ensures stable performance against moisture and dust, adapting to harsh industrial environments.

4. Strong Compatibility & Customization Standard 12V/24V DC voltage supports most automation systems. Custom shapes and power-on-release functions meet diverse personalized needs.

5. Low Power & Maintenance-Free Featuring sensitive response, low heat generation and low power consumption. Its simple structure ensures long service life and reduces operating costs.

FAQ:

Q1: What are the core features of TU3257 solenoid?

TU3257 is a Landa push-pull tubular solenoid with 0-15mm long stroke, 12.5-125W adjustable power and 10%-100% duty cycle for versatile automated control.

Q2: What voltage does this tubular solenoid support?

It supports universal 12V and 24V DC voltage, compatible with most standard industrial power supply and automation control systems.

Q3: What working modes can this solenoid adapt to?

It covers a full 10%-100% duty cycle, supporting both short-time intermittent operation and long-term continuous working scenarios.

Q4: What are the advantages of tubular structure?

The integrated tubular design optimizes magnetic circuit, reduces magnetic loss, provides faster response, greater thrust and better heat dissipation performance.

Q5: What material and safety grade does it adopt?

It is made of high-quality iron and dense magnetic coil, equipped with Class B insulation to ensure safe, high-temperature resistant and stable long-term operation.

Q6: What industries is this product suitable for?

It is widely used for automated assembly equipment, precision instruments, electromagnetic locks, valve control and medium-heavy duty mechanical automation.
