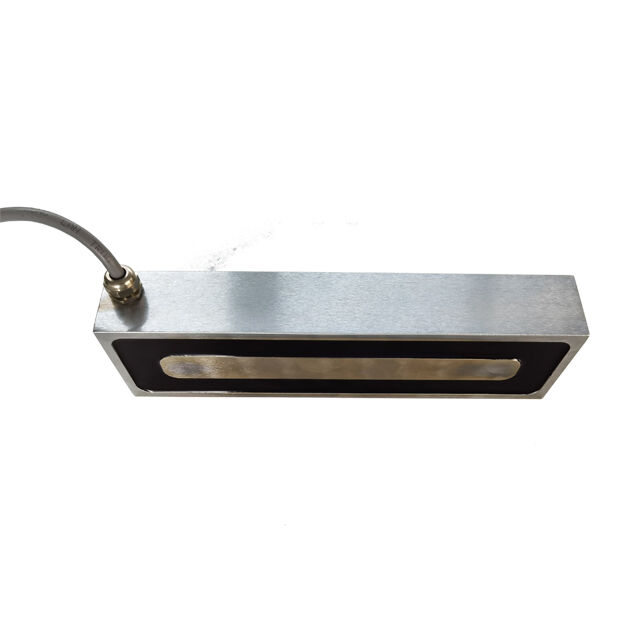

H2507040 Holding Force 350Kgs Powerful Lifting Magnets Dc 24v 36v Rectangular Electromagnet

Description:

1.Holding type, rectangular shape, mini size, IP65 waterproof, DC power supply, 12v 24v optional mini holding electromagnet.

2.The rectangular electromagnet need to be energised to develop suction force, widely used for holding of magnetic workpieces during machining or assembly, safety mechanisms, selector devices in textiles machinery, door latching holdback devices and etc.

3.Energised-on-holding, and release deenergised. We also offer an optional spring loaded ejector pin to overcome residual magnetism, as well as optional armature plates as a magnetic counterpart for optimum performance.

4.Also offer custom shape and energise to release square electromagnet

Applications:

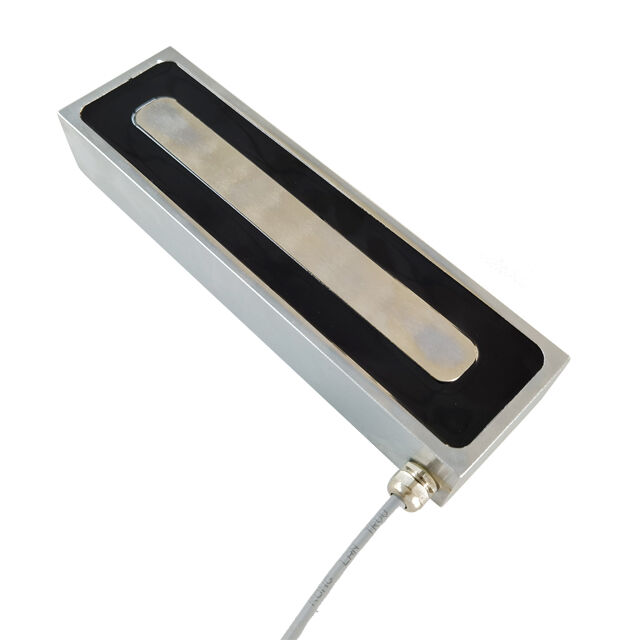

Rectangular sucker electromagnets adopt a large flat suction surface with even magnetic force, suitable for heavy-load adsorption, fixing and handling in industrial automation.

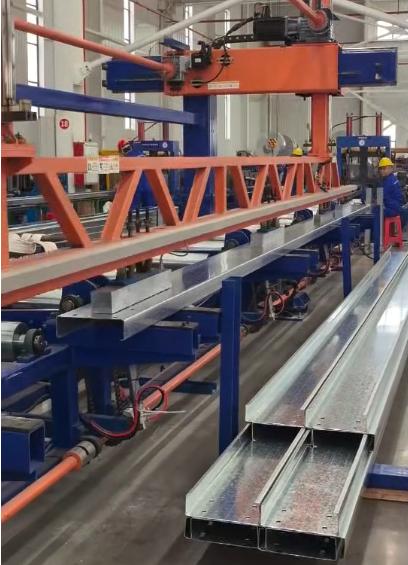

1. Heavy-Duty Workpiece Handling

It matches gantry robots and handling equipment to stably grip large and long metal workpieces. The rectangular surface provides balanced suction to prevent slipping during heavy-load transfer.

2. Precision Machining Workpiece Fixing

It acts as a magnetic fixture for milling, grinding and cutting. It firmly secures long metal plates and strips without deformation, enabling precise machining and fast unloading.

3. Industrial Mold & Tool Positioning

It is used for positioning and fixing long molds and stamping parts. Large-area suction resists vibration and displacement, stabilizing machining accuracy during continuous operation.

4. Automated Mechanical Locking System

It supports power-on locking and power-off releasing for industrial baffles and protective covers. It runs stably with low noise for frequent switching and long-time holding.

5. Conveyor Line Iron Impurity Removal

Installed on conveyor lines, it adsorbs iron filings and ferromagnetic impurities in raw materials. It purifies materials and reduces abrasion of follow-up processing equipment.

6. Automated Packaging and Hardware Sorting

It is widely used in packaging and sorting lines for gripping strip hardware and metal parts. It adapts to high-speed cyclic operation to improve automated assembly efficiency.

Specifications:

Competitive Advantage:

1. Low Residual Magnetism Optional ejector pins and matching armature plates eliminate residual magnetism, enabling instant, zero-sticking release for precise, repeatable operation.

2. Mini Compact & Stable Suction Space-saving round mini size fits narrow installation spaces, providing concentrated, steady suction to fix workpieces firmly without slipping.

3. IP65 Waterproof & Durable IP65 dustproof and waterproof grade ensures stable performance against moisture and dust, adapting to harsh industrial environments.

4. Strong Compatibility & Customization Standard 12V/24V DC voltage supports most automation systems. Custom shapes and power-on-release functions meet diverse personalized needs.

5. Low Power & Maintenance-Free Featuring sensitive response, low heat generation and low power consumption. Its simple structure ensures long service life and reduces operating costs.

FAQ:

Q1: What are the core specifications of H2507040 electromagnet?

This Landa rectangular holding-type electromagnet supports 12V/24V DC voltage. It features 40W power, 2500N (250kg) ultra-strong holding force, Class B insulation and 2-M10 mounting threads with 20mm depth.

Q2: What voltage versions are available for this electromagnet?

It provides 12V and 24V dual DC voltage options. Both specifications feature identical structure and suction performance, compatible with most industrial DC power supplies.

Q3: What is the maximum load capacity of this product?

It delivers a rated 2500N (250kg) holding force. The large flat rectangular surface provides even and powerful magnetic suction for heavy-duty workpiece fixing and handling.

Q4: What is the working mode and main advantage?

It adopts power-on adsorption and power-off release mode. Professionally designed for continuous holding work, it operates stably under long energization and frequent switching conditions.

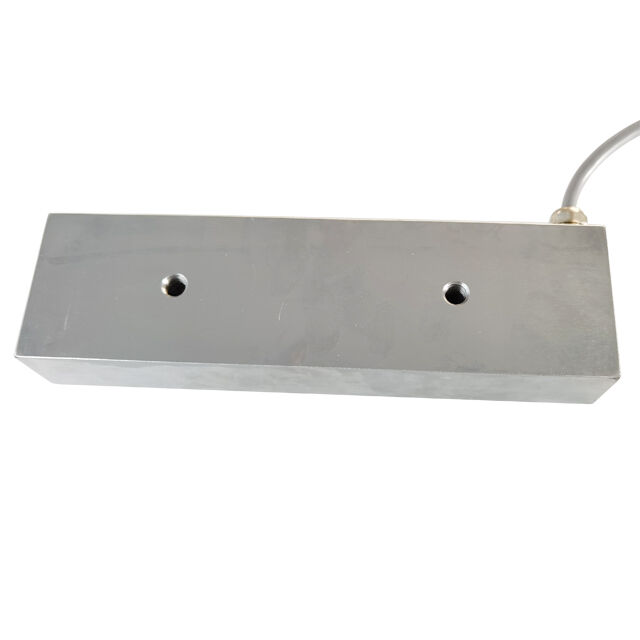

Q5: How to install the H2507040 electromagnet?

It is fitted with two M10 threaded holes with 20mm depth. The robust rectangular structure enables solid and stable installation for heavy-load automation equipment.

Q6: What are the product materials and safety properties?

It is made of premium iron and high-performance magnetic coils for stable magnetism and long service life. Class B insulation ensures safe and reliable long-term industrial operation.
