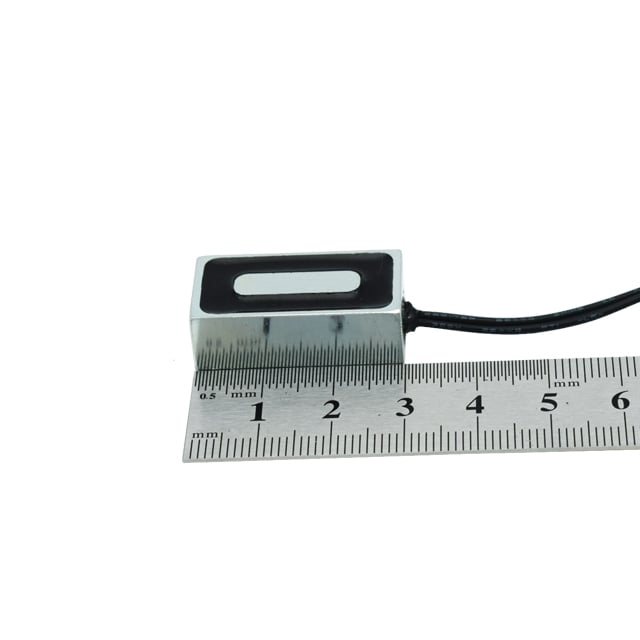

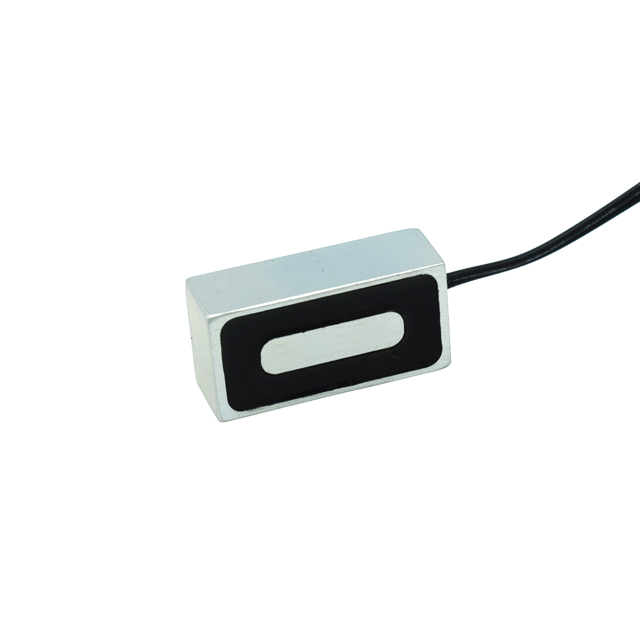

Landa H301510 35N Mini Electromagnet 12V/24V DC Rectangular 30x15x10mm Cast Iron Side/Base Mounting Lifting Magnet

Description:

1.Holding type, rectangular shape, mini size, IP65 waterproof, DC power supply, 12v 24v optional mini holding electromagnet.

2.The rectangular electromagnet need to be energised to develop suction force, widely used for holding of magnetic workpieces during machining or assembly, safety mechanisms, selector devices in textiles machinery, door latching holdback devices and etc.

3.Energised-on-holding, and release deenergised. We also offer an optional spring loaded ejector pin to overcome residual magnetism, as well as optional armature plates as a magnetic counterpart for optimum performance.

4.Also offer custom shape and energise to release square electromagnet

Applications:

Rectangular sucker electromagnets adopt a large flat suction surface with even magnetic force, suitable for heavy-load adsorption, fixing and handling in industrial automation.

1. Heavy-Duty Workpiece Handling

It matches gantry robots and handling equipment to stably grip large and long metal workpieces. The rectangular surface provides balanced suction to prevent slipping during heavy-load transfer.

2. Precision Machining Workpiece Fixing

It acts as a magnetic fixture for milling, grinding and cutting. It firmly secures long metal plates and strips without deformation, enabling precise machining and fast unloading.

3. Industrial Mold & Tool Positioning

It is used for positioning and fixing long molds and stamping parts. Large-area suction resists vibration and displacement, stabilizing machining accuracy during continuous operation.

4. Automated Mechanical Locking System

It supports power-on locking and power-off releasing for industrial baffles and protective covers. It runs stably with low noise for frequent switching and long-time holding.

5. Conveyor Line Iron Impurity Removal

Installed on conveyor lines, it adsorbs iron filings and ferromagnetic impurities in raw materials. It purifies materials and reduces abrasion of follow-up processing equipment.

6. Automated Packaging and Hardware Sorting

It is widely used in packaging and sorting lines for gripping strip hardware and metal parts. It adapts to high-speed cyclic operation to improve automated assembly efficiency.

Specifications:

Competitive Advantage:

1. Low Residual Magnetism Optional ejector pins and matching armature plates eliminate residual magnetism, enabling instant, zero-sticking release for precise, repeatable operation.

2. Mini Compact & Stable Suction Space-saving round mini size fits narrow installation spaces, providing concentrated, steady suction to fix workpieces firmly without slipping.

3. IP65 Waterproof & Durable IP65 dustproof and waterproof grade ensures stable performance against moisture and dust, adapting to harsh industrial environments.

4. Strong Compatibility & Customization Standard 12V/24V DC voltage supports most automation systems. Custom shapes and power-on-release functions meet diverse personalized needs.

5. Low Power & Maintenance-Free Featuring sensitive response, low heat generation and low power consumption. Its simple structure ensures long service life and reduces operating costs.

FAQ：

Q1: What are the basic specifications of H301510 electromagnet?

This Landa rectangular holding-type electromagnet supports 12V/24V DC voltage. It features 2W low power consumption, 35N (3.5kg) holding force, Class B insulation, and 2-M4 mounting threads with 8mm depth.

Q2: Which voltage versions are available for this product?

It provides two DC voltage options: 12V and 24V. Both versions have identical size, suction force and power performance for diverse industrial power supply needs.

Q3: What is the holding capacity of this rectangular electromagnet?

It delivers a stable 35N (3.5kg) rated holding force. The flat rectangular suction surface provides even and gentle adsorption, ideal for fixing and handling small light ferromagnetic workpieces.

Q4: What is its working mode and core advantage?

It adopts standard power-on adsorption and power-off release working mode. With only 2W low power consumption, it supports long-term energized holding and frequent switching operation stably.

Q5: How to install the H301510 electromagnet?

It is designed with two M4 threaded holes of 8mm depth. The compact rectangular structure enables quick, firm and space-saving installation for small automation equipment.

Q6: What about the product material and safety performance?

Made of premium iron and high-density magnetic coil, it ensures stable magnetic performance and long service life. Class B insulation guarantees safe and reliable daily industrial operation.
