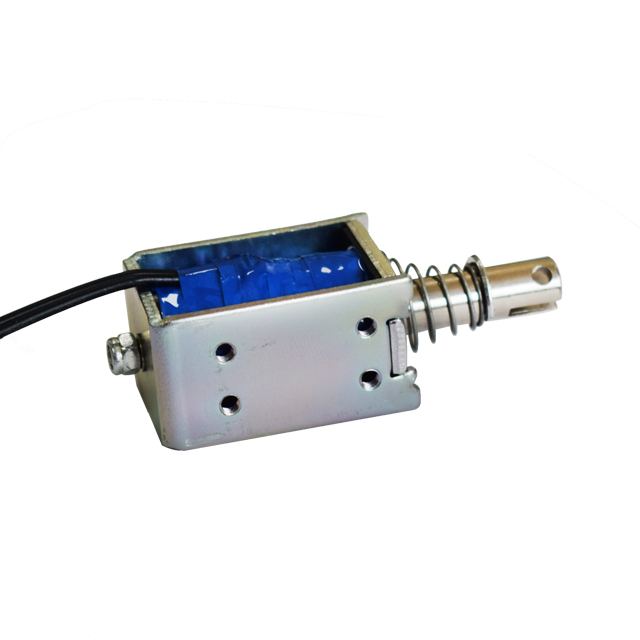

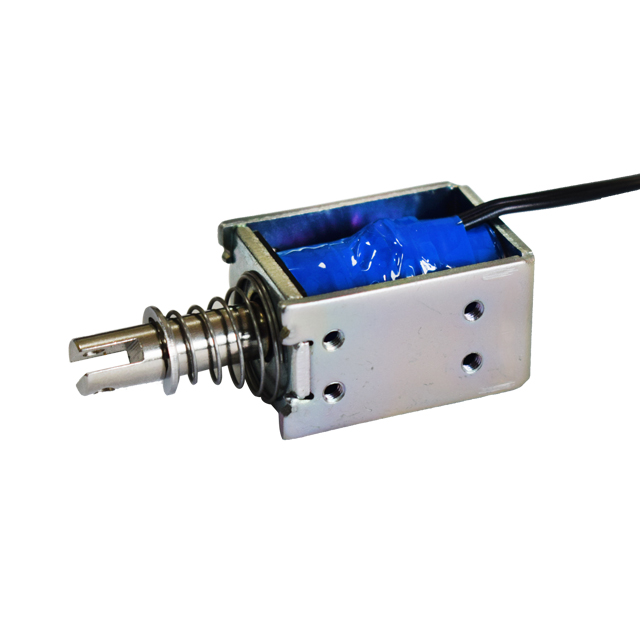

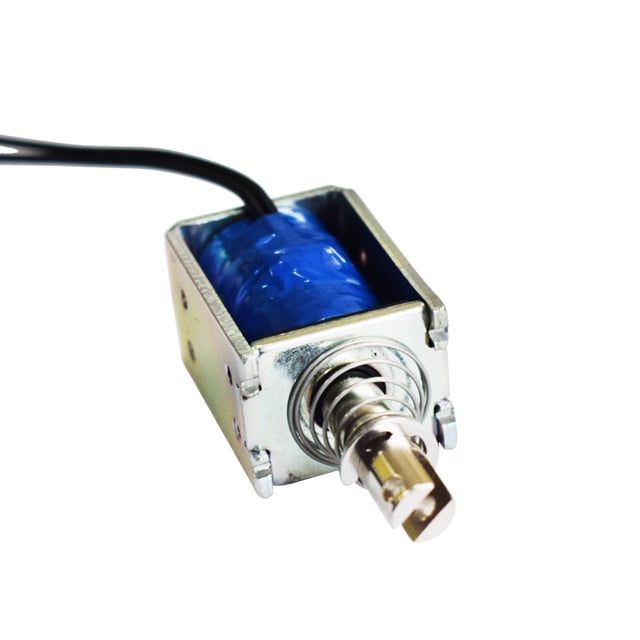

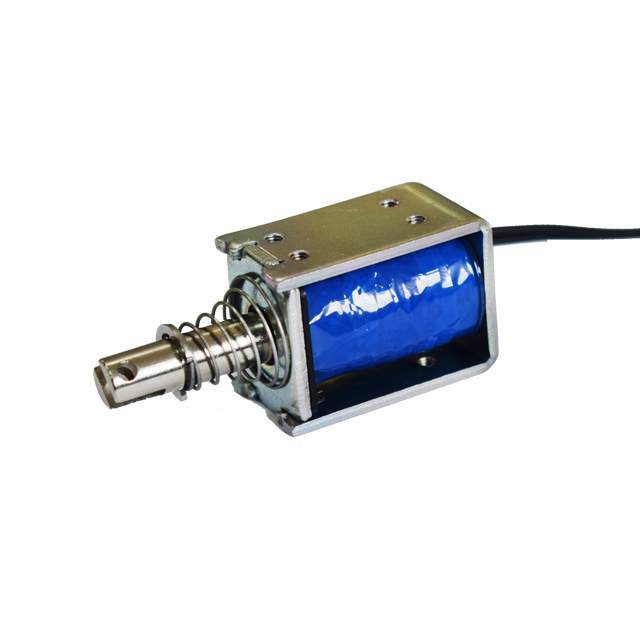

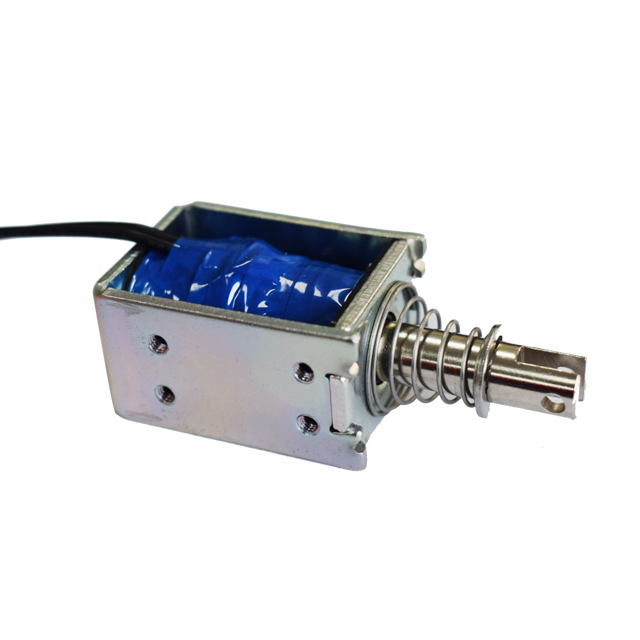

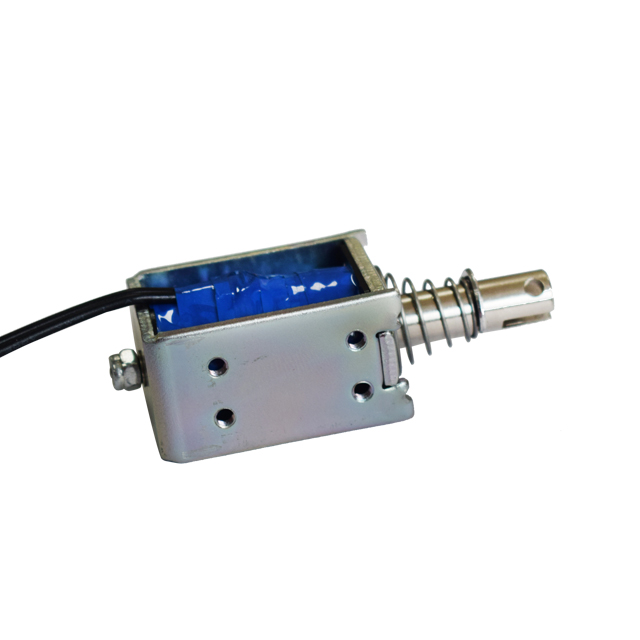

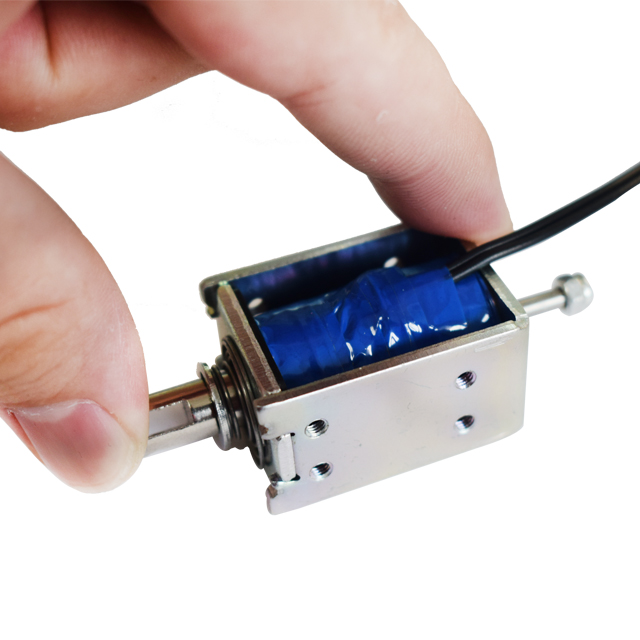

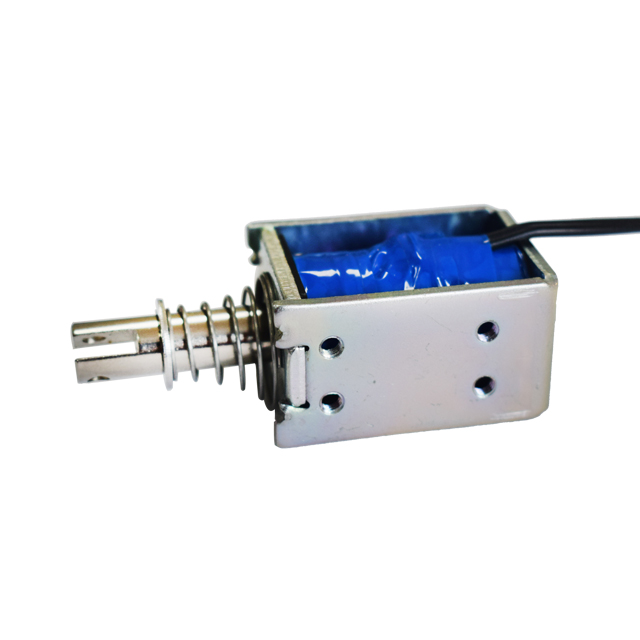

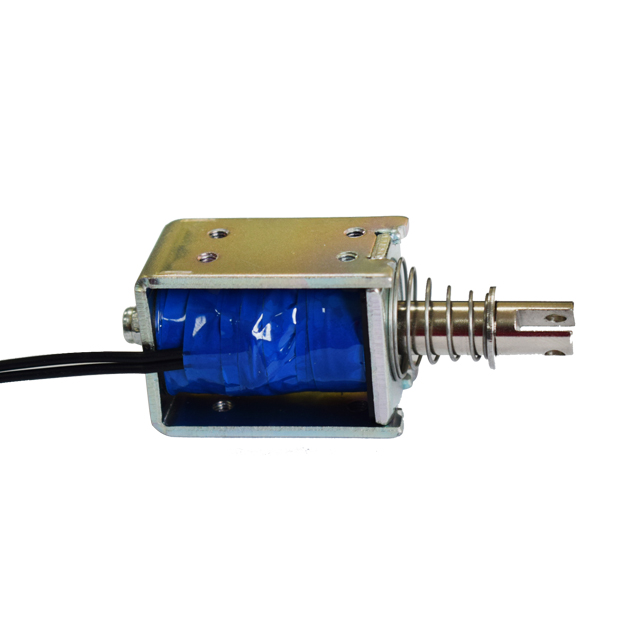

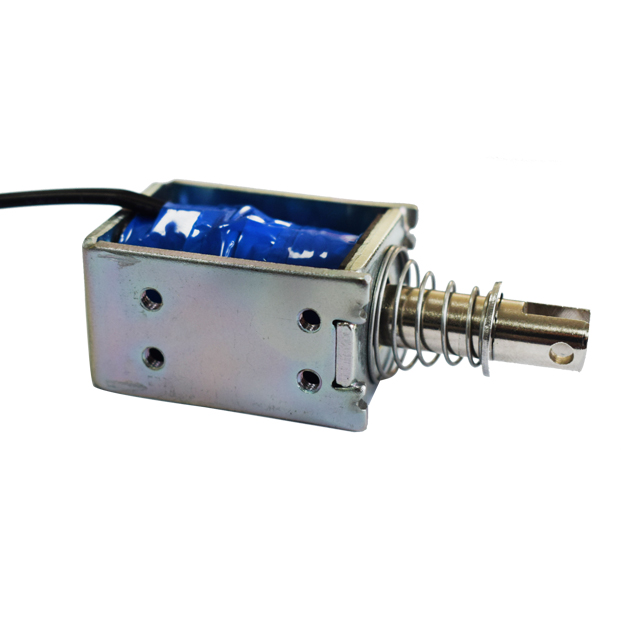

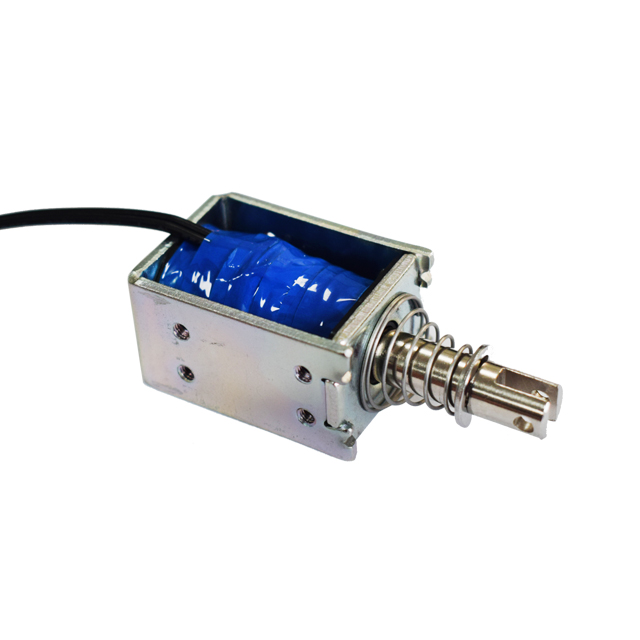

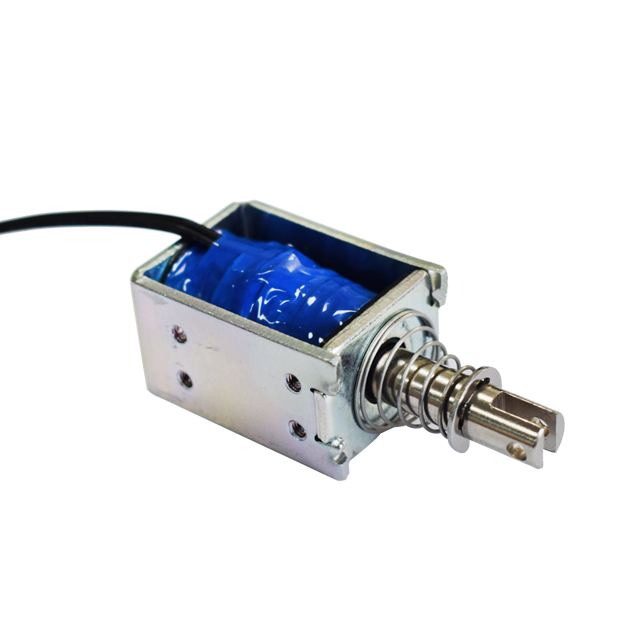

Dc 12v 24v Open Frame Solenoid SQ0837 Stroke 8mm Push Pull Electromagnet Solenoid

Description:

1. Push-pull type, linear motion, plunger spring reset, DC solenoid electromagnet.

2. DC Solenoid electromagnets are mainly used in vending machines, transportation equipment, office equipment, household appliances, machinery, etc.

3. The solenoid works externally by pushing and pulling the plunger, and when energized, it works by pushing and pulling the plunger to connect the object.

4. Open frame structure with mounting holes, accepted custom as you needed.

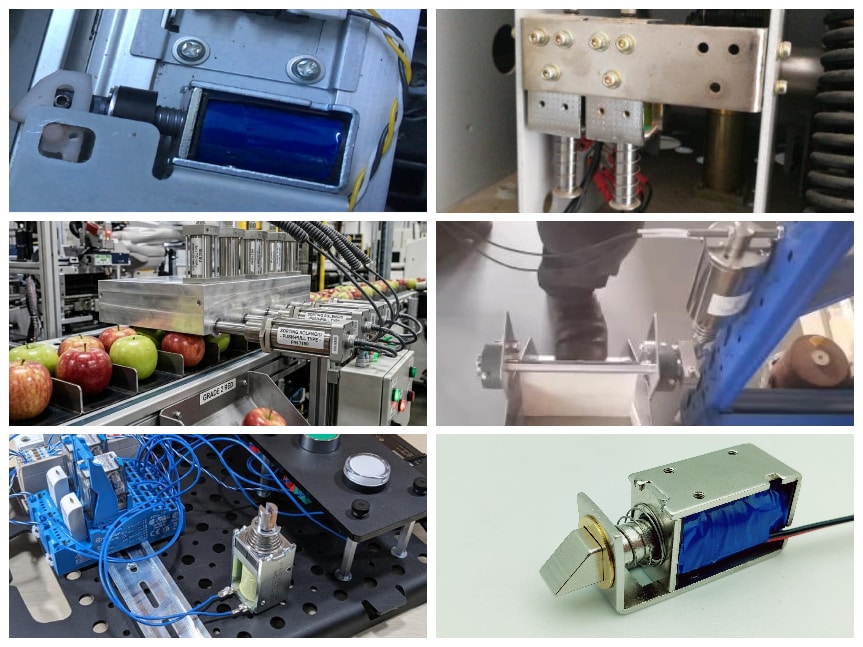

Applications:

1. Mini Automated Push-Pull Mechanism

This 8mm stroke open frame solenoid provides precise linear push-pull movement for small automated machinery, supporting stable and fast repetitive motion.

2. Intelligent Electromagnetic Lock Control

It serves as the driving unit for mini electric locks and safety latches, realizing reliable locking and unlocking actions in smart devices and equipment enclosures.

3. Precision Instrument Positioning & Reset

Used in testing instruments and precision equipment for tiny positioning, ejection and reset operations, ensuring accurate and consistent micro motion control.

4. Small Assembly Line Actuation

Suitable for clamping, ejecting and shifting small parts on automated assembly lines. 10–100% adjustable duty cycle adapts to intermittent and continuous work.

5. Smart Home & Consumer Appliance Drive

It acts as an executive drive for various smart home devices and small appliances, with 3.5–35W wide power range to fit different load requirements.

6. Mini Valve and Mechanical Switch Control

Applied to control miniature valves, micro switches and small mechanical actuators. The open-frame design offers good heat dissipation and stable long-term operation.

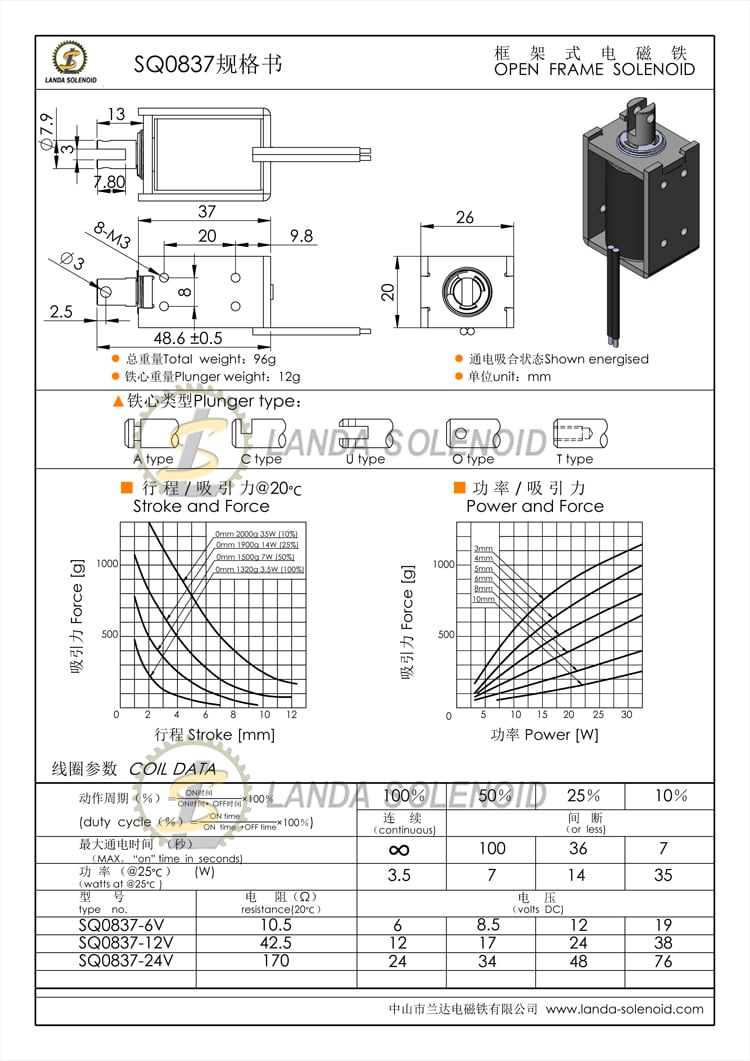

Specifications:

Competitive Advantage:

1. Low Residual Magnetism Optional ejector pins and matching armature plates eliminate residual magnetism, enabling instant, zero-sticking release for precise, repeatable operation.

2. Mini Compact & Stable Suction Space-saving round mini size fits narrow installation spaces, providing concentrated, steady suction to fix workpieces firmly without slipping.

3. IP65 Waterproof & Durable IP65 dustproof and waterproof grade ensures stable performance against moisture and dust, adapting to harsh industrial environments.

4. Strong Compatibility & Customization Standard 12V/24V DC voltage supports most automation systems. Custom shapes and power-on-release functions meet diverse personalized needs.

5. Low Power & Maintenance-Free Featuring sensitive response, low heat generation and low power consumption. Its simple structure ensures long service life and reduces operating costs.

FAQ:

Q1: What is the working type and stroke of SQ0837 solenoid?

It is an open-frame push-pull solenoid with an adjustable stroke of 0–8mm for precise linear motion control.

Q2: What voltage options are available?

It supports 12V and 24V DC input, both offering stable push-pull performance for industrial and smart device applications.

Q3: What is the power and duty cycle range?

It features 3.5W–35W adjustable power and 10%–100% duty cycle, supporting both intermittent and continuous operation.

Q4: What are the advantages of open-frame structure?

The open frame ensures excellent heat dissipation, low temperature rise and high stability for long-cycle working conditions.

Q5: What is the installation specification?

It adopts 8-M3 threaded mounting holes, allowing flexible, firm and multi-angle installation for compact automation equipment.

Q6: What about material and safety performance?

Made of high-quality iron and magnetic coil, it provides stable output. Class B insulation ensures safe and reliable long-term operation.
