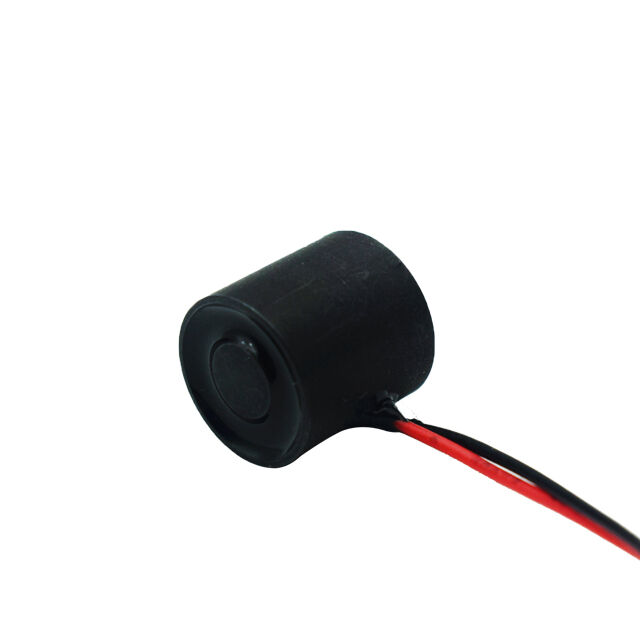

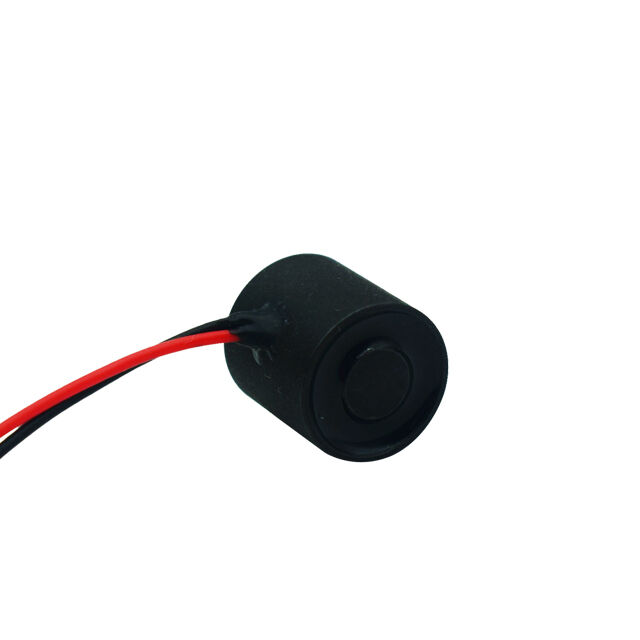

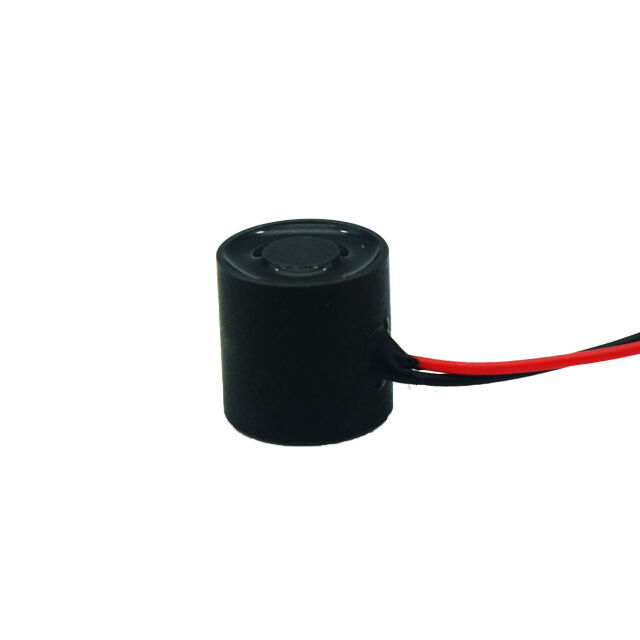

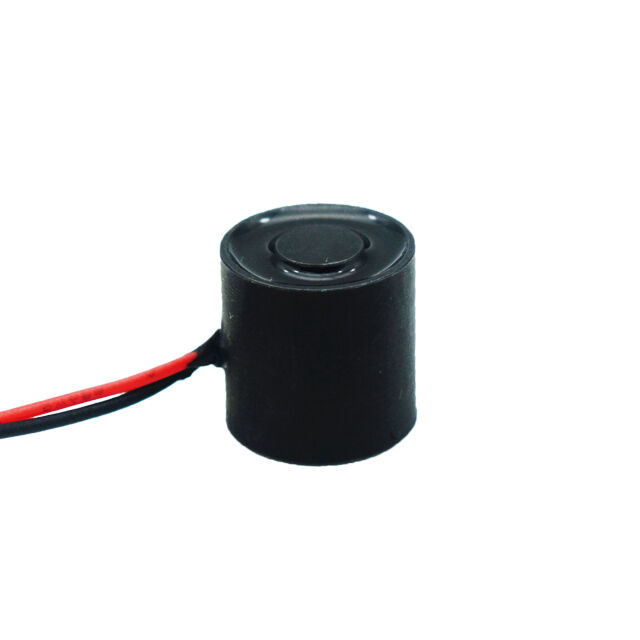

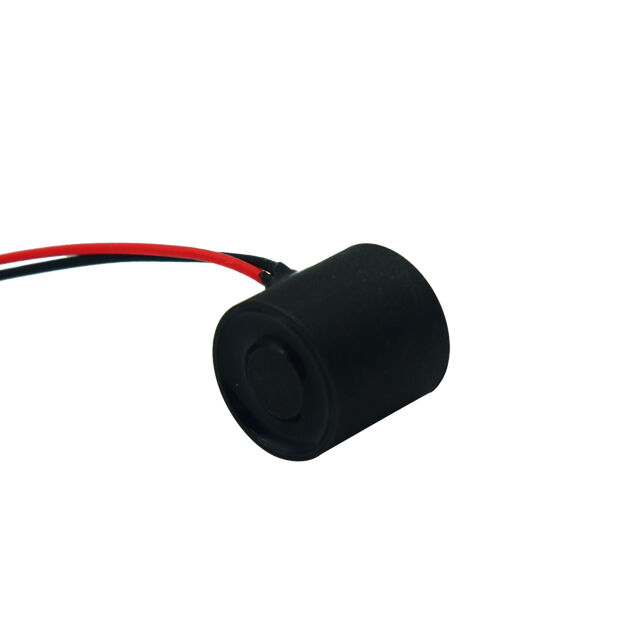

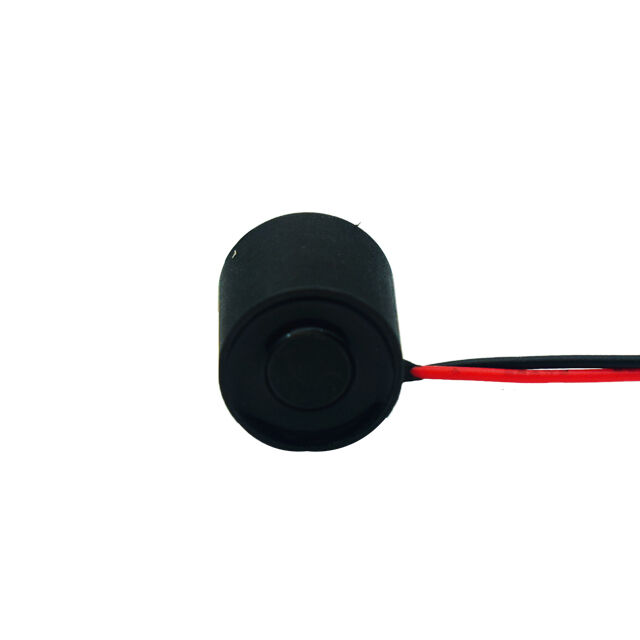

XH1212 12v 24v Dc Power on to Release Mini Electromagnet 1kg/10N Small Lifting Permanent Electromagnet

Description:

1.Release type, round shape, mini size, IP65 waterproof, DC power supply, 12v 24v optional, power off electromagnet.

2.The electromagnet not need to be energised to develop suction force, widely used for holding of magnetic workpieces during machining or assembly, safety mechanisms, selector devices in textiles machinery, door latching holdback devices and etc.

3.Energised-on to release. We also offer an optional spring loaded ejector pin to overcome residual magnetism, as well as optional armature plates as a magnetic counterpart for optimum performance.

4.Also offer custom shape for you need

Applications:

XH1212 is a mini power-on-release permanent electromagnet with 10N (1kg) suction. It keeps magnetic force when power off and releases instantly when powered on, widely used for precise and light-duty automatic control.

1. Mini Precision Workpiece Positioning

It holds tiny ferromagnetic parts steadily in power-off state and releases them accurately after power-on. Ideal for precise positioning and fine processing of small hardware accessories.

2. Intelligent Cabinet & Latch Lock Control

Suitable for mini electric locks for small cabinets, drawer latches and equipment covers. Permanent suction ensures safe locking without continuous power consumption, saving energy effectively.

3. Micro Automated Assembly Lines

Applied in small automatic assembly equipment for light pick-and-place tasks. It features fast response and low power loss, matching high-precision micro assembly procedures.

4. Electronic Equipment Magnetic Switch

Used as magnetic control switches for testing instruments, miniature automation devices and consumer electronics. It realizes flexible opening and closing control with stable and sensitive action.

5. Small Mold Auxiliary Fixing

Serves as auxiliary positioning for tiny molds and jigs. It maintains constant holding force when powered off and releases quickly for fast mold replacement and debugging.

6. Educational & Experimental Equipment

Widely adopted in teaching devices and scientific experimental equipment. Its mini size, low power and safe light suction perfectly suit laboratory demonstration and small automation research.

Specifications:

Competitive Advantage:

1. Low Residual Magnetism Optional ejector pins and matching armature plates eliminate residual magnetism, enabling instant, zero-sticking release for precise, repeatable operation.

2. Mini Compact & Stable Suction Space-saving round mini size fits narrow installation spaces, providing concentrated, steady suction to fix workpieces firmly without slipping.

3. IP65 Waterproof & Durable IP65 dustproof and waterproof grade ensures stable performance against moisture and dust, adapting to harsh industrial environments.

4. Strong Compatibility & Customization Standard 12V/24V DC voltage supports most automation systems. Custom shapes and power-on-release functions meet diverse personalized needs.

5. Low Power & Maintenance-Free Featuring sensitive response, low heat generation and low power consumption. Its simple structure ensures long service life and reduces operating costs.

FAQ：

Q1: What are the core specifications of the XH1212 electromagnet?

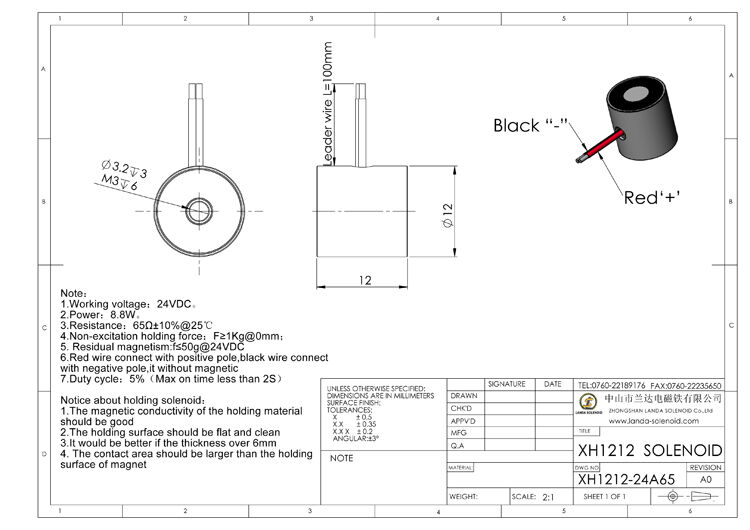

This Landa round permanent electromagnet supports 12V/24V DC voltage. It features 8.8W power, 10N (1kg) holding force, Class B insulation and M3 threaded holes with 6mm depth for installation.

Q2: What working type does this electromagnet adopt?

It is a power-on release type permanent electromagnet. It keeps suction when powered off and releases the workpiece instantly when powered on, featuring low energy consumption.

Q3: What voltage options are available for this model?

It provides 12V and 24V dual DC voltage options. Both versions have consistent size, suction and performance to fit different miniature automation power systems.

Q4: What is the load capacity of this small electromagnet?

It offers a stable 10N (1kg) rated holding force. The round suction surface provides uniform and delicate adsorption, perfect for light-duty and small workpiece fixing.

Q5: How to install the XH1212 permanent electromagnet?

It adopts standard M3 mounting threads with 6mm depth. The compact round shape enables easy, space-saving and firm installation for mini equipment.

Q6: What are its material and safety features?

Made of high-quality iron and magnetic coil, it delivers stable permanent magnetic performance and long service life. Class B insulation ensures safe and stable long-term operation.
