Landa TU1327 Mini Linear Solenoid Push Pull 12v 24v Micro Tubular Solenoid

Description:

1. Push-pull type, linear motion, plunger spring reset, DC solenoid electromagnet.

2. DC Solenoid electromagnets are mainly used in vending machines, transportation equipment, office equipment, household appliances, machinery, etc.

3. The solenoid works externally by pushing and pulling the plunger, and when energized, it works by pushing and pulling the plunger to connect the object.

4. Open frame structure with mounting holes, accepted custom as you needed.

Applications:

1. Mini Precision Linear Actuation

This tubular solenoid delivers stable 0-5mm short-stroke push-pull motion, ideal for precise micro-driving of compact automated equipment.

2. Mini Electromagnetic Lock Control

It acts as a core drive for small intelligent locks and equipment latches, realizing sensitive and reliable automatic locking and unlocking.

3. Precision Instrument Micro Positioning

Suitable for positioning, ejection and reset operations of precision testing devices, ensuring accurate and repeatable micro mechanical movement.

4. Small Assembly Line Automated Actuation

Performs clamping, shifting and discharging of tiny workpieces. 10%-100% adjustable duty cycle adapts to intermittent and continuous cyclic operation.

5. Smart Device Mechanical Driving

The 4-40W wide power range meets diversified light and medium load driving demands for smart home and industrial miniature devices.

6. Micro Valve & Switch Actuation

Controls opening and closing of miniature fluid valves and mechanical switches. The compact tubular structure features high precision and stable long-term operation.

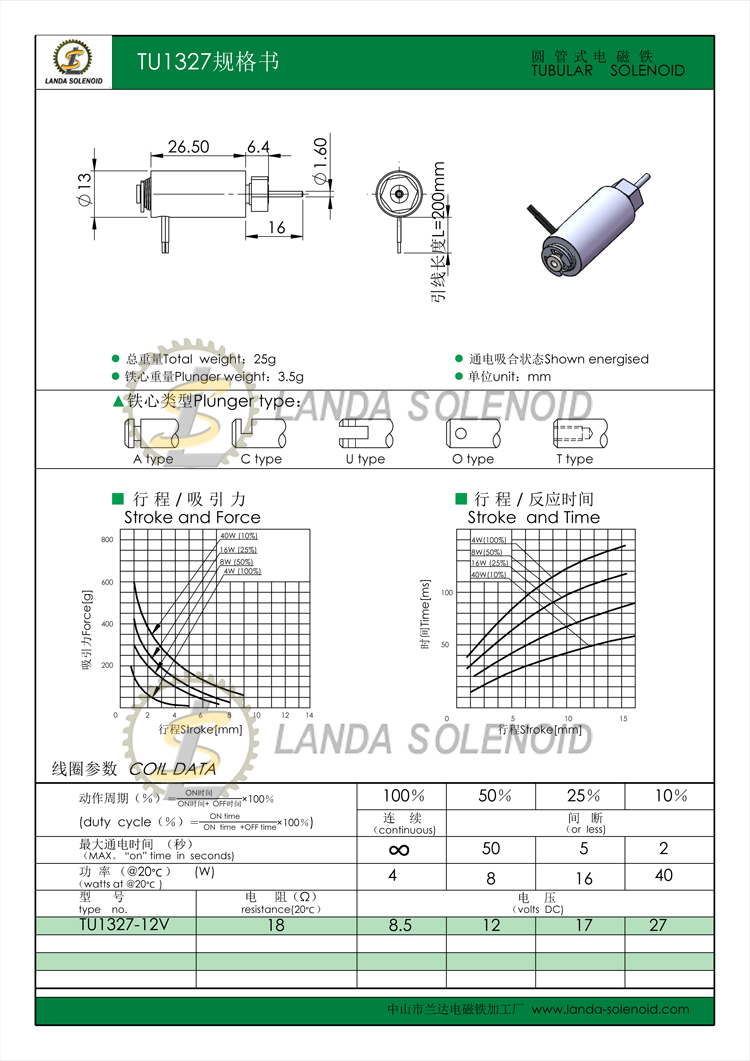

Specifications:

Competitive Advantage:

1. Low Residual Magnetism Optional ejector pins and matching armature plates eliminate residual magnetism, enabling instant, zero-sticking release for precise, repeatable operation.

2. Mini Compact & Stable Suction Space-saving round mini size fits narrow installation spaces, providing concentrated, steady suction to fix workpieces firmly without slipping.

3. IP65 Waterproof & Durable IP65 dustproof and waterproof grade ensures stable performance against moisture and dust, adapting to harsh industrial environments.

4. Strong Compatibility & Customization Standard 12V/24V DC voltage supports most automation systems. Custom shapes and power-on-release functions meet diverse personalized needs.

5. Low Power & Maintenance-Free Featuring sensitive response, low heat generation and low power consumption. Its simple structure ensures long service life and reduces operating costs.

FAQ:

Q1: What is the working type and stroke of TU1327 solenoid?

It is a mini tubular push-pull solenoid with 0-5mm adjustable stroke, supporting high-precision short-stroke linear motion control.

Q2: What voltage options are available for this solenoid?

It supports 12V and 24V DC voltage, both providing stable and consistent push-pull driving performance for miniature automation systems.

Q3: What are the power and duty cycle specifications?

It features 4W-40W adjustable power and 10%-100% duty cycle, compatible with intermittent and long-term continuous working scenarios.

Q4: What are the advantages of tubular solenoid structure?

The integrated tubular design offers high structural rigidity, precise motion track, small size and excellent operational stability.

Q5: What fields is this solenoid suitable for?

It is widely applicable for precision instruments, smart locks, small automation equipment and micro valve control systems.

Q6: How about the material and safety performance?

Made of premium iron and high-density magnetic coil for stable output. Class B insulation ensures safe and reliable long-term industrial operation.
