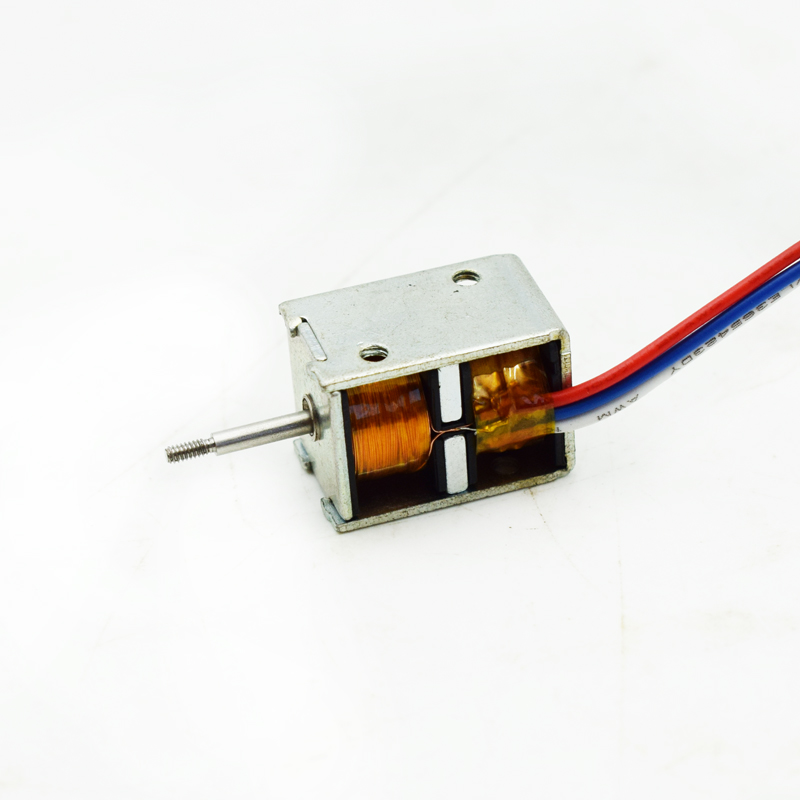

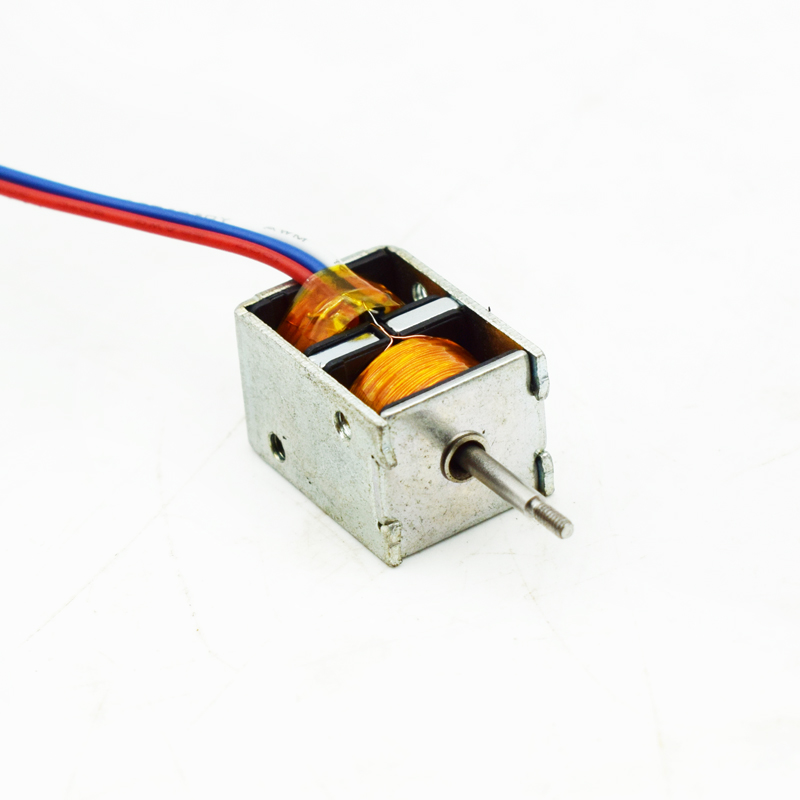

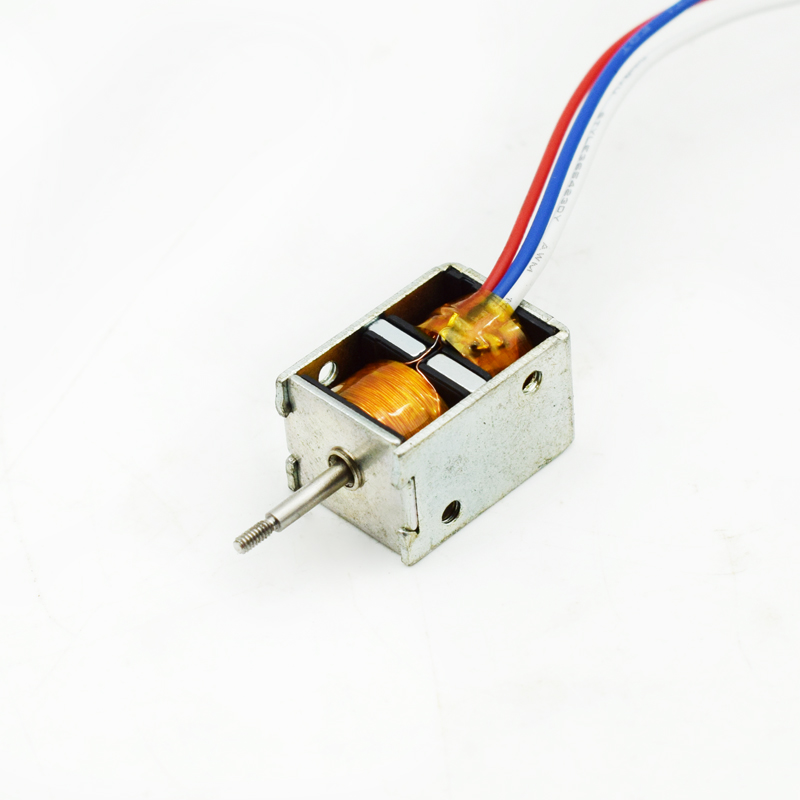

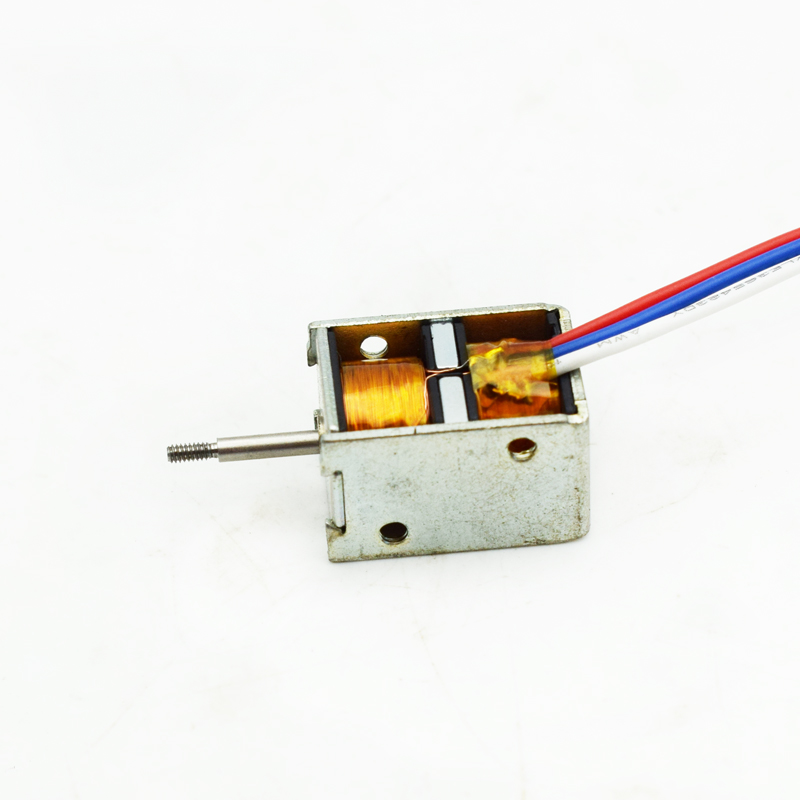

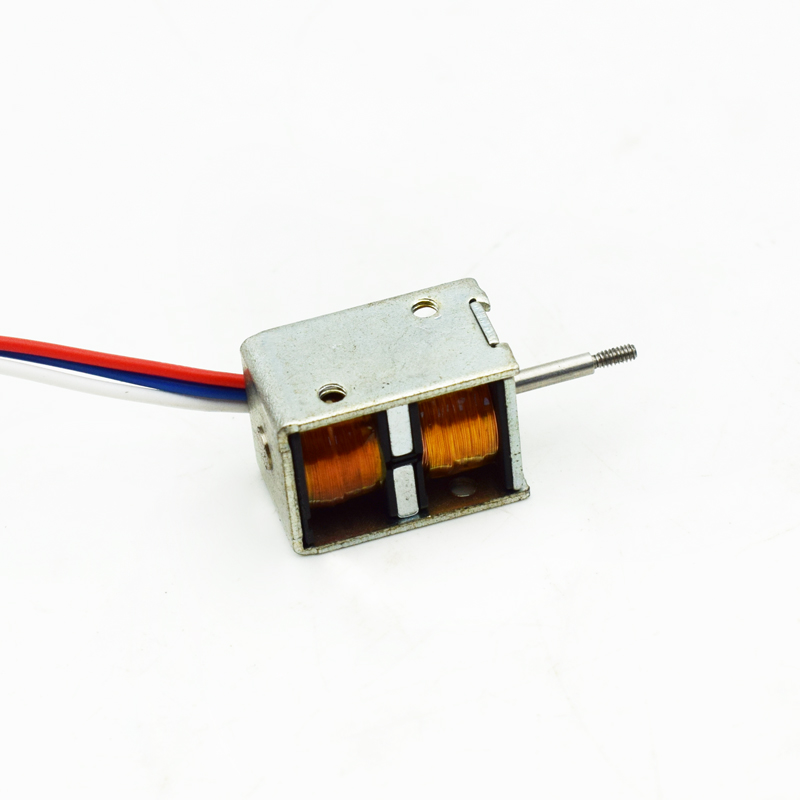

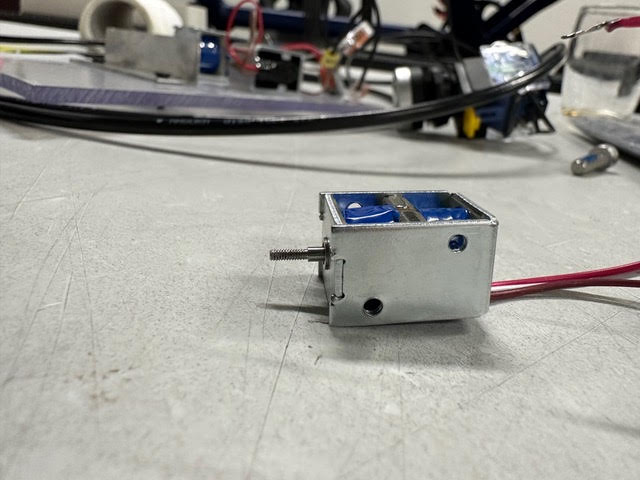

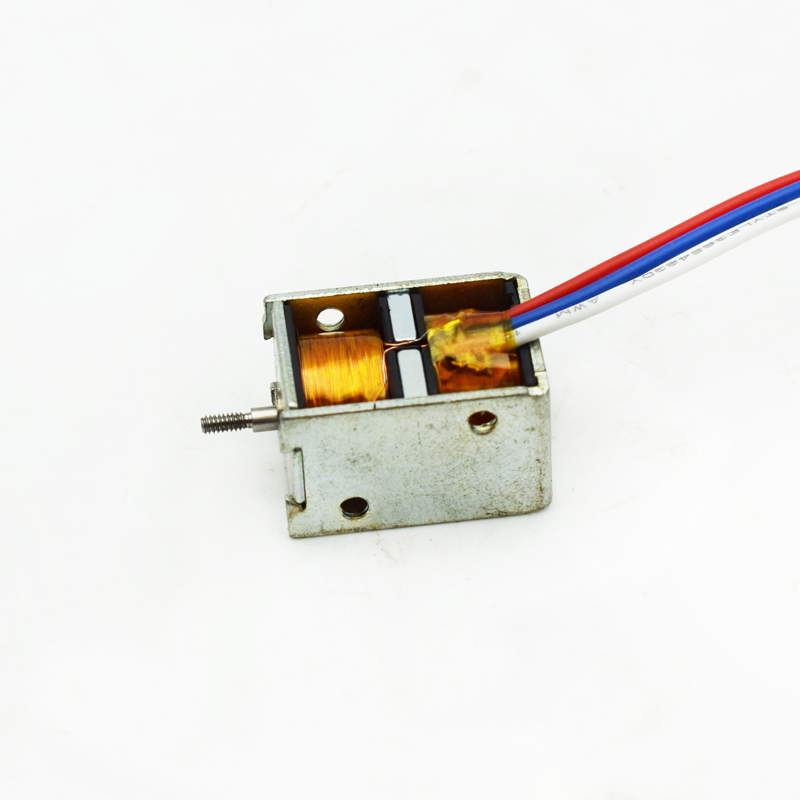

Custom 6mm Stroke Push Pull Dc 12v 24v Bistable Solenoid Latching Solenoid

Description:

1. Push-pull type, linear motion, plunger spring reset, DC solenoid electromagnet.

2. DC Solenoid electromagnets are mainly used in vending machines, transportation equipment, office equipment, household appliances, machinery, etc.

3. The solenoid works externally by pushing and pulling the plunger, and when energized, it works by pushing and pulling the plunger to connect the object.

4. Open frame structure with mounting holes, accepted custom as you needed.

Applications:

1. Intelligent Electromagnetic Lock Control

Featuring power-off latching and pulse drive, it is widely used for mini intelligent locks, cabinet latches and equipment door locks, realizing energy-saving and stable long-term locking.

2. Mini Precision Linear Positioning

The accurate 6mm short stroke provides high-repeatability linear motion, suitable for precise positioning and fine tuning of miniature precision instruments and testing equipment.

3. Energy-Saving Automation Actuation

Ideal for intermittent working automation modules. Instant pulse drive and power-off state holding effectively reduce power consumption and heat accumulation.

4. Mini Fluid Valve Switch Control

Serves as the driving core for miniature solenoid valves, completing stable opening and closing actions and maintaining working state without continuous power supply.

5. Smart Home Device Execution

Compatible with 12V/24V common voltage, it is perfectly applied to various compact smart home devices for lightweight automatic push-pull control.

6. Small Automated Assembly Mechanism

Used for tiny workpiece ejection, reset and clamping on miniature assembly lines, supporting frequent cyclic switching with stable performance.

Specifications:

Competitive Advantage:

1. Low Residual Magnetism Optional ejector pins and matching armature plates eliminate residual magnetism, enabling instant, zero-sticking release for precise, repeatable operation.

2. Mini Compact & Stable Suction Space-saving round mini size fits narrow installation spaces, providing concentrated, steady suction to fix workpieces firmly without slipping.

3. IP65 Waterproof & Durable IP65 dustproof and waterproof grade ensures stable performance against moisture and dust, adapting to harsh industrial environments.

4. Strong Compatibility & Customization Standard 12V/24V DC voltage supports most automation systems. Custom shapes and power-on-release functions meet diverse personalized needs.

5. Low Power & Maintenance-Free Featuring sensitive response, low heat generation and low power consumption. Its simple structure ensures long service life and reduces operating costs.

FAQ:

Q1: What is the core feature of this bistable latching solenoid?

It is a 6mm stroke push-pull latching solenoid with power-off self-locking function, requiring only pulse current to switch states and achieve zero-power holding.

Q2: What voltage specifications does it support?

This solenoid supports universal DC 12V and 24V input, compatible with most industrial and smart device low-voltage control systems.

Q3: What is the working principle of bistable latching?

It adopts pulse-driven switching design. Short-time energization completes push or pull action, and it locks the state automatically after power off without continuous power supply.

Q4: What are the main advantages of this solenoid?

It features ultra-low energy consumption, no heat accumulation, precise 6mm stroke and long service life, ideal for frequent switching and long standby scenarios.

Q5: What working type does this product belong to?

It is a bidirectional push-pull bistable solenoid, capable of flexible linear push, pull and reset positioning for miniature automation equipment.

Q6: What scenarios is this latching solenoid suitable for?

It is widely used for intelligent locks, micro valve control, precision instruments, smart home devices and energy-saving miniature automation systems.
