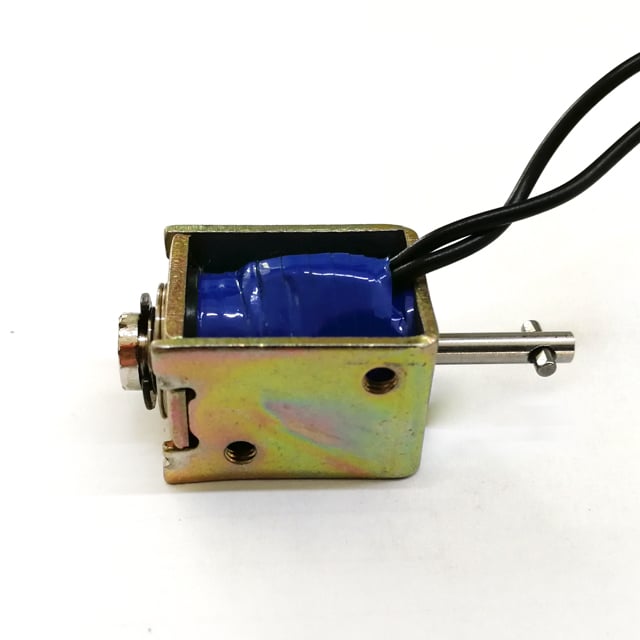

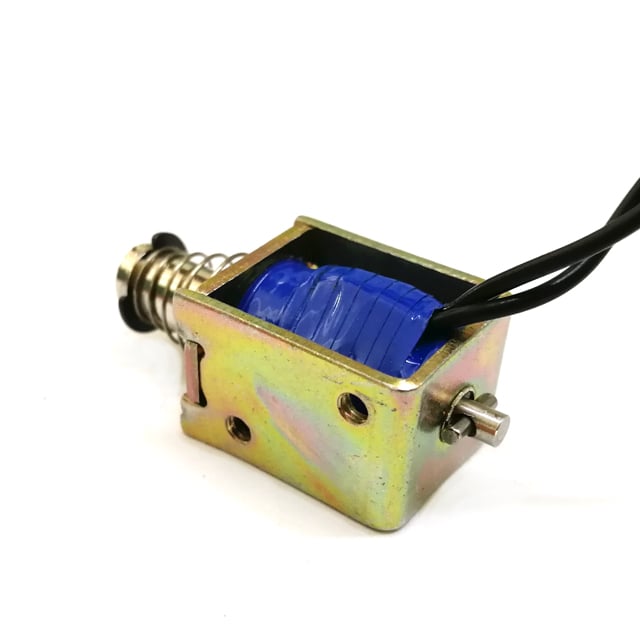

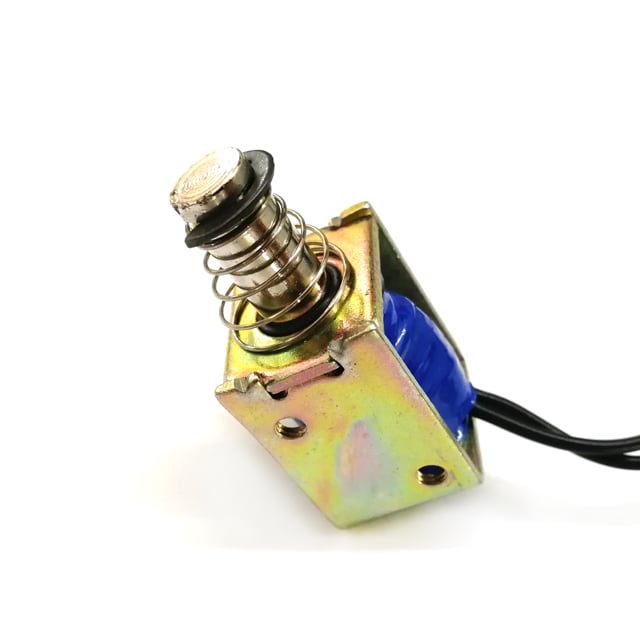

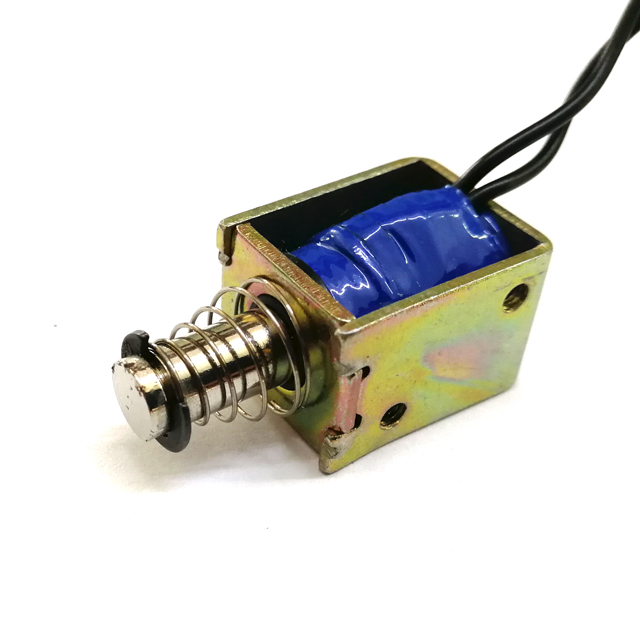

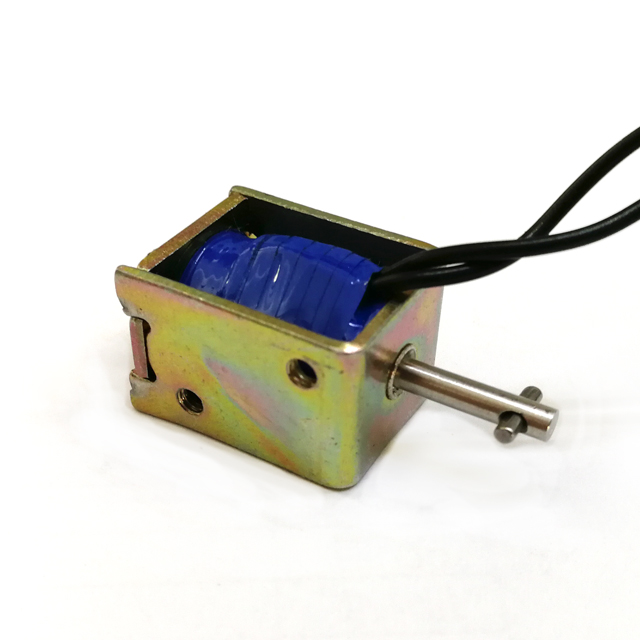

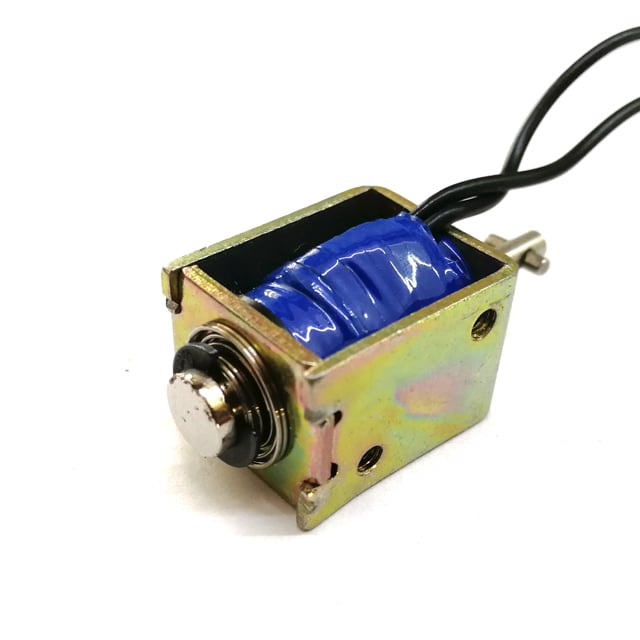

SQ0620 Mini Frame Solenoid Push Pull 6v 12v 24v Dc Micro Linear Solenoid

Description:

1. Push-pull type, linear motion, plunger spring reset, DC solenoid electromagnet.

2. DC Solenoid electromagnets are mainly used in vending machines, transportation equipment, office equipment, household appliances, machinery, etc.

3. The solenoid works externally by pushing and pulling the plunger, and when energized, it works by pushing and pulling the plunger to connect the object.

4. Open frame structure with mounting holes, accepted custom as you needed.

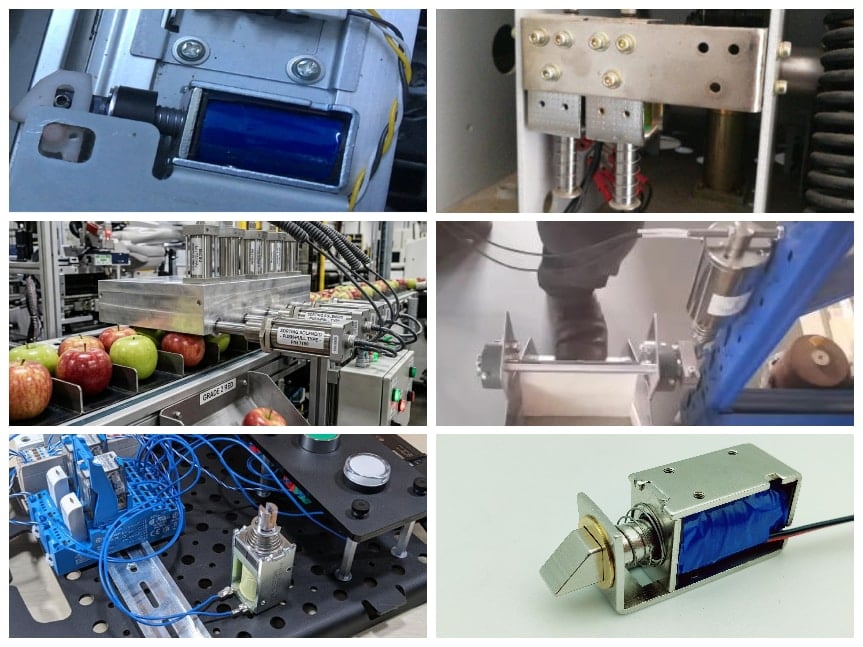

Applications:

SQ0620 is a mini frame push-pull linear solenoid with 0-4mm short stroke and adjustable power. It features flexible duty cycle, compact size and stable linear movement, widely used for micro automatic control equipment.

1. Mini Electronic Equipment Actuation

It provides precise push-pull linear motion for small electronic devices. The 4mm short stroke and low power consumption ensure accurate and stable micro displacement control.

2. Intelligent Lock Control System

Serves as driving core for miniature electromagnetic locks and cabinet latches. Fast push-pull response realizes automatic locking and unlocking for small intelligent equipment.

3. Precision Instrument Positioning

Applied in testing and precision instruments for tiny positioning and reset actions. Steady linear output guarantees high accuracy for fine detection operations.

4. Small Automation Assembly Mechanism

Ideal for micro push, eject and clamping actions on mini assembly lines. Flexible 10-100% duty cycle adapts to continuous and intermittent working modes.

5. Household & Smart Device Driving

Used as power drive for various small smart home devices. Adjustable 1.6-16W power matches different load demands with low heat and high efficiency.

6. Micro Valve & Switch Control

Controls opening and closing of miniature fluid valves and mechanical switches. Compact frame structure fits narrow installation space for modular automation units.

Specifications:

Competitive Advantage:

1. Low Residual Magnetism Optional ejector pins and matching armature plates eliminate residual magnetism, enabling instant, zero-sticking release for precise, repeatable operation.

2. Mini Compact & Stable Suction Space-saving round mini size fits narrow installation spaces, providing concentrated, steady suction to fix workpieces firmly without slipping.

3. IP65 Waterproof & Durable IP65 dustproof and waterproof grade ensures stable performance against moisture and dust, adapting to harsh industrial environments.

4. Strong Compatibility & Customization Standard 12V/24V DC voltage supports most automation systems. Custom shapes and power-on-release functions meet diverse personalized needs.

5. Low Power & Maintenance-Free Featuring sensitive response, low heat generation and low power consumption. Its simple structure ensures long service life and reduces operating costs.

FAQ：

Q1: What is the working type and stroke of SQ0620 solenoid?

It is a push-pull micro linear solenoid with a standard adjustable stroke of 0-4mm, supporting precise short-stroke linear motion control.

Q2: What voltage options does this solenoid support?

It supports 12V and 24V DC voltage. Both versions deliver stable push-pull performance for diverse miniature automation systems.

Q3: What is the power range and duty cycle?

It features an adjustable power range of 1.6-16W and 10-100% wide duty cycle, adapting to intermittent and continuous long-term operation.

Q4: What are the core advantages of this mini solenoid?

It adopts mini frame compact design with flexible power and duty cycle. It offers fast response, precise motion and low heat for micro control scenarios.

Q5: How to install the SQ0620 linear solenoid?

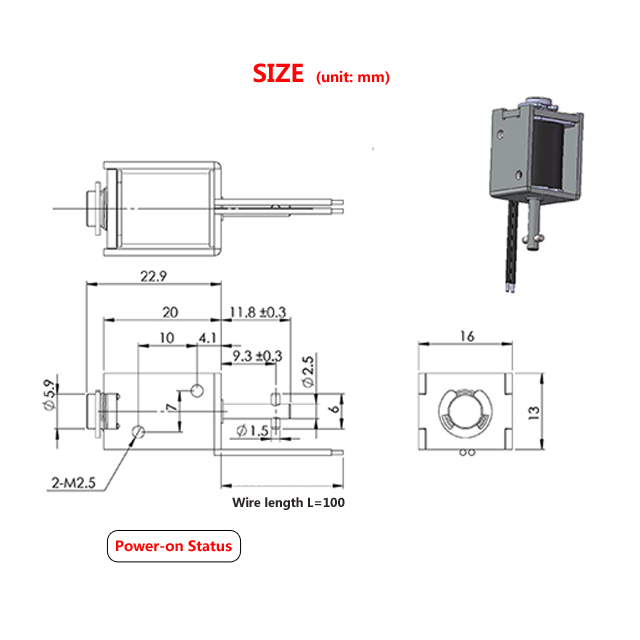

Equipped with 2-M2.5 mounting threads, the lightweight frame structure enables easy, firm and space-saving installation for miniature equipment.

Q6: About product material and safety performance?

Made of high-strength iron and premium magnetic coil, it ensures stable driving performance. Class B insulation guarantees safe and durable operation.
