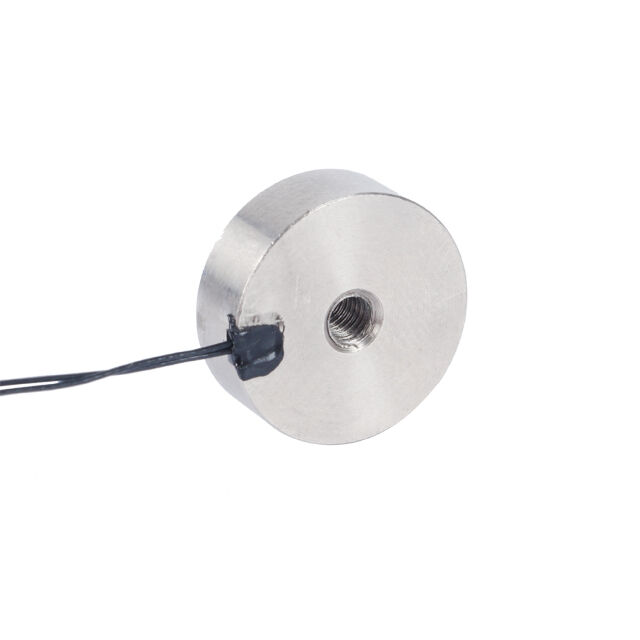

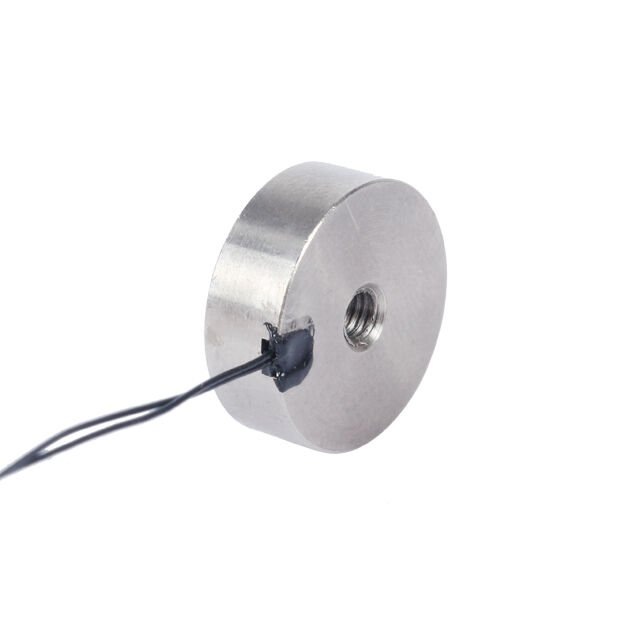

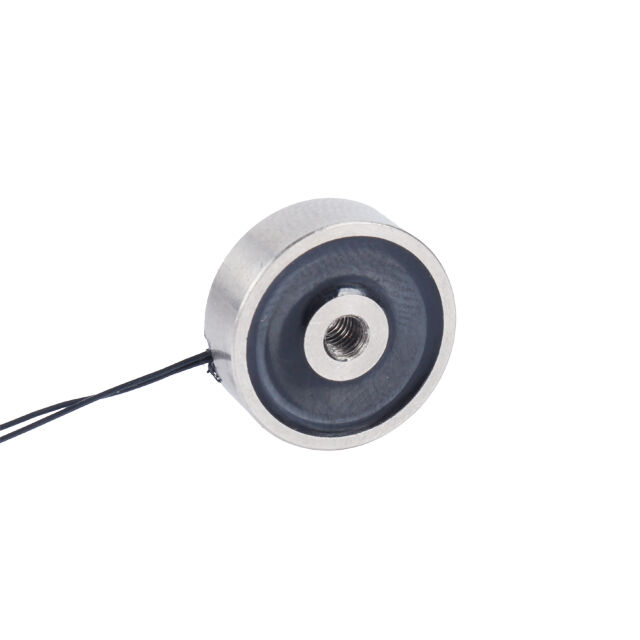

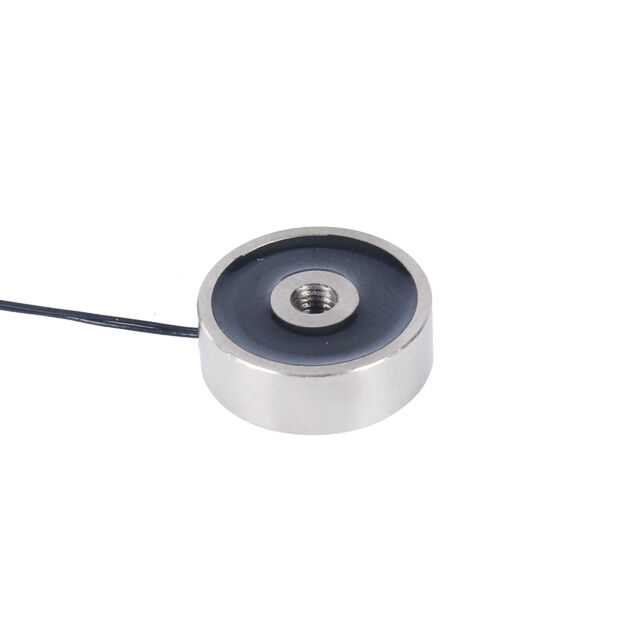

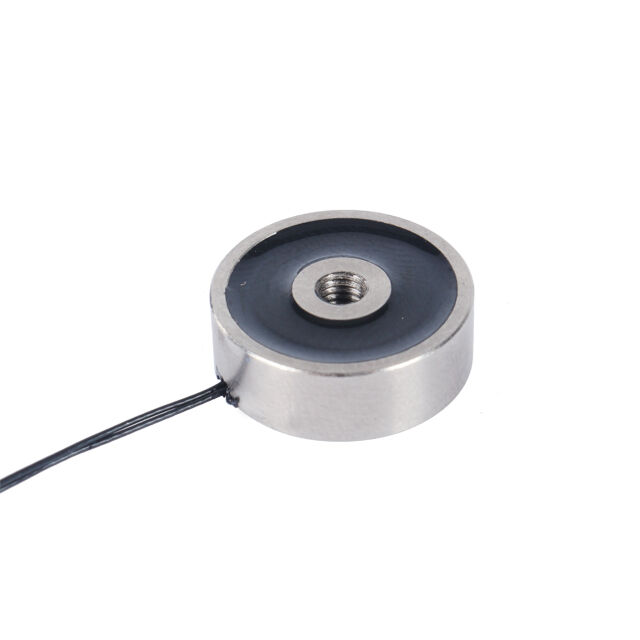

Mini Electric Lift 10n Electromanget 6v 12v Dc Small Ring Electromagnet

Description

1.Holding type, round shape, mini size, ip65 waterproof, DC electromagnet, 12v 24v standard voltage, accepted custom

2.The mini round electromagnet need to be energised to develop suction force and deenergised release, widely used for holding of ferromagnetic workpieces during machining or assembly, safety mechanisms, selector devices in textiles machinery, door latching holdback devices and etc.

3.Energised-on-holding, and release deenergised. We also offer an optional spring loaded ejector pin to overcome residual magnetism, as well as optional armature plates as a magnetic counterpart for optimum performance.

4.Also offer custom shape and supply power on release mini dc electromagnet.

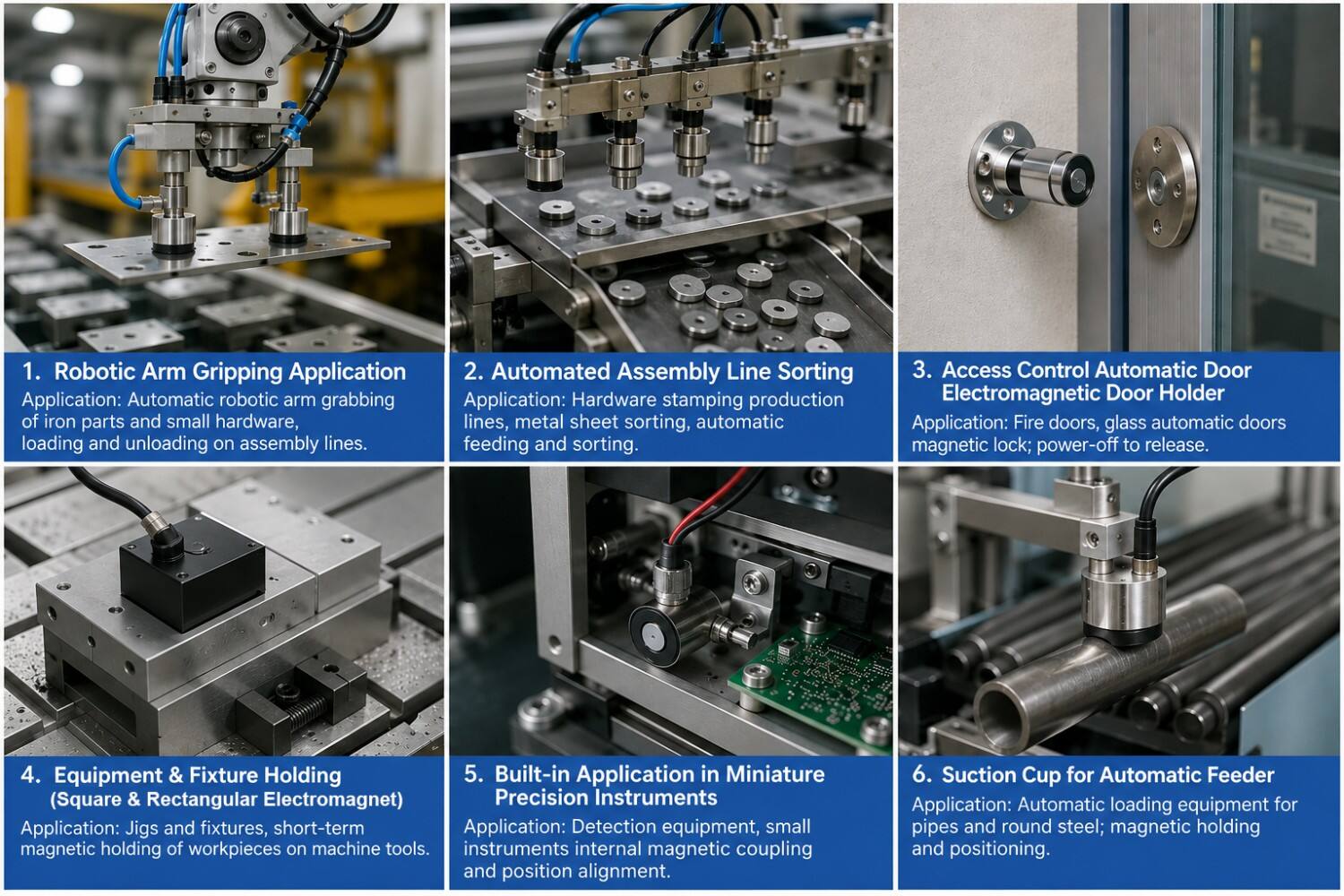

Applications

1：Robot arm picking small metal parts

Mini holding electromagnet installed on automated robotic arm, picking iron accessories in assembly production line; power-off keep suction, power on release, widely used for automatic loading & unloading.

2：Automatic sorting production line

Electromagnetic chuck fixed on sorting machine for iron sheet separation and material classification, low power standby, no heating for long-time holding.

3：Fire door magnetic door holder

Small holding magnet for fire safety door retainer, keep door closed by permanent suction when power off, instantly release while energized for emergency opening.

4：CNC fixture workpiece fixing

Compact holding electromagnet embedded in machining fixture, fast fixing steel workpiece during processing, replace traditional mechanical clamping structure.

5：Precision testing equipment internal assembly

Micro round holding magnet built inside inspection instruments for component positioning and temporary locking, small size with stable adsorption force.

6：Automatic feeder metal positioning

Holding electromagnet equipped on auto feeding machine to fix round steel and hardware raw materials, realize intermittent feeding control.

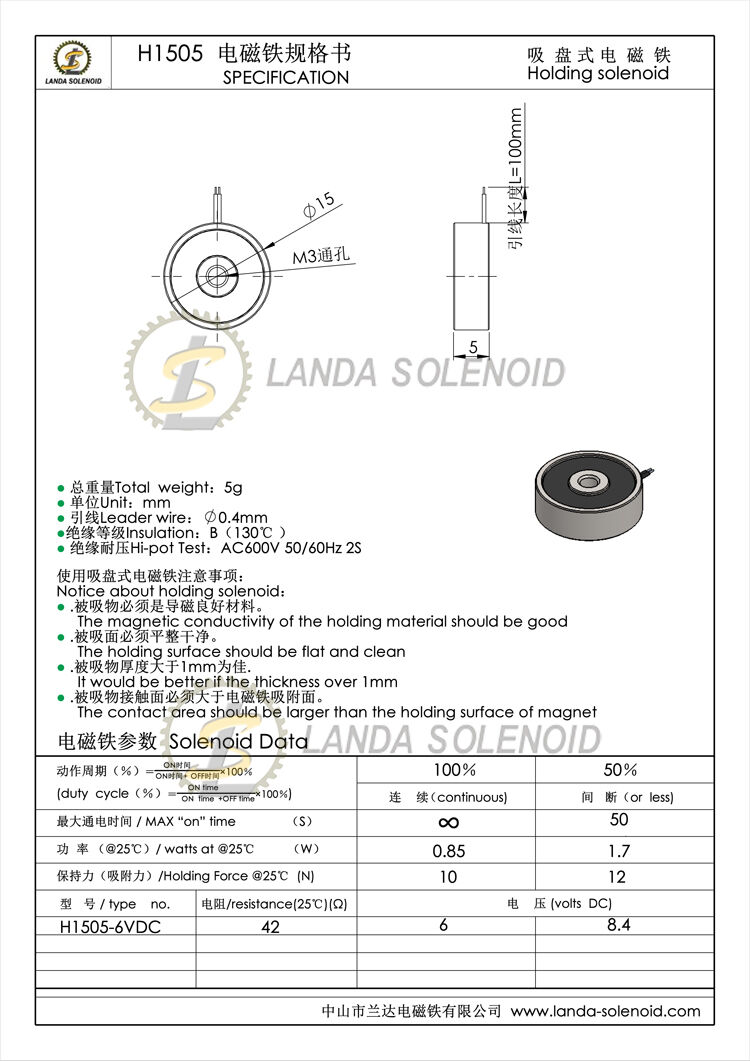

Specifications

Competitive Advantage

1. Low Residual Magnetism Optional ejector pins and matching armature plates eliminate residual magnetism, enabling instant, zero-sticking release for precise, repeatable operation.

2. Mini Compact & Stable Suction Space-saving round mini size fits narrow installation spaces, providing concentrated, steady suction to fix workpieces firmly without slipping.

3. IP65 Waterproof & Durable IP65 dustproof and waterproof grade ensures stable performance against moisture and dust, adapting to harsh industrial environments.

4. Strong Compatibility & Customization Standard 12V/24V DC voltage supports most automation systems. Custom shapes and power-on-release functions meet diverse personalized needs.

5. Low Power & Maintenance-Free Featuring sensitive response, low heat generation and low power consumption. Its simple structure ensures long service life and reduces operating costs.

FAQ for Holding Electromagnet

1. What’s the working principle of holding electromagnet?

Holding electromagnets adopt power-on holding and power-off release principle.

2. What voltage options are available for small sucker electromagnets?

Holding electromagnets support common DC 12V and DC 24V standard voltages, We also provide customized voltage for you need.

3.What materials can the sucker electromagnet adsorb?

All ferromagnetic materials, including iron sheets, steel parts, iron brackets, and metal iron workpieces. It cannot adsorb stainless steel, aluminum, copper, and non-metal materials.

4. Is residual magnetism a problem after power-off release?

All holding electromagnets have this issue, more dimension more residual magnetism. We will using optimized demagnetization structure, surface treatment and degausser to solve it. Surely, if the weight of the object being attracted exceeds the residual magnetism of the electromagnet itself, you don’t need to worry about this issue.

5. What are the main application scenarios of small holding electromagnets?

Holding electromagnets are widely used in smart cabinet locks, fire door holders, automation fixture positioning, vending machines, testing equipment, textile machinery, and small automated feeding systems.
