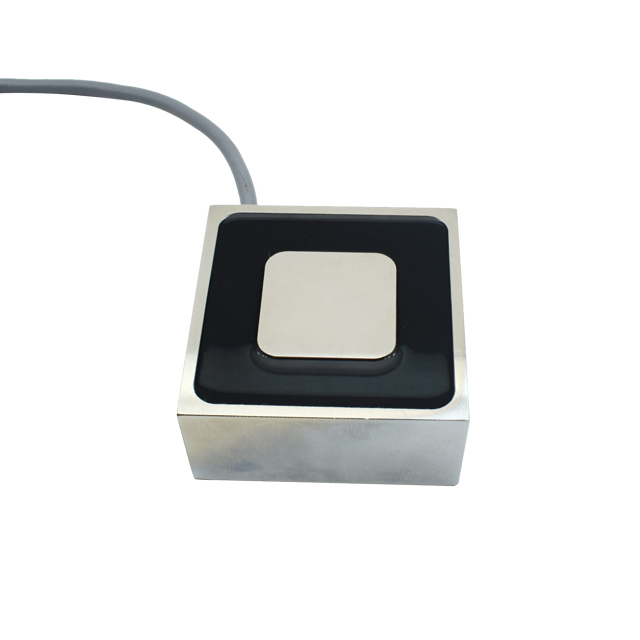

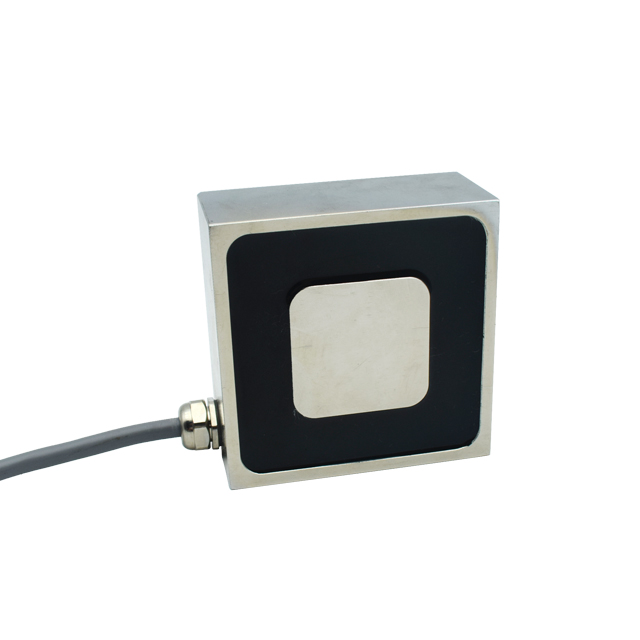

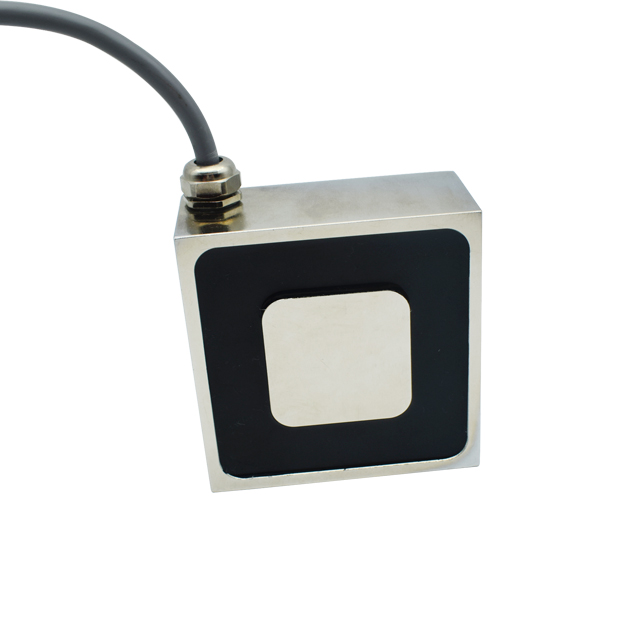

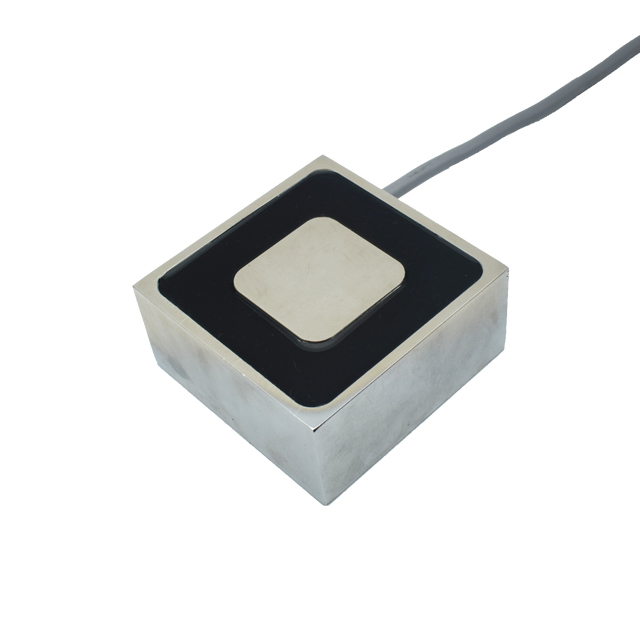

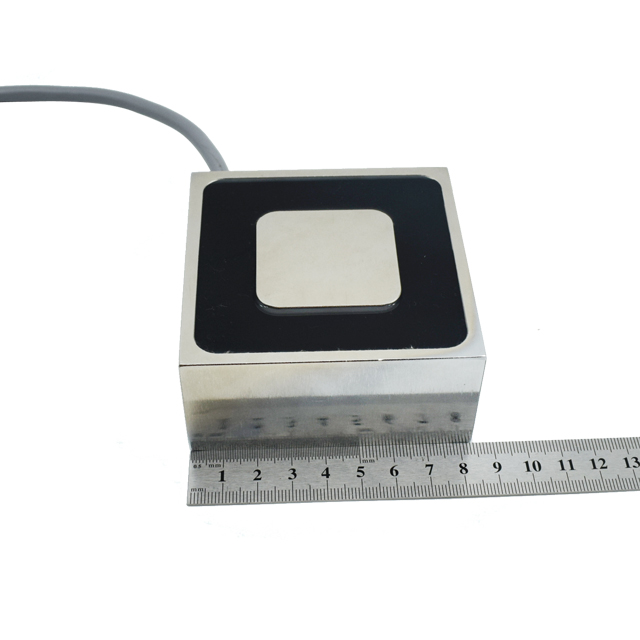

100kg Dc Holding Electromagnet Square Shape Dc 12v 24v Small Electromagnet

Description:

1.Holding type, Square shape, mini size, IP65 waterproof, DC power supply, 12v 24v optional mini holding electromagnet.

2.The square electromagnet need to be energised to develop suction force, widely used for holding of magnetic workpieces during machining or assembly, safety mechanisms, selector devices in textiles machinery, door latching holdback devices and etc.

3.Energised-on-holding, and release deenergised. We also offer an optional spring loaded ejector pin to overcome residual magnetism, as well as optional armature plates as a magnetic counterpart for optimum performance.

4.Also offer custom shape and energise to release square electromagnet

Applications:

Square sucker electromagnets offer stable, even suction with a compact flat structure, ideal for various industrial automation and machining applications.

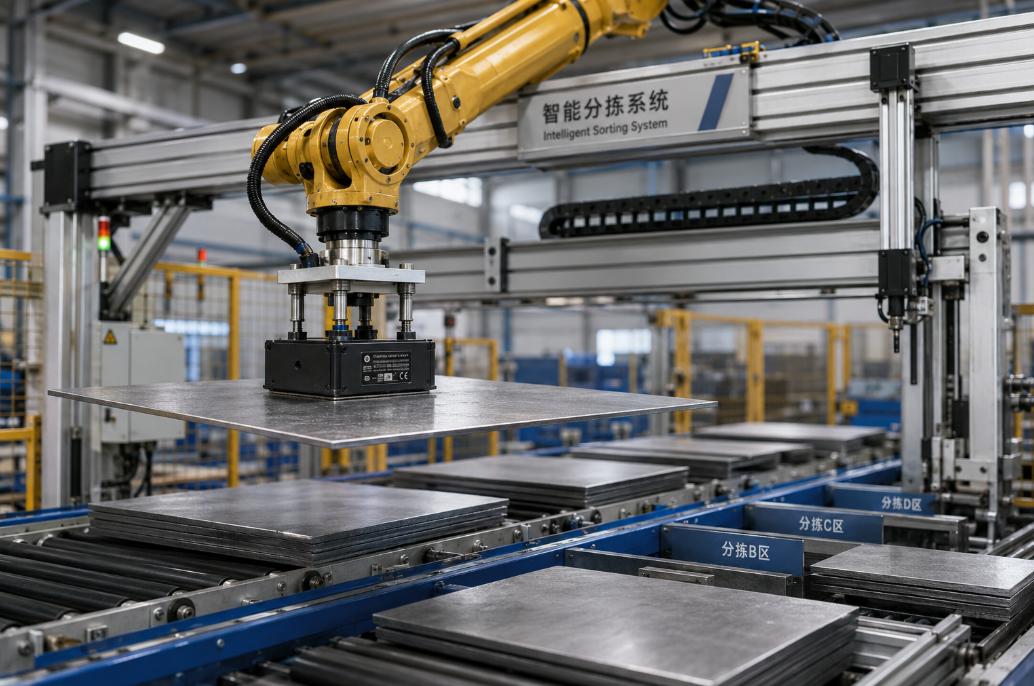

1. Industrial Automated Material Handling

It is used on robotic arms and gantry equipment to grip and transfer flat metal parts steadily, enabling fast pick-and-place for automated production lines.

2. Mechanical Processing and Workpiece Fixing

It acts as a precision clamp for CNC cutting, grinding and drilling, supporting fast workpiece loading and unloading without deformation.

3. Automatic Door and Window Control System

It provides power-on locking and power-off releasing for automatic doors, cabinets and access control, suitable for frequent long-term operation.

4. Mould Clamping and Fixed Positioning

It fixes and positions molds for injection molding, stamping and die-casting, preventing displacement and ensuring consistent production accuracy.

5. Electromagnetic Separation and Iron Removal Equipment

It removes ferromagnetic impurities from materials on conveyor lines, purifying raw materials and protecting production equipment.

6. Intelligent Packaging and Sorting Equipment

It is applied in packaging and sorting lines for fast handling of metal parts, adapting to high-speed automated production.

Specifications:

Competitive Advantage:

1. Low Residual Magnetism Optional ejector pins and matching armature plates eliminate residual magnetism, enabling instant, zero-sticking release for precise, repeatable operation.

2. Mini Compact & Stable Suction Space-saving round mini size fits narrow installation spaces, providing concentrated, steady suction to fix workpieces firmly without slipping.

3. IP65 Waterproof & Durable IP65 dustproof and waterproof grade ensures stable performance against moisture and dust, adapting to harsh industrial environments.

4. Strong Compatibility & Customization Standard 12V/24V DC voltage supports most automation systems. Custom shapes and power-on-release functions meet diverse personalized needs.

5. Low Power & Maintenance-Free Featuring sensitive response, low heat generation and low power consumption. Its simple structure ensures long service life and reduces operating costs.

FAQ:

Q1: What are the core specifications of the H848439 square electromagnet?

This Landa square holding-type electromagnet supports 12V/24V DC voltage. It features 16W rated power, 1000N (100kg) strong holding force, iron and magnetic coil structure, Class B insulation and 2-M8 (16mm depth) mounting threads.

Q2: What voltage options does this electromagnet support?

It is available in 12V and 24V DC versions. Both specifications share the same structure, suction performance and power parameters, fitting various industrial DC power supply systems.

Q3: How strong is the magnetic holding force of H848439?

This heavy-duty electromagnet provides a maximum holding force of 1000N, equivalent to 100kg load capacity. Its square flat suction surface offers uniform and stable adsorption for large flat ferromagnetic workpieces.

Q4: What is the working principle and feature of this product?

It is a standard DC holding-type electromagnet. It adsorbs firmly when powered on and releases instantly when powered off. With stable 16W power output, it adapts to long-time holding and frequent cyclic work.

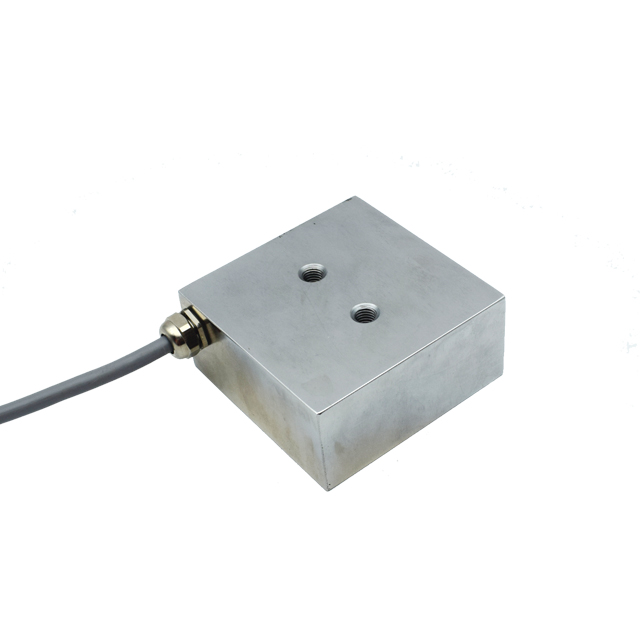

Q5: What is the mounting structure of the H848439 electromagnet?

It adopts 2pcs M8 mounting threads with 16mm depth. The optimized square structure enables solid and stable installation, suitable for heavy-load handling and fixed positioning scenarios.

Q6: What are the material and safety insulation standards?

It is made of high-purity iron and high-quality magnetic coils for stable magnetic performance and durability. Adopting Class B insulation, it ensures safe and stable long-term operation in standard industrial environments.
