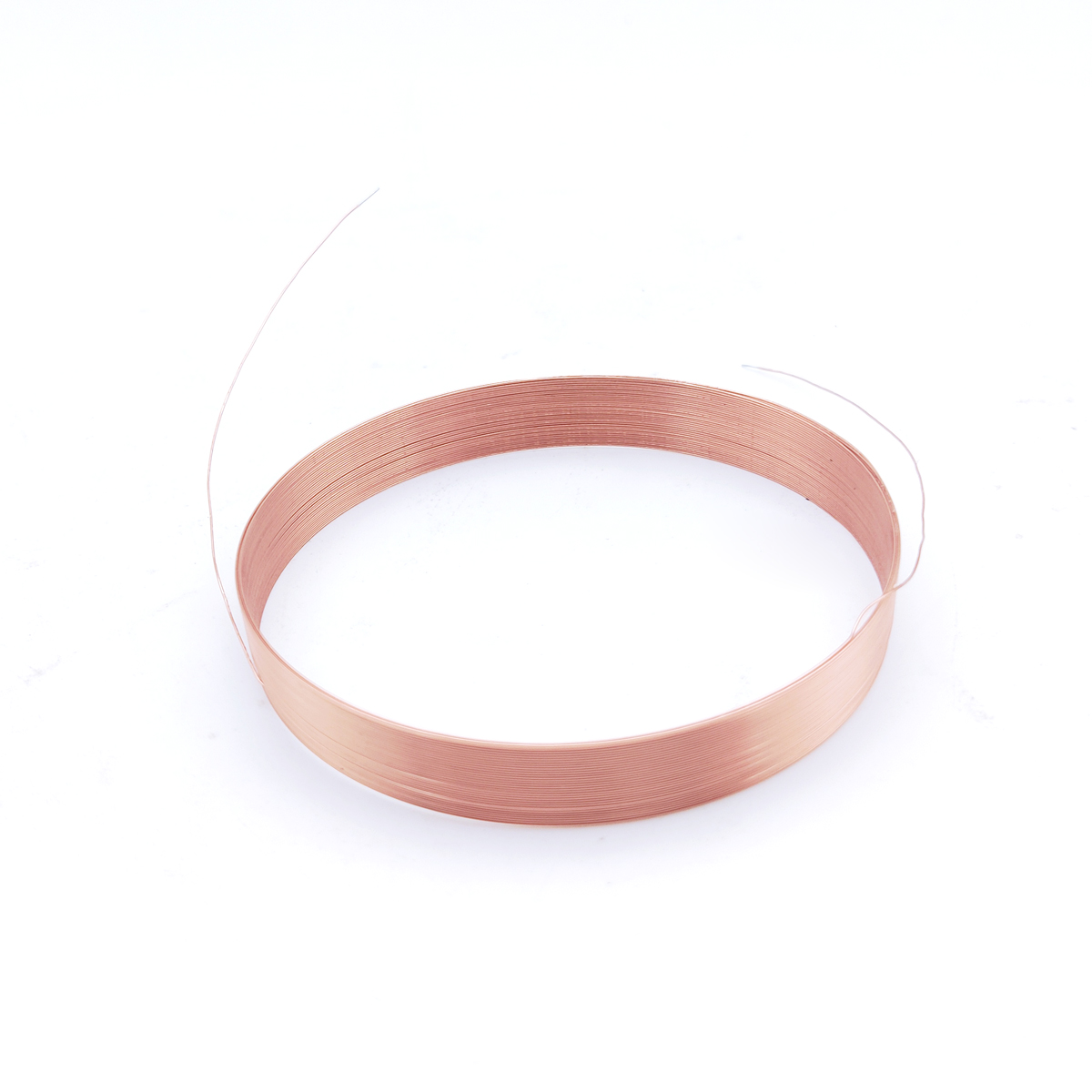

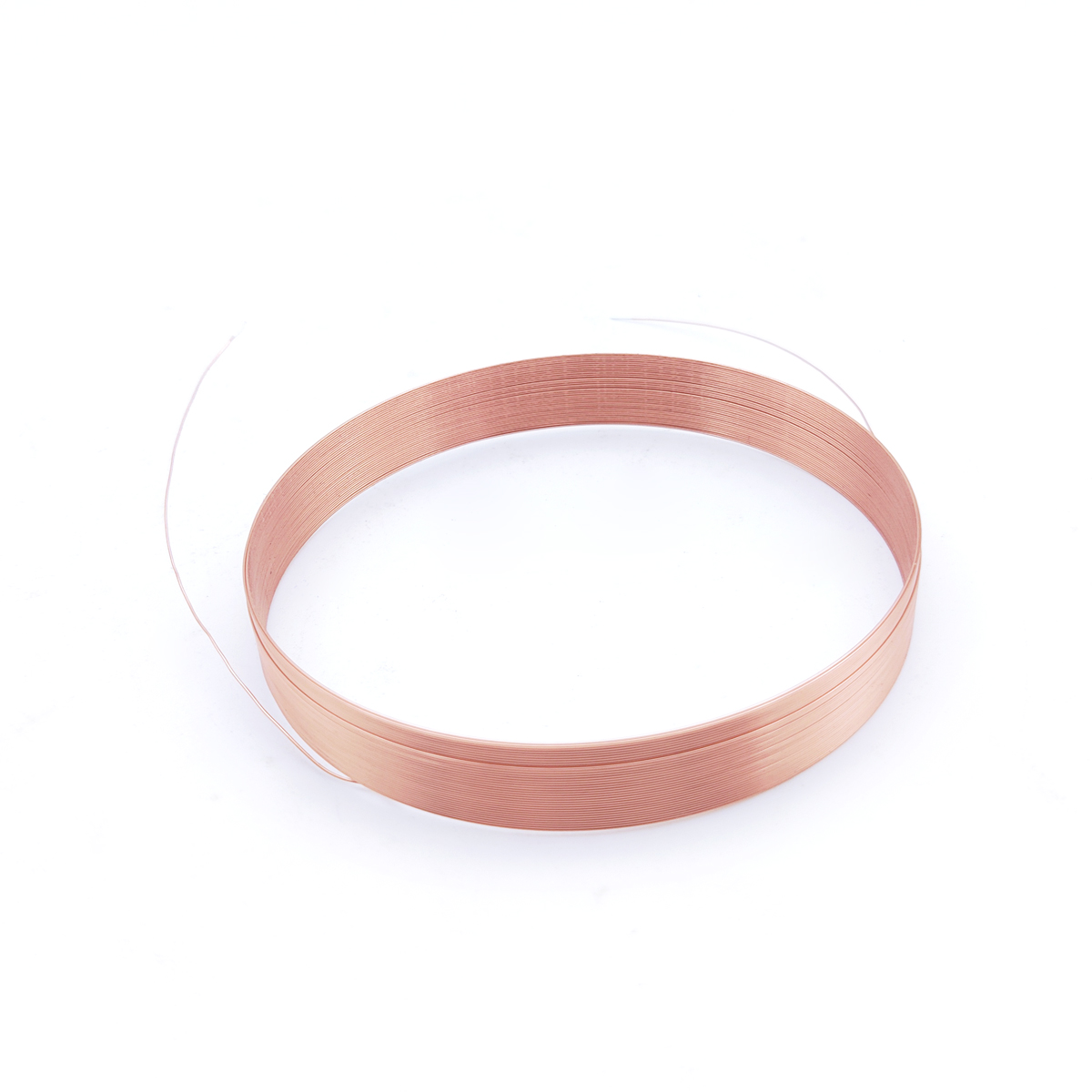

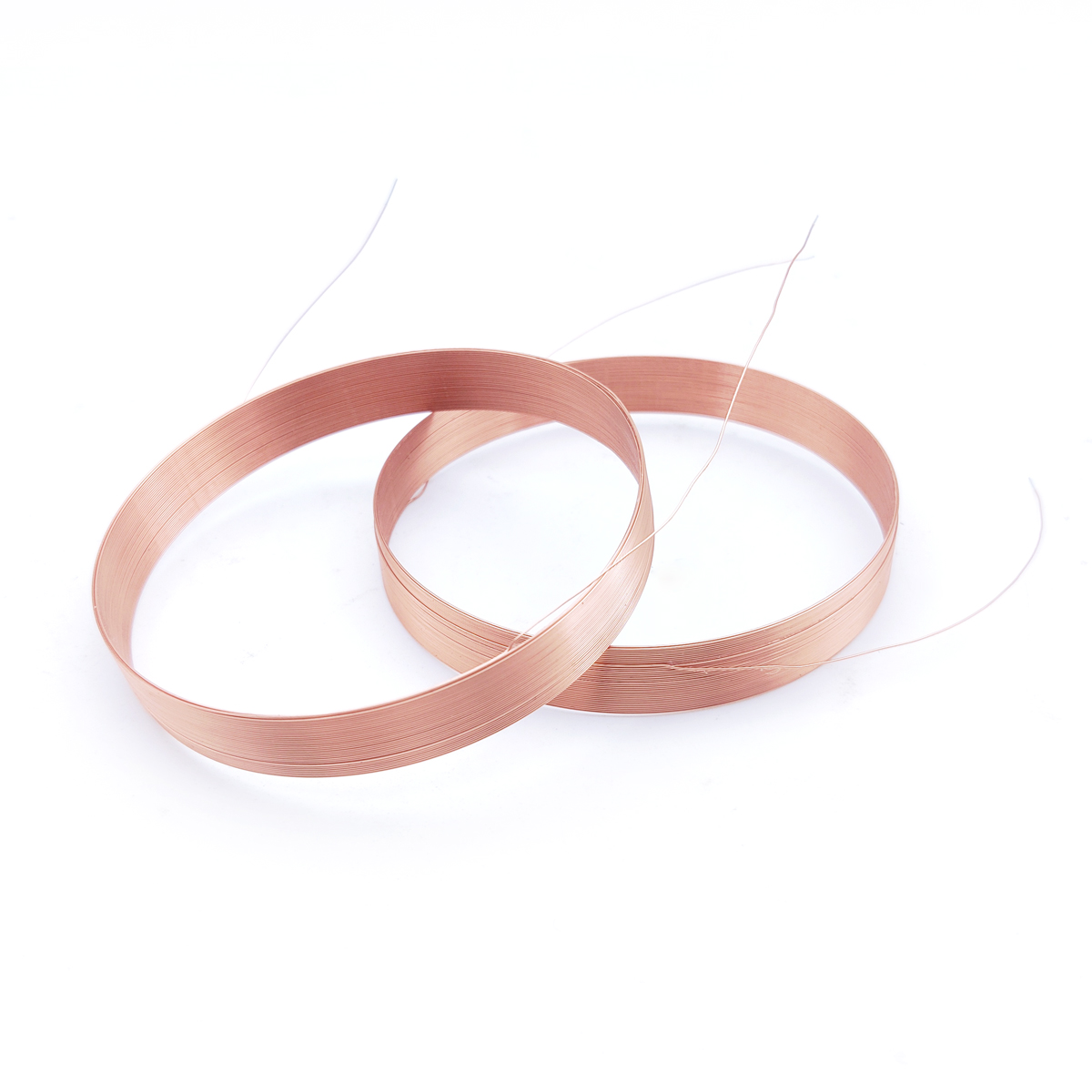

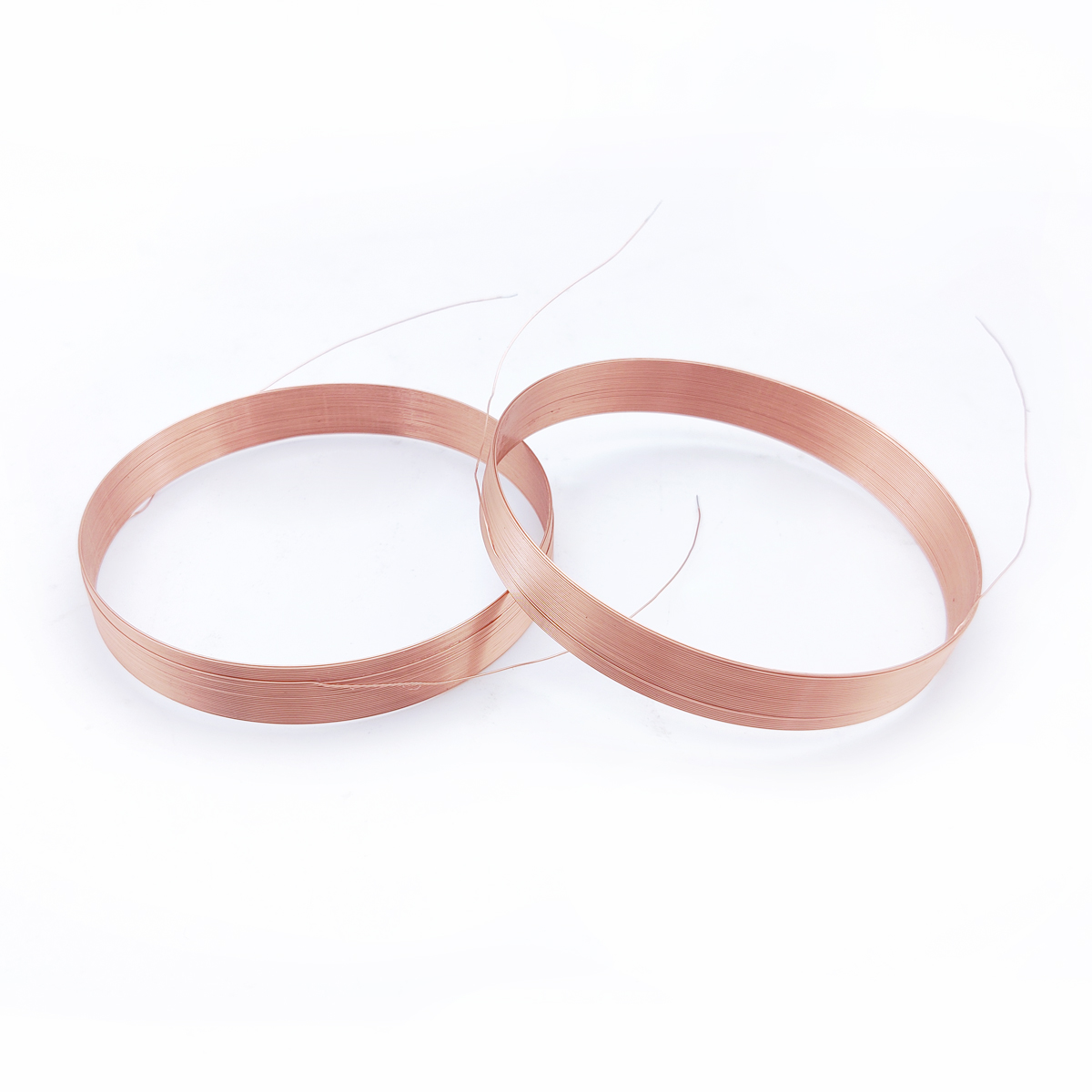

Customized High Quality Wire Copper Coil Air Core Coil Electromagnetic Solenoid Coil

Installation & Usage Notes

1.Avoid excessive extrusion and deformation during installation to prevent winding damage and short circuit.

2.Match the rated voltage and current strictly to avoid overheating and burnout.

3.Keep the coil dry and ventilated to prevent moisture-induced insulation failure.

4. Avoid strong external magnetic field interference to ensure stable inductance and sensing accuracy.

Applications:

1. Precision Solenoid Equipment Matching

Serves as the core winding component for various push-pull and latching solenoids, providing stable electromagnetic driving source to ensure consistent actuator operation.

2. High-Frequency Electronic Sensing System

Adopts air core non-saturation design for high-frequency signal induction and precision sensing, delivering accurate and sensitive electromagnetic signal feedback.

3. Industrial Automated Control Modules

Applied to automated electromagnetic control units, supporting stable energization induction and fast response for long-cycle industrial automation operation.

4. Precision Instrument Electromagnetic Parts

Used for precision testing and measuring instruments, maintaining linear and stable inductance values to guarantee high-precision detection results.

5. Smart Electronic Device Components

Suitable for various smart electronic modules and miniature control devices, featuring low heat, low interference and high stability for long-term standby work.

6. Custom Electromagnetic Mechanical Assembly

Supports non-standard customized winding parameters, perfectly matching special-size and special-performance electromagnetic mechanical assembly requirements.

Specifications:

Competitive Advantage:

1. Excellent Structural Performance This hollow air core coil avoids magnetic saturation and hysteresis loss. It delivers linear inductance, stable magnetic output and great frequency response for precise control.

2. Premium Copper Wire Material Made of high-purity enameled copper wire with uniform winding and low internal resistance. It reduces heat generation and power loss for long-term continuous operation.

3. Full Customization Support It supports customized wire diameter, turns, size, resistance and voltage. It perfectly meets diverse non-standard industrial equipment matching requirements.

4. Superior Durability & Safety Equipped with multi-layer insulation and strict quality inspection. It features voltage resistance and anti-aging performance for stable long-cycle operation.

5. Wide Application Range Lightweight and low-interference, this compact coil has fast response. It is widely applicable for solenoids, precision instruments and automation equipment.

FAQ:

Q1: What is an air core solenoid coil?

It is a hollow copper winding coil without iron core saturation, featuring linear inductance, fast response and stable magnetic field for precision electromagnetic control.

Q2: What material is this coil made of?

It adopts high-purity enameled copper wire with uniform winding and multi-layer insulation, ensuring low resistance, low heat and durable electrical performance.

Q3: Can this solenoid coil be customized?

Yes, full customization is available. Wire diameter, turns, size, resistance and voltage parameters can be tailored to fit different equipment needs.

Q4: What are the advantages of air core structure?

It avoids magnetic saturation and hysteresis loss, provides ultra-linear inductance, high frequency adaptability and stable repeated working performance.

Q5: What are the core product strengths?

It features low power consumption, low temperature rise, low magnetic interference, high insulation and consistent batch stability for long-term operation.

Q6: What industries is this coil suitable for?

It is widely applied in solenoid actuators, precision instruments, high-frequency sensing, smart electronics and industrial automation equipment.
