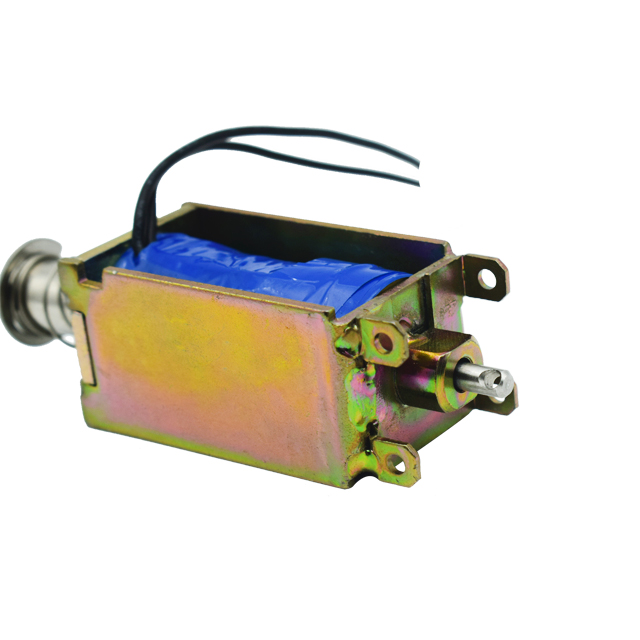

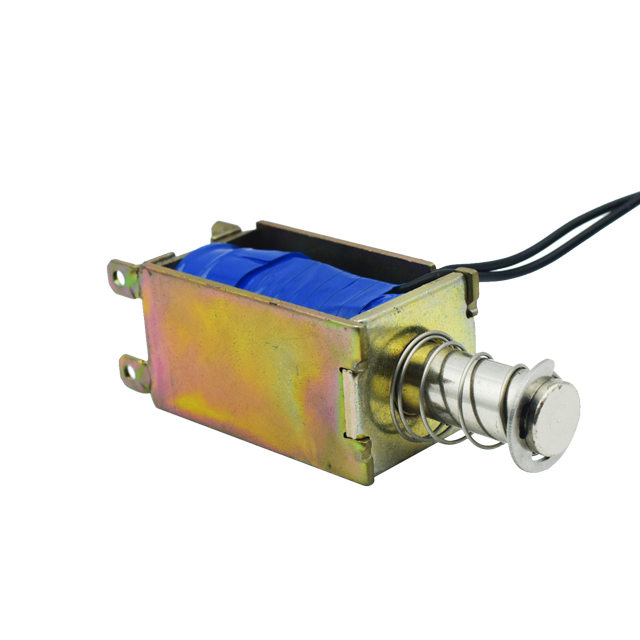

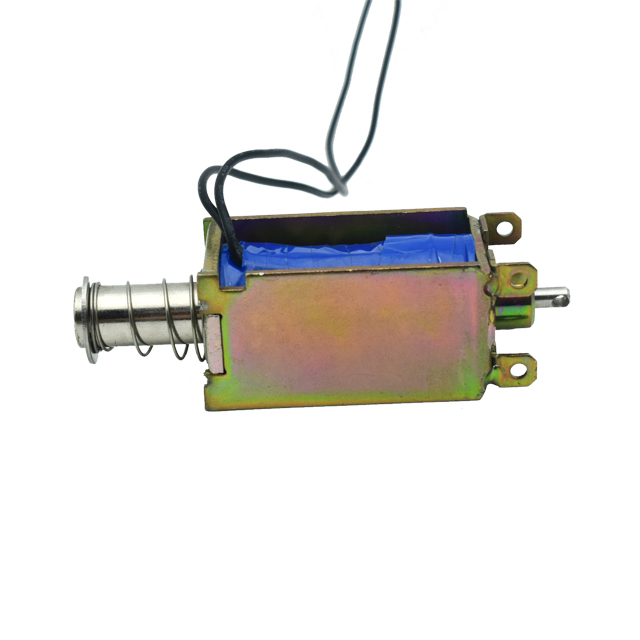

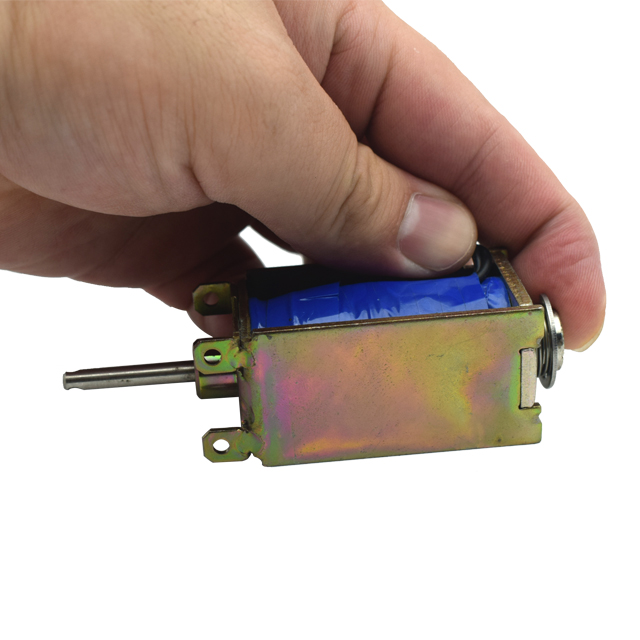

Landa SQ1253 Dc 12v 24v Open Frame Solenoid 5mm Stroke Push Pull Solenoid

Description:

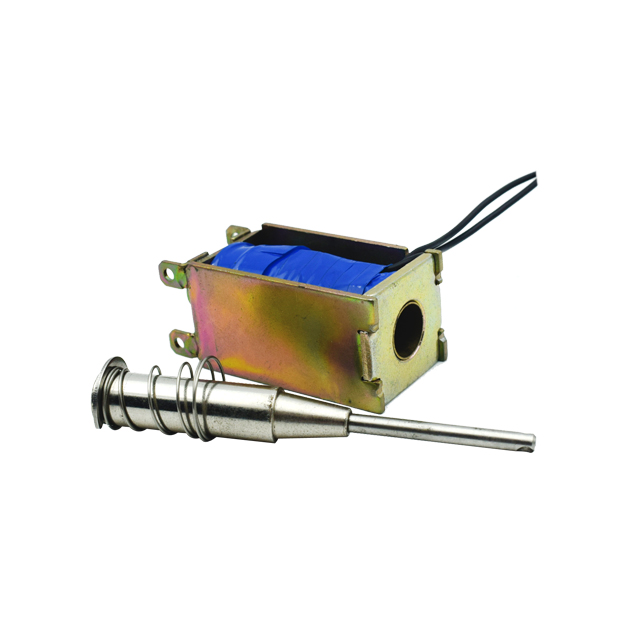

1. Push-pull type, linear motion, plunger spring reset, DC solenoid electromagnet.

2. DC Solenoid electromagnets are mainly used in vending machines, transportation equipment, office equipment, household appliances, machinery, etc.

3. The solenoid works externally by pushing and pulling the plunger, and when energized, it works by pushing and pulling the plunger to connect the object.

4. Open frame structure with mounting holes, accepted custom as you needed.

Applications:

1. Medium-Stroke Automated Linear Actuation

Features 0-12mm long stroke to provide stable push-pull linear motion, suitable for medium-travel driving demands of small and medium automated equipment.

2. Industrial Electromagnetic Lock & Latch Driving

Serves as the core driving component for industrial equipment locks and safety latches, achieving sensitive and reliable locking and unlocking actions.

3. Precision Testing Equipment Positioning

Applied to precision detection and testing instruments for workpiece positioning, ejection and reset, ensuring accurate and consistent mechanical motion.

4. Automated Assembly Line Processing

Used for clamping, shifting and discharging workpieces on assembly lines. 10%-100% wide duty cycle adapts to continuous and intermittent cyclic operation.

5. Intelligent Mechanical Equipment Execution

With 7.2-72W wide power range, it matches diverse medium-load driving requirements for smart automation devices and mechanical modules.

6. Micro Valve & Switch Control System

Controls opening and closing of industrial micro valves and mechanical switches. The open-frame structure delivers superior heat dissipation and long-term stable operation.

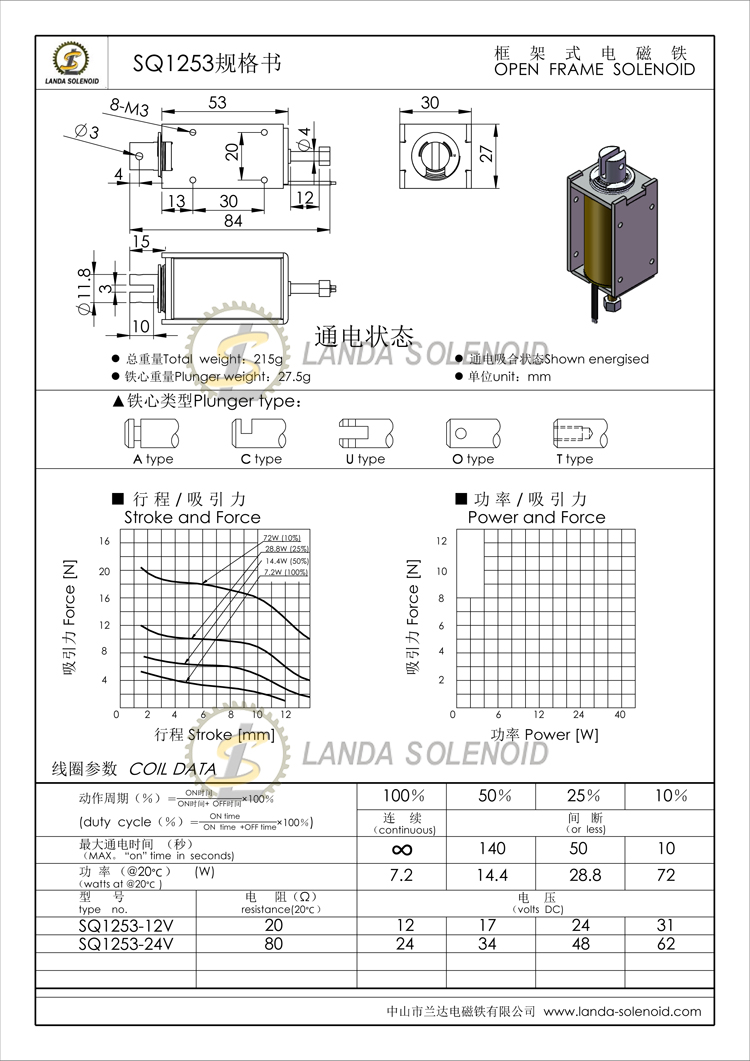

Specifications:

Competitive Advantage:

1. Low Residual Magnetism Optional ejector pins and matching armature plates eliminate residual magnetism, enabling instant, zero-sticking release for precise, repeatable operation.

2. Mini Compact & Stable Suction Space-saving round mini size fits narrow installation spaces, providing concentrated, steady suction to fix workpieces firmly without slipping.

3. IP65 Waterproof & Durable IP65 dustproof and waterproof grade ensures stable performance against moisture and dust, adapting to harsh industrial environments.

4. Strong Compatibility & Customization Standard 12V/24V DC voltage supports most automation systems. Custom shapes and power-on-release functions meet diverse personalized needs.

5. Low Power & Maintenance-Free Featuring sensitive response, low heat generation and low power consumption. Its simple structure ensures long service life and reduces operating costs.

FAQ:

Q1: What is the working type and stroke of SQ1253 solenoid?

It is an open-frame push-pull solenoid with an adjustable 0-12mm stroke, supporting medium-stroke precise linear motion control.

Q2: What voltage options does this solenoid support?

It supports 12V and 24V DC voltage input, both delivering stable and consistent push-pull driving performance.

Q3: What are the power and duty cycle parameters?

It has an adjustable power range of 7.2W-72W and 10%-100% duty cycle, adaptable to intermittent and long-term continuous work.

Q4: What are the core advantages of open-frame design?

The open-frame structure achieves efficient heat dissipation, low temperature rise and high stability for long-cycle industrial operation.

Q5: What is the installation specification of this product?

It is equipped with 8-M3 mounting holes, enabling flexible, multi-angle and firm installation for various automated equipment.

Q6: How about the product material and safety performance?

Constructed with high-quality iron and magnetic coil for stable driving force. Class B insulation ensures safe and reliable industrial operation.
