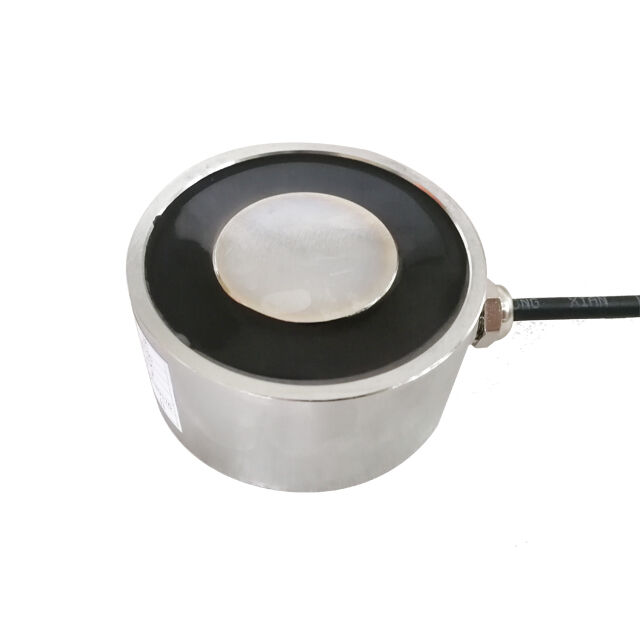

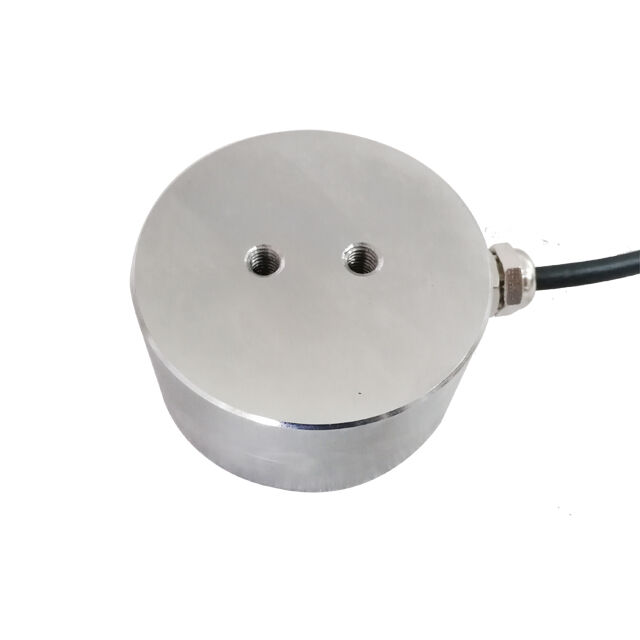

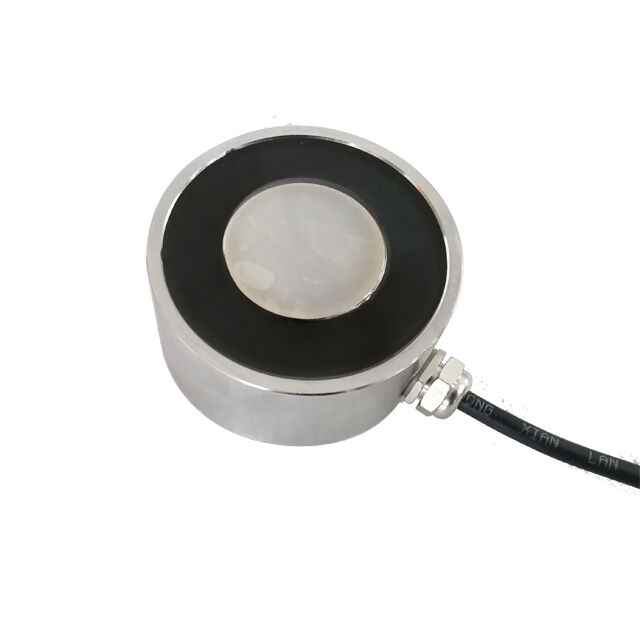

Landa H8040 Dc 12v 24v 140Kgs Holding Force Electromagnet

Description:

1.Holding type, round shape, mini size, ip65 waterproof, DC electromagnet, 12v 24v standard voltage, accepted custom

2.The mini round electromagnet need to be energised to develop suction force and deenergised release, widely used for holding of ferromagnetic workpieces during machining or assembly, safety mechanisms, selector devices in textiles machinery, door latching holdback devices and etc.

3.Energised-on-holding, and release deenergised. We also offer an optional spring loaded ejector pin to overcome residual magnetism, as well as optional armature plates as a magnetic counterpart for optimum performance.

4.Also offer custom shape and supply power on release mini dc electromagnet.

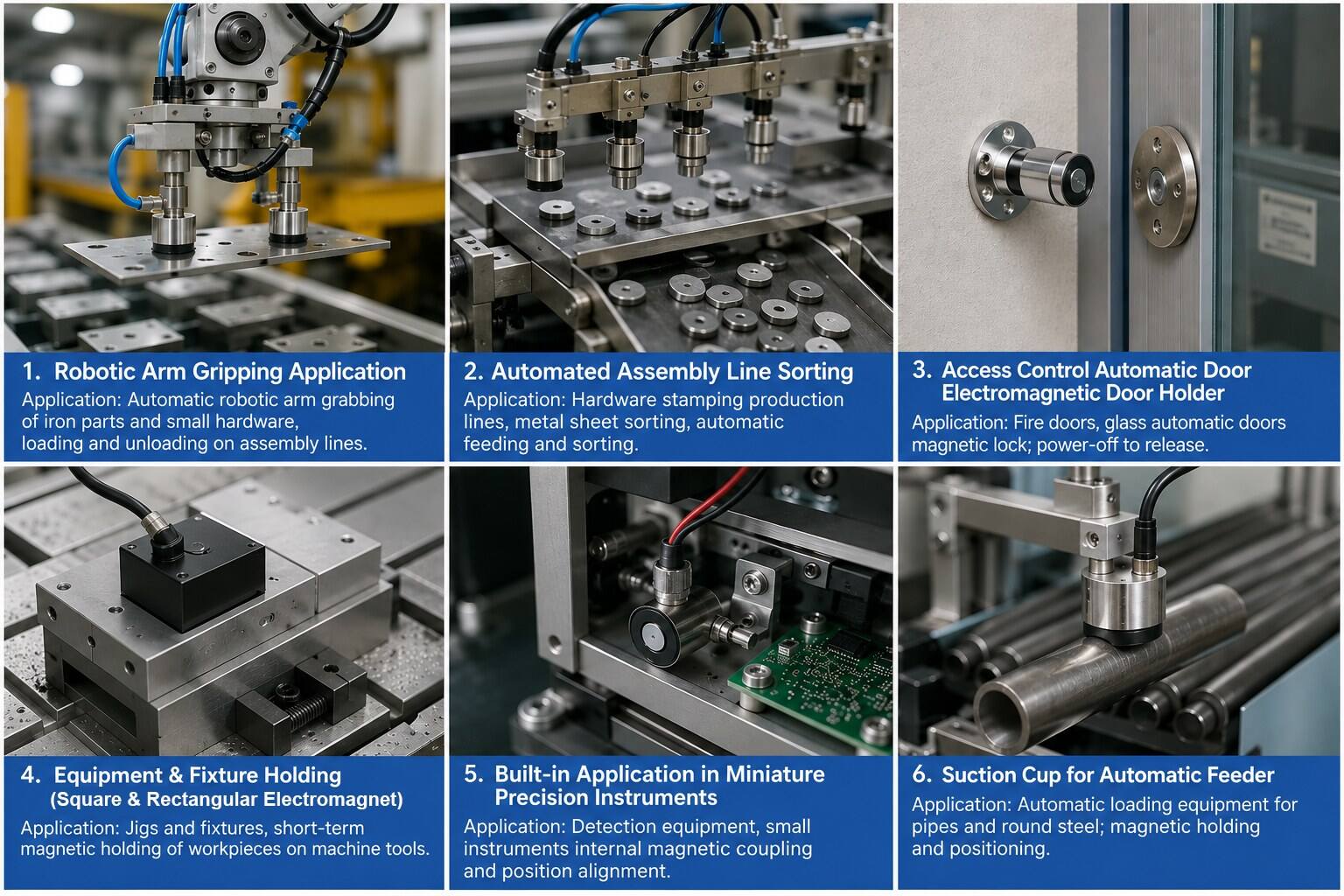

Applications:

1：Robot arm picking small metal parts

Mini holding electromagnet installed on automated robotic arm, picking iron accessories in assembly production line; power-off keep suction, power on release, widely used for automatic loading & unloading.

2：Automatic sorting production line

Electromagnetic chuck fixed on sorting machine for iron sheet separation and material classification, low power standby, no heating for long-time holding.

3：Fire door magnetic door holder

Small holding magnet for fire safety door retainer, keep door closed by permanent suction when power off, instantly release while energized for emergency opening.

4：CNC fixture workpiece fixing

Compact holding electromagnet embedded in machining fixture, fast fixing steel workpiece during processing, replace traditional mechanical clamping structure.

5：Precision testing equipment internal assembly

Micro round holding magnet built inside inspection instruments for component positioning and temporary locking, small size with stable adsorption force.

6：Automatic feeder metal positioning

Holding electromagnet equipped on auto feeding machine to fix round steel and hardware raw materials, realize intermittent feeding control.

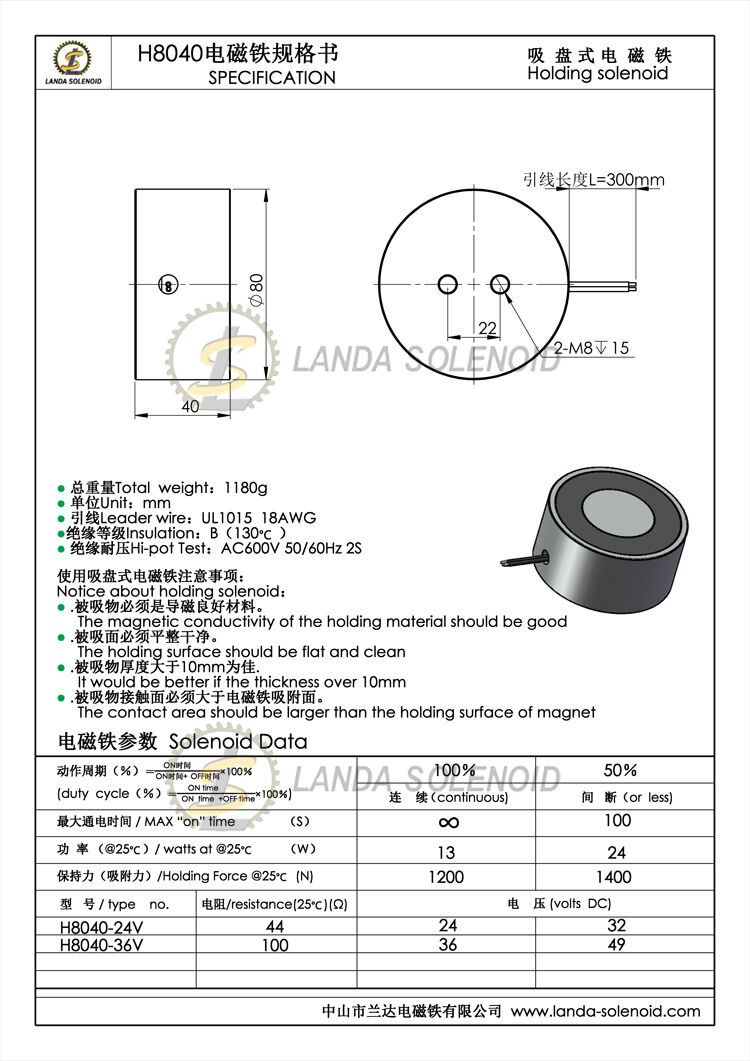

Specifications:

Competitive Advantage:

1. Low Residual Magnetism Optional ejector pins and matching armature plates eliminate residual magnetism, enabling instant, zero-sticking release for precise, repeatable operation.

2. Mini Compact & Stable Suction Space-saving round mini size fits narrow installation spaces, providing concentrated, steady suction to fix workpieces firmly without slipping.

3. IP65 Waterproof & Durable IP65 dustproof and waterproof grade ensures stable performance against moisture and dust, adapting to harsh industrial environments.

4. Strong Compatibility & Customization Standard 12V/24V DC voltage supports most automation systems. Custom shapes and power-on-release functions meet diverse personalized needs.

5. Low Power & Maintenance-Free Featuring sensitive response, low heat generation and low power consumption. Its simple structure ensures long service life and reduces operating costs.

FAQ

1. What are the core specifications of the H8040 electromagnet?

The H8040 is a round DC holding electromagnet with a 120kg-140kg strong holding force. It supports standard 12V, 24V and 36V DC voltages, and supports personalized custom parameters to meet diverse usage needs.

2. What is the working principle of the H8040 electromagnet?

It adopts power-on holding and power-off release working mode.

3. What optional accessories and upgrades are available?

We provide optional spring-loaded ejector pins to eliminate residual magnetism and ensure thorough workpiece release. Matching armature plates are also available as supporting accessories to optimize the overall adsorption performance and operating stability.

4. What are the main application scenarios?

This waterproof electromagnet is widely used for metal lifting, workpiece locking and fixing. It fits machining and assembly positioning, textile machinery selector devices, safety mechanism control, and door latching holdback systems perfectly.

5. Does Landa support customized services for this model?

Yes, comprehensive customization is supported. We can customize special shapes and parameters for the H8040 model.

6. What are the product advantages of H8040?

It stable 120kg-140kg holding force and mini compact structure. With reliable power-on holding performance, optional anti-residual magnetism parts and flexible customization, it adapts to various complex indoor and outdoor working environments.
