Landa XH3530 Permanent Holding Electromagnet 150N High Capacity Magnetic Lifter for Automatic Mechanical Equipment
Place of Origin: Zhongshan
Brand Name: Landa
Model Number: XH3530
Certification: CE, RoHS, REACH, UL,ISO9001,ISO14001
Minimum Order Quantity: 2pcs
Packaging Details: 35*31*18CM/CTN
Delivery Time: 7-15days
Payment Terms: 100% payment before production
Supply Ability: 50000units/per a week
Appurtenance:

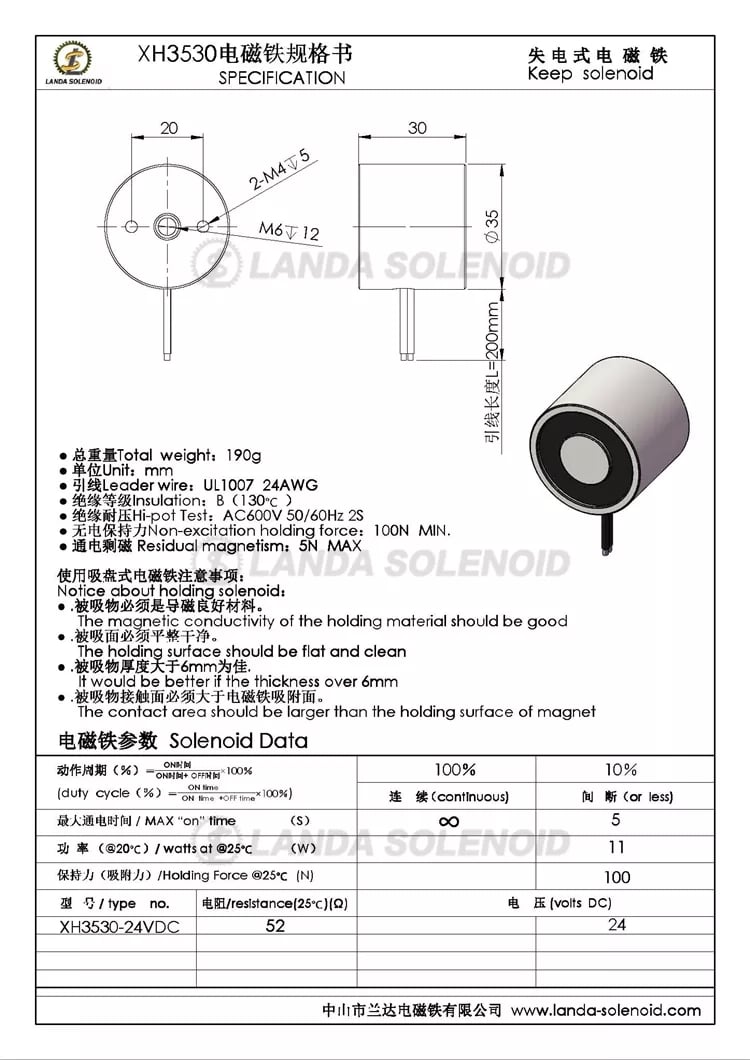

Drawing download:
- Overview
- Advantage and Applicaton
- Recommended Products
Products Specifications | |||
Brand |
Landa |
Product Series |
Permanent electromagnet |
Model |
XH3530 |
Voltage |
24v dc |
Power |
11w |
Force |
150N |
Residual magnetism |
≤5N |
Duty Cycle |
10% |
Cable Length |
200mm or customization |
Materials |
steel & enamelled wire |
Action Form |
Holding type |
Weight (N.W.) |
0.19kg |
Install style |
Screw |
Thread size & Deepth(mm) |
2-M4,5 OR M6,12 |
Hi-Pot Test |
AC 600V 50/60Hz 2s |
Insulation Class |
B |
Packaging details | |||
Body size(mm) |
D35*H30 mm |
Packaging box size(cm) |
standard:21*14*13(cm), custom accepted |

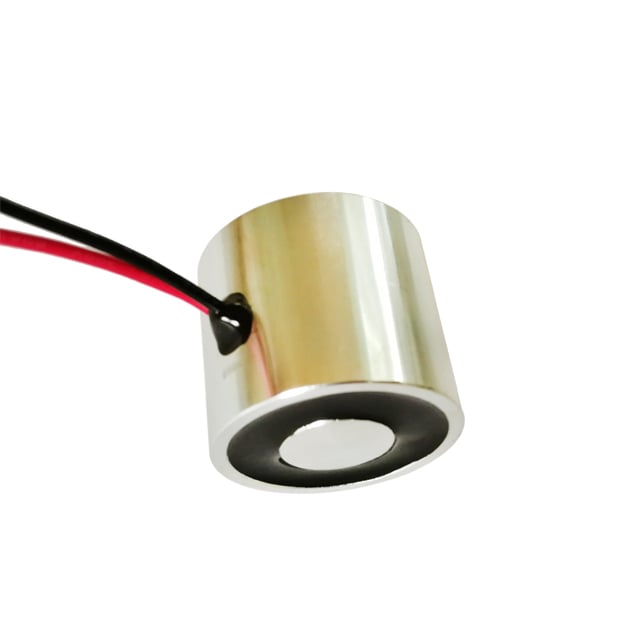

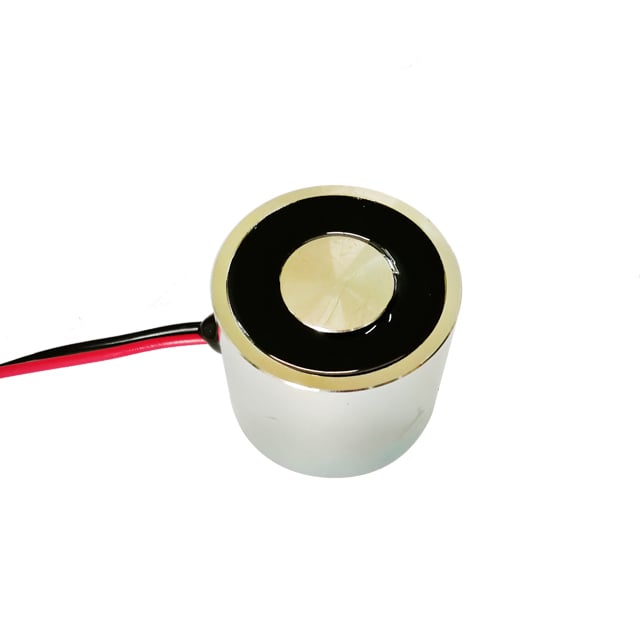

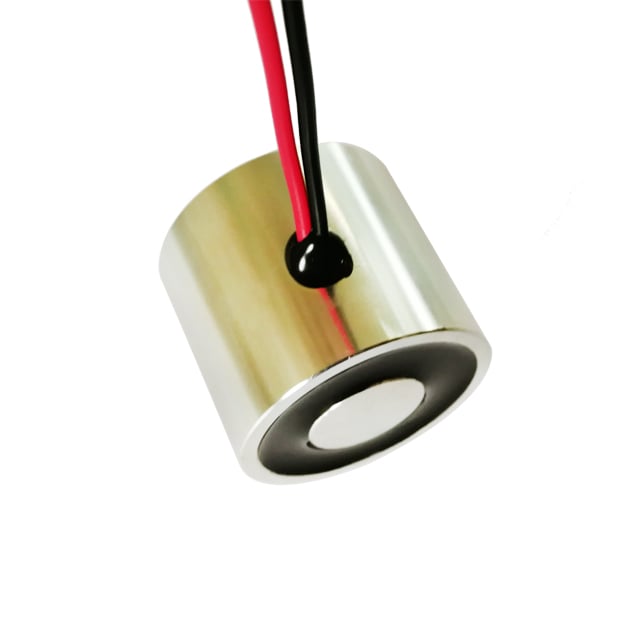

1.Holding type, round shape, mini size, IP65 waterproof, DC solenoid electromagnet.
2.The permanent electromagnet is energised to release, widely used for holding of ferromagnetic workpieces during machining or

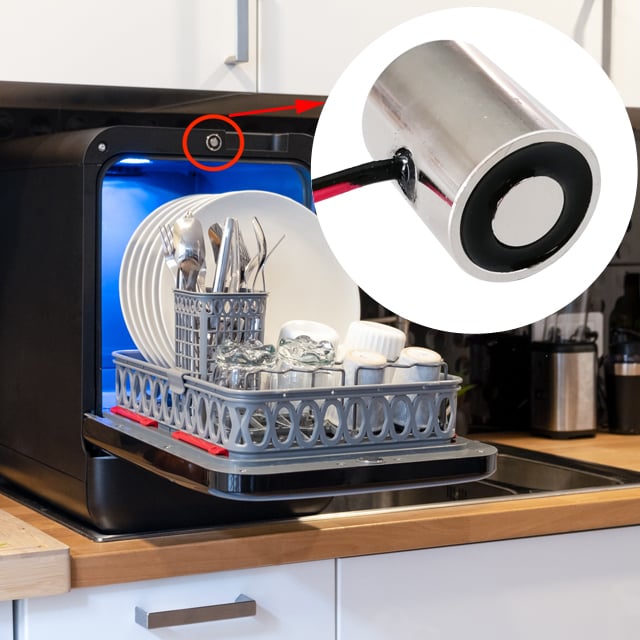

assembly, safety mechanisms, selector devices in textiles machinery, door latching holdback devices and etc.
3.Energised to release, and holding deenergised. We also offer an optional spring loaded ejector pin to overcome residual
magnetism, as well as optional armature plates as a magnetic counterpart for optimum performance.
4.Also offer custom shape and energise to release electromagnet
2.The permanent electromagnet is energised to release, widely used for holding of ferromagnetic workpieces during machining or
assembly, safety mechanisms, selector devices in textiles machinery, door latching holdback devices and etc.
3.Energised to release, and holding deenergised. We also offer an optional spring loaded ejector pin to overcome residual
magnetism, as well as optional armature plates as a magnetic counterpart for optimum performance.
4.Also offer custom shape and energise to release electromagnet
Advantages
1. Advanced Electro-Permanent Energy-Saving Working Principle
Landa XH3530 is a high-performance electro-permanent holding electromagnet that integrates electromagnetic control and permanent magnetic retention. It only requires a momentary pulse current to complete magnetization and demagnetization switching. No continuous power supply is needed during long-term holding status, achieving zero power consumption and zero heat generation. It completely solves the overheating and high-energy-consumption pain points of traditional continuous-power electromagnets.
2. Stable 150N High-Capacity Holding Force
Featuring optimized magnetic circuit structure and high-grade permanent magnetic materials, this magnet delivers stable 150N strong holding capacity. The suction surface features uniform and concentrated magnetic field distribution, ensuring firm and non-slip adsorption of medium-sized ferromagnetic workpieces. It maintains consistent holding performance without magnetic attenuation during long-cycle mechanical operation.
3. Excellent Industrial Continuous Working Stability
Specially optimized for automatic mechanical equipment working conditions. With anti-aging magnetic materials and fully sealed insulation structure, it supports long-term high-frequency cyclic magnetizing and demagnetizing. No thermal fatigue or force drop occurs during 24/7 continuous operation, providing ultra-stable magnetic holding power for automated mechanical systems.
4. High Safety Power-Off Holding Design
Different from ordinary electromagnets that fail after power cut, this permanent magnet keeps stable holding force permanently after power off. It effectively prevents workpiece falling and equipment accidents caused by sudden power failure or circuit failure, greatly improving the operational safety and stability of automatic mechanical equipment.
5. Compact Structure & Easy Equipment Integration
Adopts precision integrated body design with reasonable structural layout. It supports flexible installation methods and reserves standard mounting positions. The compact size adapts to various narrow mechanical installation spaces, convenient for seamless embedding into automated machinery, fixture systems and robotic auxiliary mechanisms.
Application
1. Automatic Mechanical Workpiece Fixing
Widely used for magnetic positioning and stable clamping of medium-sized metal parts in automated machining machinery, ensuring zero displacement during mechanical operation and improving overall processing accuracy.
2. Robotic Arm Auxiliary Lifting & Handling
Serves as high-stability magnetic end effector for industrial robotic arms, responsible for grabbing, lifting and transferring medium-load ferromagnetic components in automated handling stations.
3. Automated Fixture & Tooling Positioning System
Applied to automated jigs and mechanical positioning mechanisms. It provides reliable magnetic holding force for workpiece temporary fixing during assembly, testing and grinding processes of automatic equipment.
4. Intelligent Packaging & Sorting Machinery
Matched with automatic packaging machines, sorting equipment and conveyor machinery. It realizes fast adsorption and release of metal tooling and mechanical accessories to support high-efficiency automated production rhythm.
5. Precision Industrial Testing Equipment
Used for stable auxiliary fixing of metal detection parts in automated precision testing and screening equipment, avoiding detection errors caused by workpiece displacement and ensuring accurate test data.
6. Non-Standard Custom Automation Machinery
Perfect for customized automatic mechanical equipment requiring medium-load, long-term holding and energy-saving operation. It provides stable and reliable magnetic lifting and fixing solutions for various special automated devices.
FAQ
Q1: What is the rated holding force of Landa XH3530 electromagnet?
This electro-permanent magnet features a standard stable holding force of 150N, belonging to high-capacity miniature magnetic lifter. It is specially designed for medium-load fixing and handling scenarios of automatic mechanical equipment.
Q2: What is the working principle difference from ordinary electromagnets?
Ordinary electromagnets require continuous power supply and easily overheat. XH3530 only uses instantaneous current for switching, and maintains permanent holding force with zero power and zero heat after power off, featuring higher safety and lower energy consumption.
Q3: Can this magnet work continuously for long mechanical cycles?
Yes. Adopting high-stability permanent magnetic core and anti-fatigue structural design, it supports long-term high-frequency repeated magnetization and demagnetization. No magnetic attenuation or performance failure occurs during long-cycle automatic mechanical operation.
Q4: Is it safe in case of sudden power failure?
Absolutely safe. The core advantage of electro-permanent magnet is power-off holding. Once power is cut off accidentally, the workpiece remains firmly adsorbed, effectively preventing falling accidents and protecting automatic mechanical equipment operation safety.
Q5: What kinds of workpieces is this magnetic lifter suitable for?
It is mainly applicable to flat ferromagnetic workpieces such as medium-sized iron sheets, steel parts, hardware accessories and mechanical iron components, widely used in automatic mechanical fixing and handling processes.
Q6: Does Landa support customization for this model?
Yes. We support customized suction force, switching parameters, mounting structure and wire length according to different automatic mechanical equipment requirements, providing personalized non-standard magnetic holding solutions.
