Landa XH5004035 Holding Force 500Kg Electro Control Permanent Electromagnet
Place of Origin: Zhongshan
Brand Name: Landa
Model Number: XH5004035
Certification: CE, RoHS, REACH, UL,ISO9001,ISO14001
Minimum Order Quantity: 2pcs
Packaging Details: 35*31*18CM/CTN
Delivery Time: 7-15days
Payment Terms: 100% payment before production
Supply Ability: 50000units/per a week
Appurtenance:

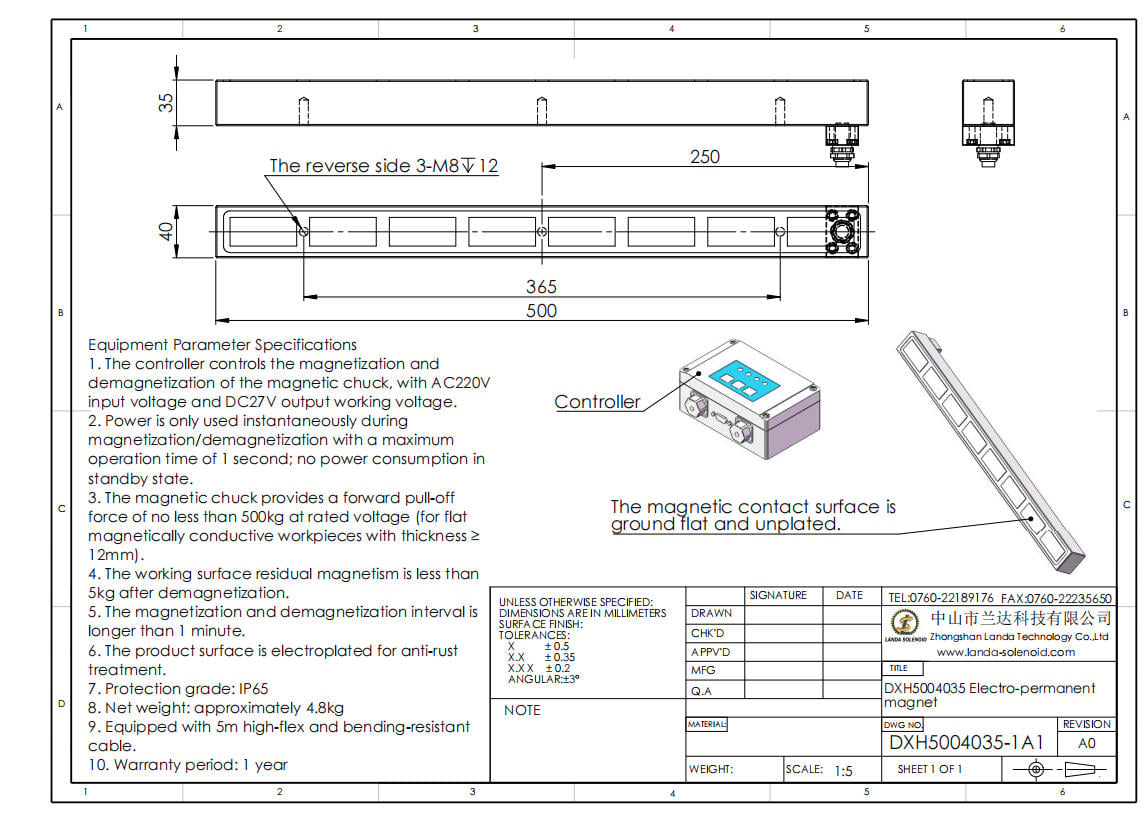

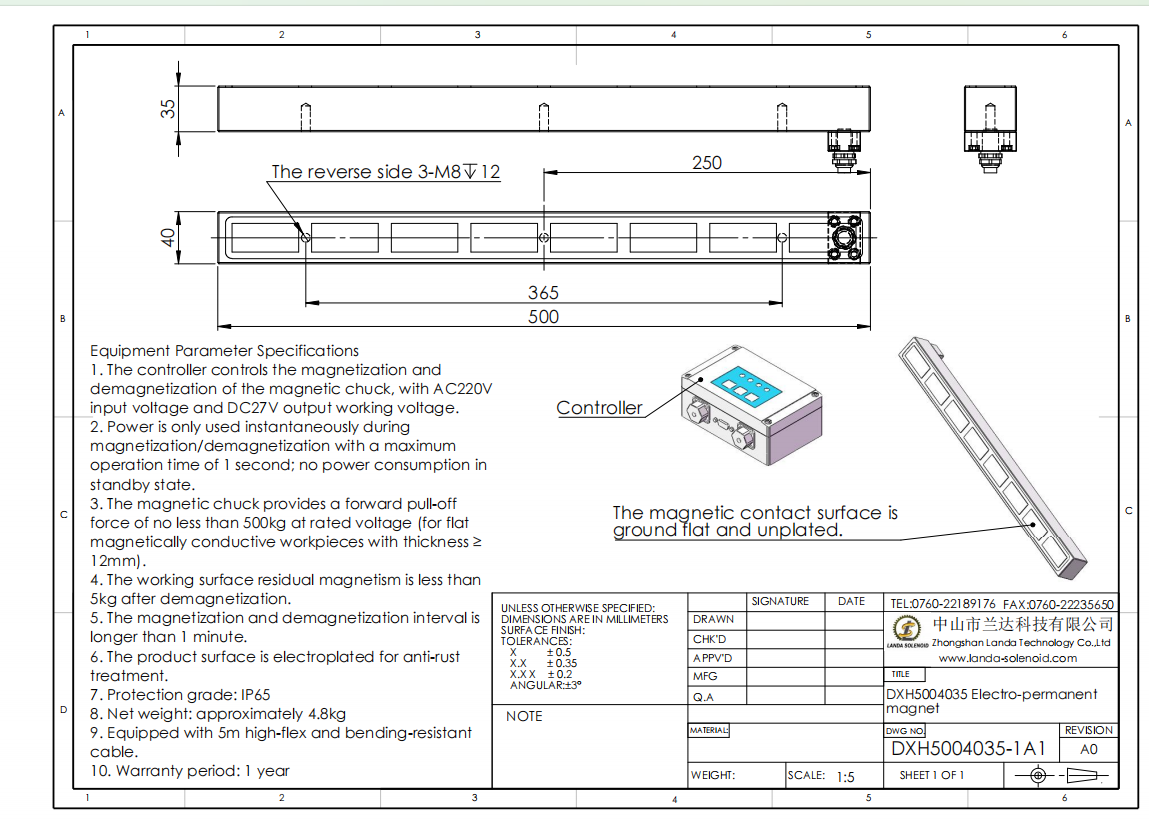

Drawing download:
- Overview
- Recommended Products
| Specifications | |||
| Brand | Landa | Product Name | 500Kg Electro Control Permanent Electromagnet |
| Model | DXH5004035 | Rated Voltage | AC220v、AC380v |
| Power | / | Force | 5000N |
| Waterproof Class | IP65 | Duty Cycle | 10% |
| Cable Length | 5m | Material | Metal, Electronic Parts |
| Action Form | Holding type | Weight(N.W.) | / |
| Install Style | Screw | Thread Size & Deepth(mm) | 3-M8,12 |
| Hi-Pot Test | AC 600V 50/60Hz 2s | Insulation Class | B |
| Packaging Details | |||
| Body Size | 500*40*35(mm) | Carton Box Size(Standard) | 350*310*180(mm), accepted custom |
Product Features
1.Rectangular shape, IP65 waterproof, AC applied, Structure can be customized
2.The electric control permanent electromagnet using electronic control system regulates and switches the distribution of the internal magnetic circuit, allowing the permanent magnet field to self-balance within the system to achieve either the “ON” (clamped state) or “OFF” (released state).
3.The system is powered only during the brief moment (1–2 seconds) when it is magnetized (ON) or demagnetized (OFF); it does not require power while in operation.
4.Widely used in metal cutting, robot end-effectors, quick changeovers, lifting and handling, welding clamping, and other applications.
2.The electric control permanent electromagnet using electronic control system regulates and switches the distribution of the internal magnetic circuit, allowing the permanent magnet field to self-balance within the system to achieve either the “ON” (clamped state) or “OFF” (released state).
3.The system is powered only during the brief moment (1–2 seconds) when it is magnetized (ON) or demagnetized (OFF); it does not require power while in operation.
4.Widely used in metal cutting, robot end-effectors, quick changeovers, lifting and handling, welding clamping, and other applications.
Advantages
1. Electro-Permanent Magnetic Dual Working Principle
Different from ordinary DC electromagnets, this XH5004035 electro control permanent magnet adopts electric excitation switching and permanent magnetic retention technology. It only requires instantaneous power pulse for magnetization and demagnetization, realizing power-off permanent holding without continuous power supply.
2. 500KG Ultra-Stable Rated Holding Force
This model features a standard 500kg strong holding capacity with uniform magnetic field distribution. It provides ultra-firm adsorption for flat ferromagnetic workpieces, ensuring no slipping or force attenuation during long-term static holding.
3. Ultra-Low Energy Consumption & Zero Heat Generation
No continuous power operation is needed after magnetization. It completely eliminates heating problems of traditional electromagnets, achieving zero power consumption, zero heat and low operating cost during long-time holding status.
4. Fast Response & High Working Efficiency
Supports instantaneous magnetizing and demagnetizing within milliseconds. The electric control switching action is sensitive and accurate, adapting to high-frequency cyclic grabbing, fixing and releasing operations of automated production lines.
5. Industrial-Grade Safety & Long Service Life
Adopts high-performance permanent magnetic materials and integrated sealing structure. It features shock resistance, corrosion resistance and anti-aging properties. No magnetic fading occurs after long-term operation, ensuring high safety and stable batch consistency for industrial applications.
Application
1. CNC Machining Workpiece Fixing
Widely used for rapid clamping and positioning of steel plates and metal workpieces in CNC machine tools. It provides uniform adsorption force, effectively avoiding workpiece deformation and improving machining precision.
2. Automated Production Line Handling
Applied to robotic arm grabbing and automated material handling equipment. It realizes fast switching of adsorption and release, greatly improving the operating efficiency of intelligent production lines.
3. Mold & Hardware Processing Industry
Serves as high-stability clamping equipment for mold processing, hardware cutting and grinding. It maintains zero-displacement fixing during high-speed processing to guarantee product yield.
4. Intelligent Logistics & Warehousing
Matched with intelligent sorting and lifting equipment. It stably adsorbs and transports medium-weight metal materials, solving the energy consumption and overheating problems of traditional electromagnetic fixtures.
5. Mechanical Assembly & Testing Equipment
Used for temporary fixing and positioning of metal parts in mechanical assembly and precision testing processes. It ensures stable clamping status and provides accurate operating conditions for testing work.
6. Custom Industrial Automation Devices
Perfect for various energy-saving and high-stability industrial automation scenarios. It is an ideal energy-saving replacement for traditional continuously powered electromagnets for long-cycle holding work.
FAQ
Q1: What is an electro control permanent electromagnet?
It is a new energy-saving magnetic holding component combining electric control and permanent magnet. It uses instantaneous current to switch magnetic status and maintains permanent adsorption after power off, different from conventional electromagnets.
Q2: What is the rated holding force of XH5004035?
This Landa XH5004035 electro-permanent magnet has a standard stable holding force of 500kg, suitable for medium and heavy-load metal workpiece fixing, lifting and handling scenarios.
Q3: Does it need continuous power supply during working?
No. Only a momentary pulse current is required for magnetization and demagnetization. It keeps strong holding force with zero power consumption and zero heat generation during long-term static operation.
Q4: What are the advantages compared with ordinary electromagnets?
It solves the pain points of continuous power consumption, serious heat generation and easy aging of traditional electromagnets. It features energy saving, safety, stability and longer service life.
Q5: What workpieces is this permanent magnet suitable for?
It is mainly applicable to flat ferromagnetic metal workpieces such as steel plates, iron blocks and hardware profiles, widely used in machining, handling and clamping scenarios.
Q6: Can this product support long-term high-frequency operation?
Yes. With no heat accumulation and stable magnetic performance, it supports long-term high-frequency cyclic magnetization and demagnetization, maintaining consistent working efficiency without performance degradation.
