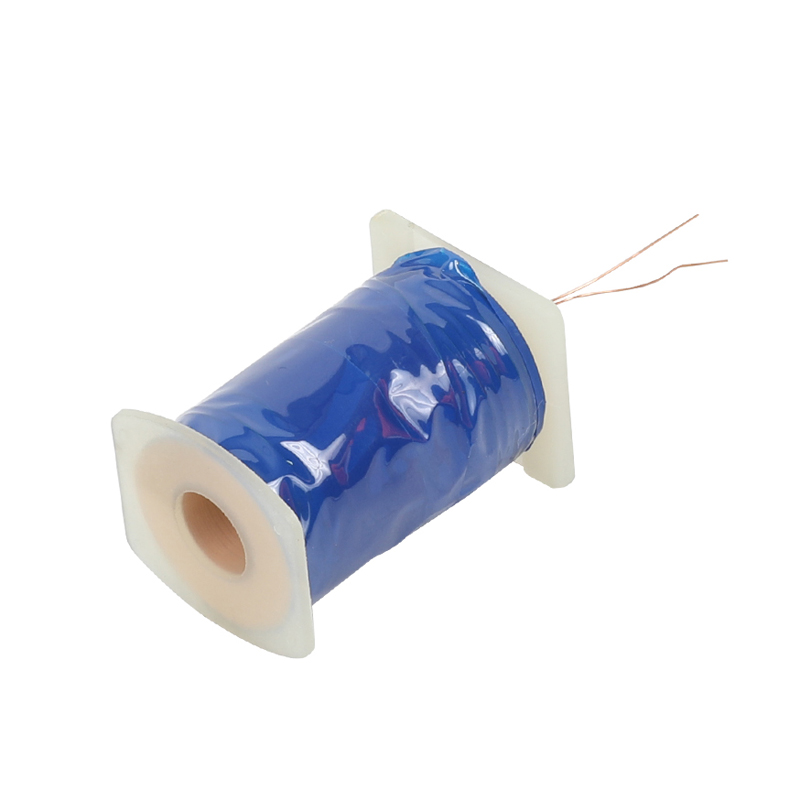

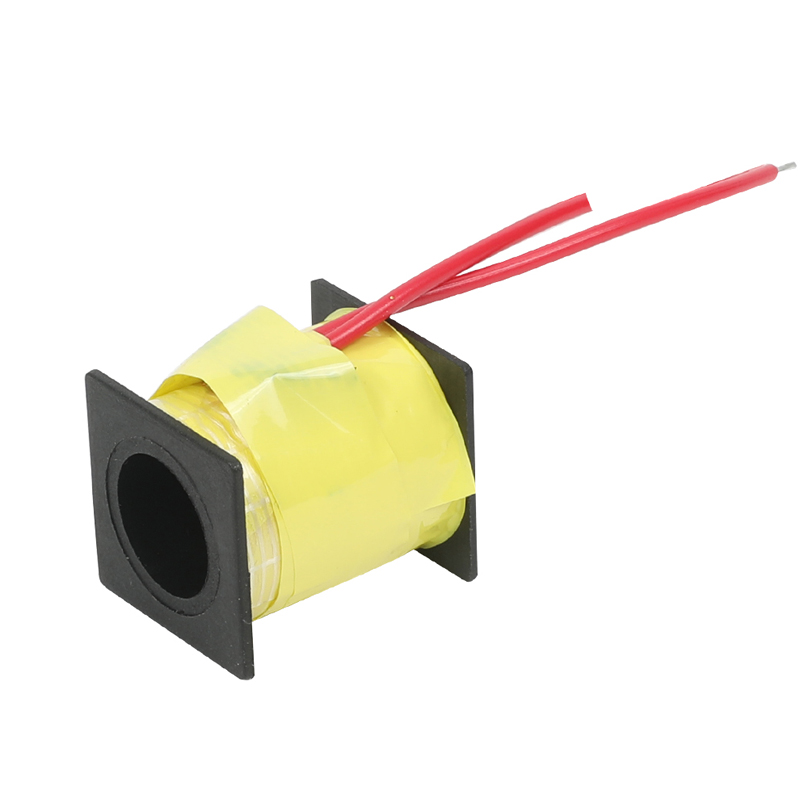

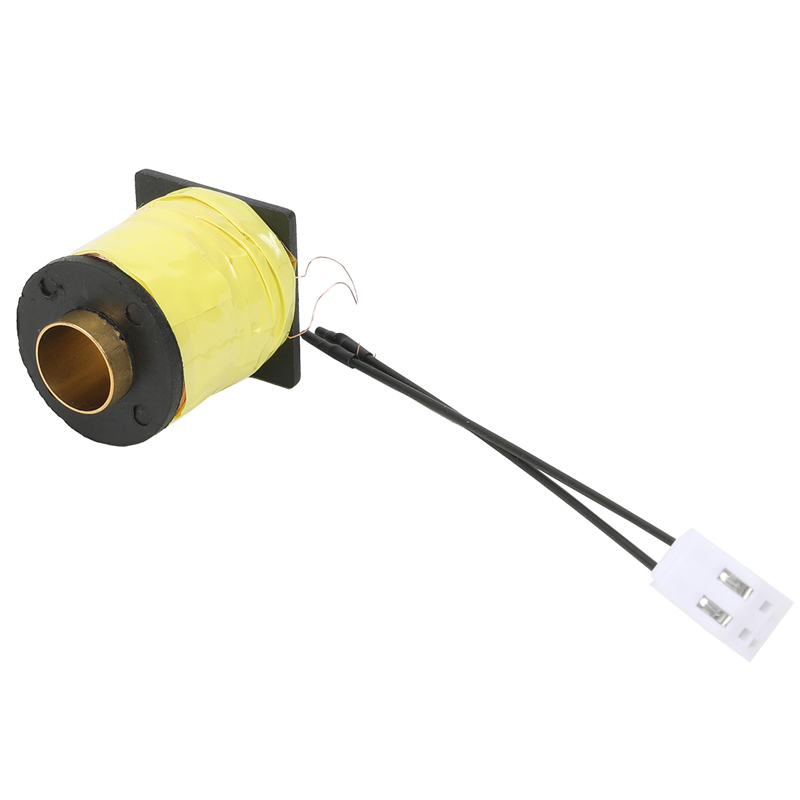

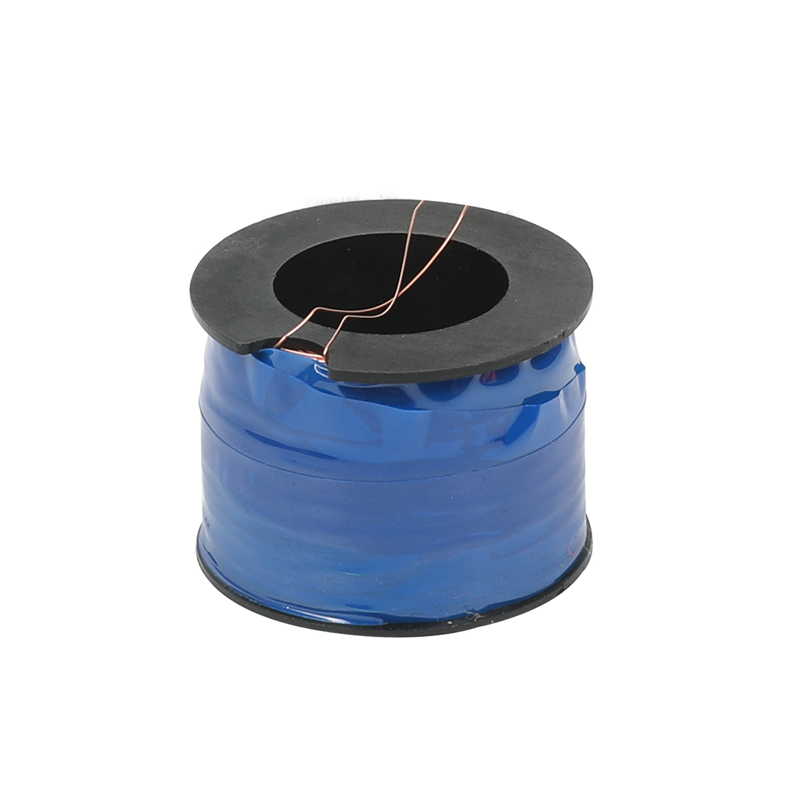

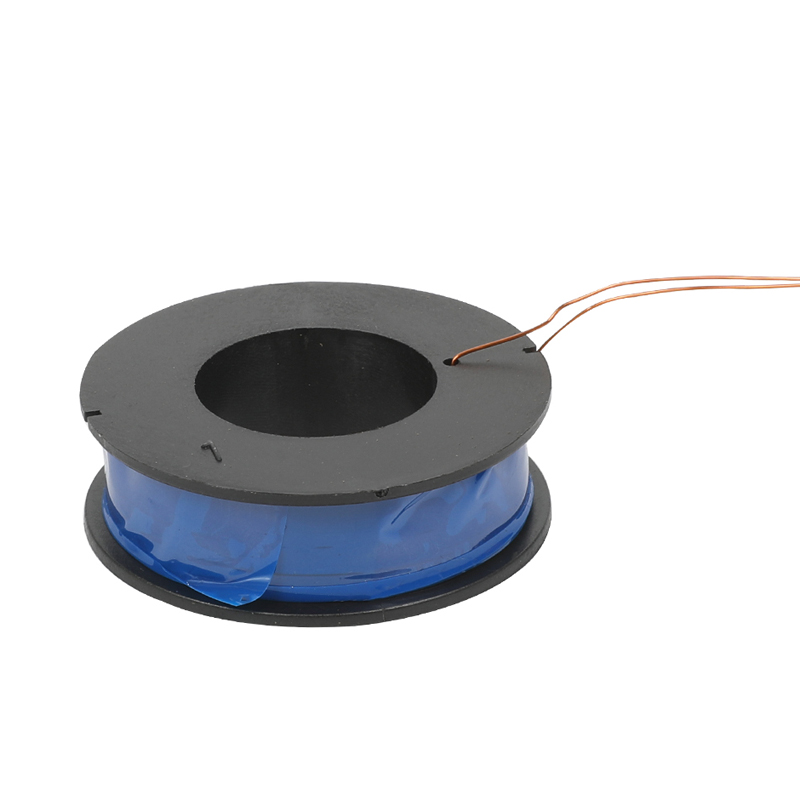

OEM Precision Bobbin Core Coil Solenoid Coil Former Injection Molded Bobbin for Automation Equipment
Place of Origin: Zhongshan
Brand Name: Landa
Model Number: Custom
Certification: CE, RoHS, REACH, UL,ISO9001,ISO14001
Minimum Order Quantity: 2pcs
Packaging Details: 35*31*18CM/CTN
Delivery Time: 7-15days
Payment Terms: 100% payment before production
Supply Ability: 50000units/per a week
- Overview
- Recommended Products

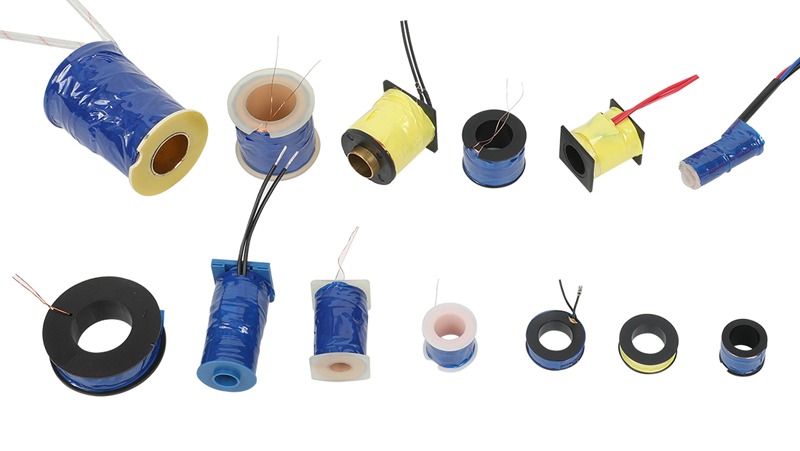

Factory wholesales Air Core Coils, Bobbin Coils,Antenna Receiver Coils, Induction Coils, Magnetic Coils, Ferrite Core Coils,Self-adhesive Coils
Custom shape, Custom Specification, Source Factory, OEM/ODM, Timely Delivery
Products Description
Advantages
1. High-Precision Injection Molding Structure
Adopts professional precision injection molding technology to form integrated bobbin structure with accurate dimensional tolerance, smooth winding grooves and neat shaping edges. The standardized molded bobbin completely avoids deformation, burrs and dimensional deviation, providing perfect positioning foundation for solenoid coil winding and assembly.
2. Reliable Insulation & Industrial-Grade Material
Made of high-quality flame-retardant and high-temperature resistant engineering plastic materials. The molded bobbin features excellent electrical insulation, voltage resistance and anti-aging performance. It can withstand long-term high-frequency electromagnetic operation and temperature fluctuation without insulation failure.
3. Professional OEM Customization Capability
Supports full OEM personalized development including custom shapes, sizes, pin positions, groove structures and mounting holes. The professional mold development team can customize non-standard bobbin former solutions according to customer drawings, samples and automation equipment matching requirements.
4. Optimized Winding & Assembly Adaptability
Precision grooved design ensures uniform wire arrangement, neat winding and stable coil shaping. The standardized structural design improves winding efficiency, reduces wire damage and magnetic leakage, and fits fully automatic winding machines and automated assembly production lines.
5. Stable Batch Consistency & Long Durability
Mass-produced by standardized injection molding process with strict dimensional and appearance inspection. All bobbin cores maintain ultra-high batch consistency, ensuring stable electromagnetic parameters of finished solenoid coils and long-term fatigue resistance in automated equipment operation.
Application
1. Industrial Automation Solenoid Components
Serves as the core insulating skeleton for various industrial solenoid coils, electromagnetic valves and push-pull solenoids. It supports stable long-term operation of automated control and executive components.
2. Precision Inductor & Sensor Coils
Applied to miniature inductors, induction sensors and detection coil modules. The high-precision bobbin ensures consistent coil parameters and improves detection accuracy and signal stability of sensing equipment.
3. Intelligent Electromagnetic Lock Equipment
Matched with various solenoid lock and magnetic lock coil structures. The insulated molded bobbin guarantees safe and stable electromagnetic conversion for intelligent access control and locking equipment.
4. Household & Commercial Electrical Components
Widely used in electrical control coils, switch coils and miniature electromagnetic driving components of household appliances and commercial electrical equipment, ensuring safe and stable circuit operation.
5. Automotive Electronic Electromagnetic Parts
Suitable for automotive miniature solenoid coils, control induction coils and sensor components. The high-temperature resistant bobbin adapts to complex vehicle working environments.
6. Custom Non-Standard Electromagnetic Devices
Perfect for various customized non-standard automation electromagnetic equipment, special-shaped coil modules and precision electronic driving components, providing personalized bobbin skeleton supporting solutions.
FAQ
Q1: What is an injection molded solenoid coil bobbin?
It is a precision insulating plastic skeleton formed by integral injection molding. It is used as the winding carrier and fixed support for solenoid coils, playing the roles of insulation, shaping, positioning and anti-deformation for electromagnetic components.
Q2: Can you provide OEM customized bobbin services?
Yes. We provide one-stop OEM customization services, including custom appearance structure, size, groove spacing, pin position, mounting structure and special material requirements to meet diverse non-standard equipment needs.
Q3: What are the advantages of injection molded bobbins compared to manual bobbins?
Injection molded bobbins feature higher dimensional accuracy, smoother winding grooves, better insulation performance and perfect batch consistency. They effectively improve coil yield and support fully automatic mass production.
Q4: Is the bobbin material high temperature and flame retardant resistant?
Absolutely. We adopt industrial-grade flame-retardant and high-temperature resistant engineering plastics. The material has strong insulation and heat resistance, adapting to long-term high-frequency operation of automation equipment.
Q5: What equipment are these bobbin cores suitable for?
They are widely applicable to industrial automation solenoids, sensors, inductors, electromagnetic locks, electrical valves, automotive electronics and various customized electromagnetic coil modules.
Q6: Can the bobbin ensure stable coil electrical performance?
Yes. The precise structural design ensures uniform winding and stable coil shaping, reducing magnetic leakage and wire displacement. It effectively guarantees consistent inductance, resistance and electromagnetic stability of finished coils.
