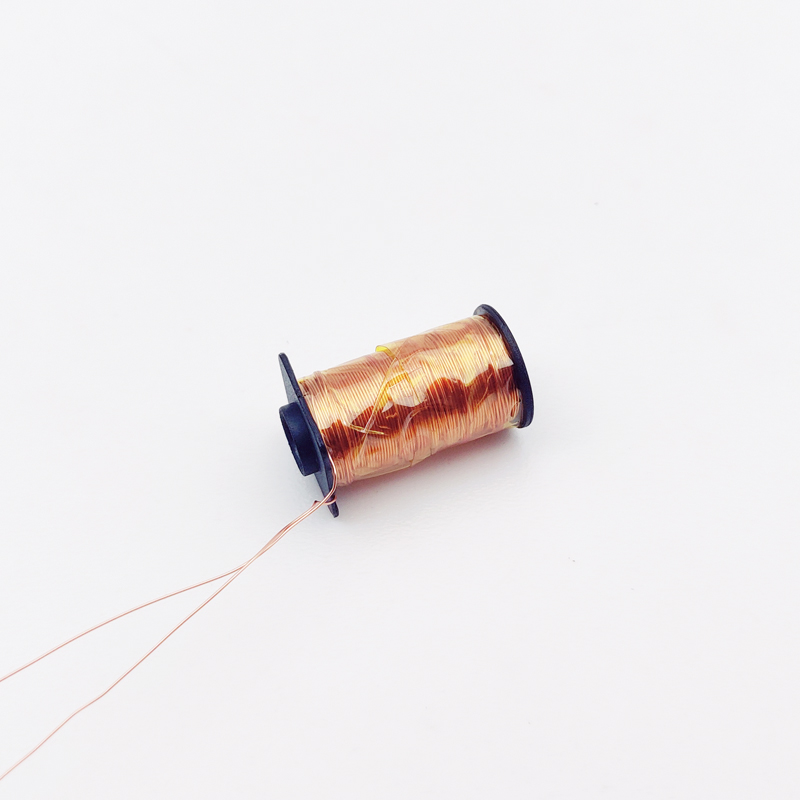

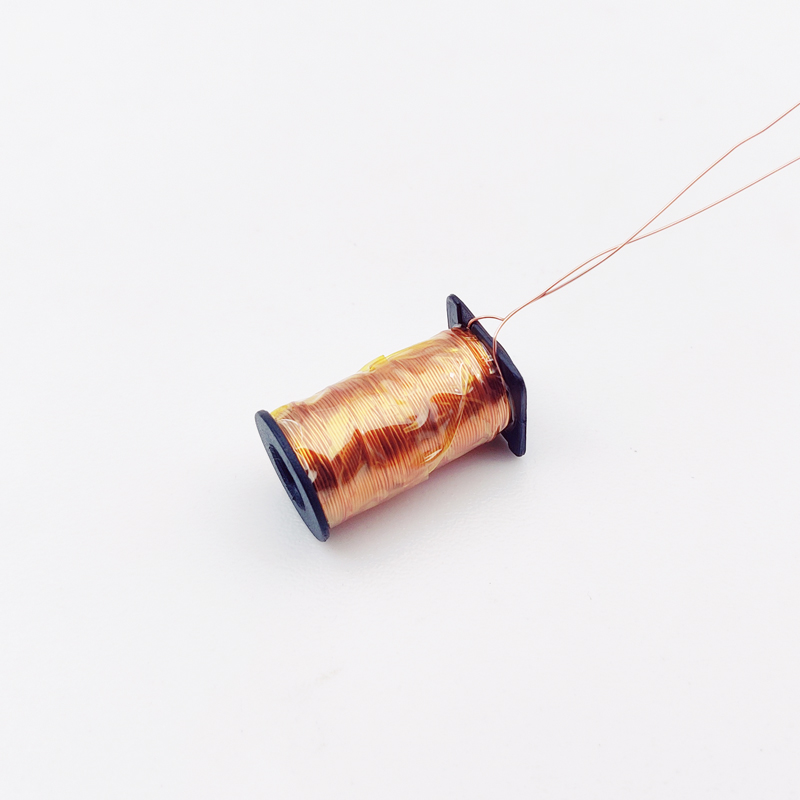

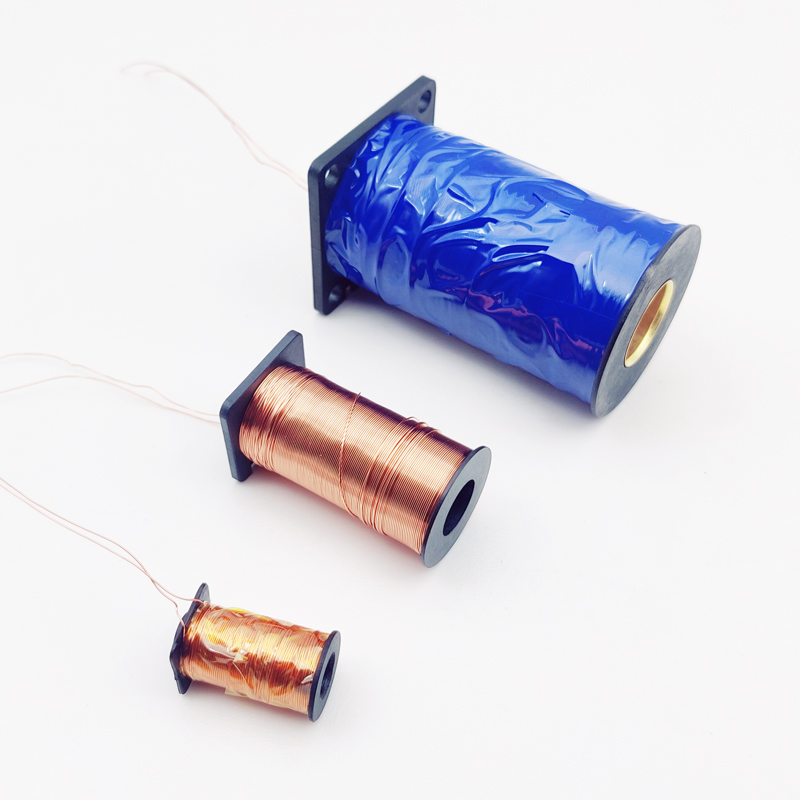

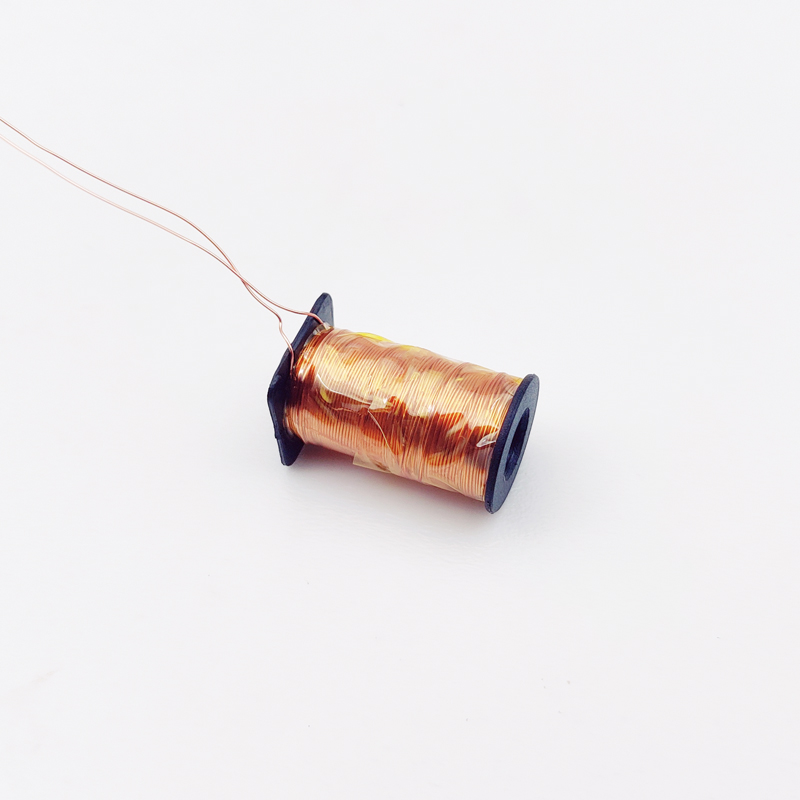

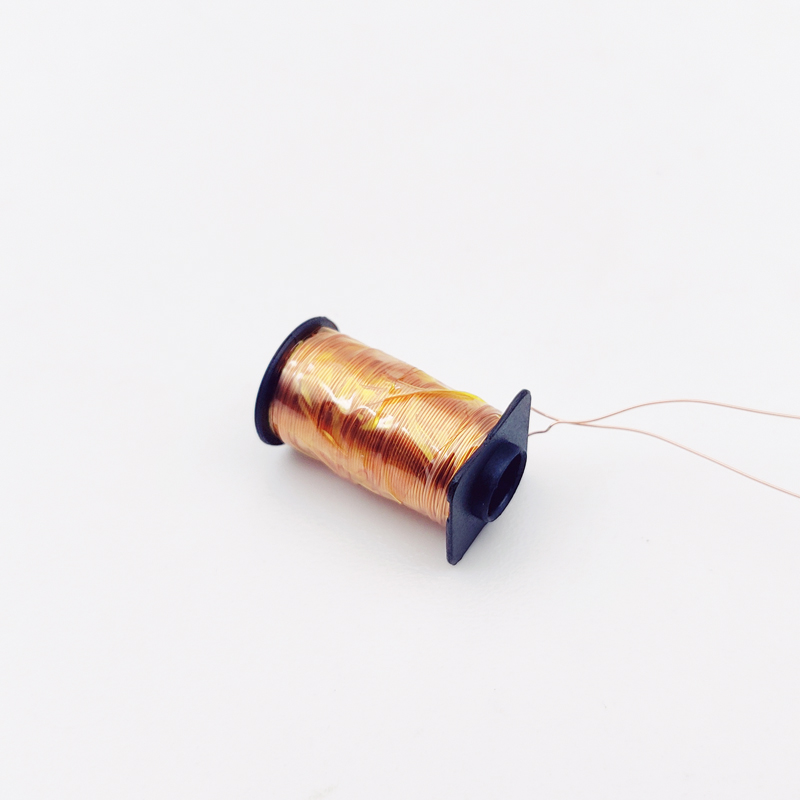

Customized Bobbin Coil Stepper Motor Coil for Quartz Watch Movement Mechanism
Place of Origin: Zhongshan
Brand Name: Landa
Model Number: Custom
Certification: CE, RoHS, REACH, UL,ISO9001,ISO14001
Minimum Order Quantity: 2pcs
Packaging Details: 35*31*18CM/CTN
Delivery Time: 7-15days
Payment Terms: 100% payment before production
Supply Ability: 50000units/per a week
- Overview
- Recommended Products
Factory wholesales Air Core Coils, Bobbin Coils,Antenna Receiver Coils, Induction Coils, Magnetic Coils, Ferrite Core Coils, Self-adhesive Coils
Custom shape, Custom Specification, Source Factory, OEM/ODM, Timely Delivery
Products Description
Product Name |
Bobbin Coil Stepper Motor Coil for Quartz Watch Movement Mechanism |
O.D. & I.D. Size |
Customized |
Color and Size |
Custom Various size by orders/standard sizes |
Shape |
Toroidal or square |
OEM/ODM |
Avaliable, please contact us for further design |
Package |
Standard or custom-made package |
Application |
Wireless charger, servo motor, Audio equipment, medical equipment, aircraft, robot, beauty instrument, water meter,etc. |
Sample Time |
7-15 working days after artwork is approved |
MP Orders Time |
10-25 Days at least it depends much on the quantity after sample is approved. |
Shipment |
Cheapest way:by sea, it will take about 1 month Express:DHL,UPS,TNT,Fedex,EMS,it will take about 5-8 days Small quantity:China Post about at least 15 days |
Payment Terms |
L/C,D/A,D/P,T/T,Western Union,MoneyGram payments for offline orders. 30% deposit in advance&balance before shipping |
Advantages
1. Ultra-Miniature Precision Customization
This customized bobbin stepper motor coil is specially designed for ultra-compact quartz watch movement structures. Adopting micro-precision winding technology, it features ultra-small size, neat wire arrangement and zero structural deviation. It perfectly fits the limited internal space of watch movements without interfering with tiny mechanical parts.
2. Ultra-Low Power Consumption Design
Optimized coil turns and high-fine enameled wire structure effectively reduce operating current and electromagnetic loss. The low-power design greatly extends quartz watch battery life, maintaining long-term stable and low-frequency stepping operation for watch movements.
3. Stable & Sensitive Stepping Performance
With uniform dense winding and precise parameter control, the coil outputs consistent electromagnetic driving force. It ensures smooth, accurate and jitter-free stepping rotation of watch motor hands, improving watch timekeeping accuracy and stability.
4. Excellent Environmental & Structural Stability
Adopts high-temperature resistant, anti-aging and shock-proof insulating materials. It resists daily wearing vibration, temperature changes and slight humidity erosion, maintaining stable electrical parameters and long service life during long-term watch operation.
5. Full Customization & Strict Batch Consistency
Supports full personalized customization of bobbin size, wire diameter, resistance, inductance and pin position according to customer drawings or samples. All products pass strict electrical testing, achieving ultra-high batch consistency for mass watch production.
Application
1. Analog Quartz Wrist Watch Movements
Serves as the core stepping driving coil for standard three-hand and two-hand quartz watches, providing stable electromagnetic power for hour, minute and second hand operation and precise timekeeping.
2. Thin & Ultra-Thin Watch Mechanisms
Applied in slim fashion quartz watches. The ultra-flat mini coil structure adapts to ultra-thin movement design, meeting lightweight and portable watch manufacturing requirements.
3. Multi-Functional Quartz Watch Modules
Matched with chronograph, calendar, alarm and dual-time quartz watch movements. It supports multi-functional stepping driving and ensures coordinated operation of complex watch mechanisms.
4. Mini Quartz Clock & Timer Cores
Suitable for small desktop clocks, wall clocks, miniature timers and portable timing devices, providing reliable stepping motor driving for civilian miniature timing equipment.
5. Hybrid Smart Quartz Watch Movements
Used for hybrid smart watches that combine quartz timing and intelligent functions. It guarantees stable basic timekeeping while adapting to low-power intelligent module matching.
6. Watch Maintenance & Aftermarket Replacement
Ideal as replacement spare coils for watch repair factories and aftermarket services. It perfectly replaces original damaged stepper coils to restore normal watch operation.
6 Standard Professional FAQ
Q1: What is a quartz watch stepper motor bobbin coil?
It is a miniature customized electromagnetic component for quartz watch movements. It converts electric energy into precise magnetic driving force to drive the stepping motor and realize accurate watch timekeeping.
Q2: What customization services can you provide?
We fully customize bobbin dimension, ultra-fine wire diameter, winding turns, DC resistance, inductance value and pin layout, strictly according to customer movement samples or technical drawings.
Q3: Why does the watch coil need ultra-low power consumption?
Quartz watches rely on button batteries for long-term power supply. Low-power coil design effectively reduces battery energy consumption and greatly extends the overall service life of watch batteries.
Q4: Can the coil resist daily vibration and temperature changes?
Yes. Adopting industrial-grade anti-vibration and temperature-resistant insulating materials, the coil maintains stable electrical performance and will not fail or drift during daily wearing and temperature fluctuation.
Q5: Does customized coil support mass production?
Absolutely. We support large-scale batch production with standardized precision winding and strict quality testing. All finished coils feature consistent parameters to meet mass assembly needs of watch manufacturers.
Q6: What problems can a high-quality watch stepping coil solve?
It effectively solves common watch defects such as slow time, stopped hands, jittering operation and unstable stepping, ensuring high-precision, stable and long-term normal operation of quartz movements.
