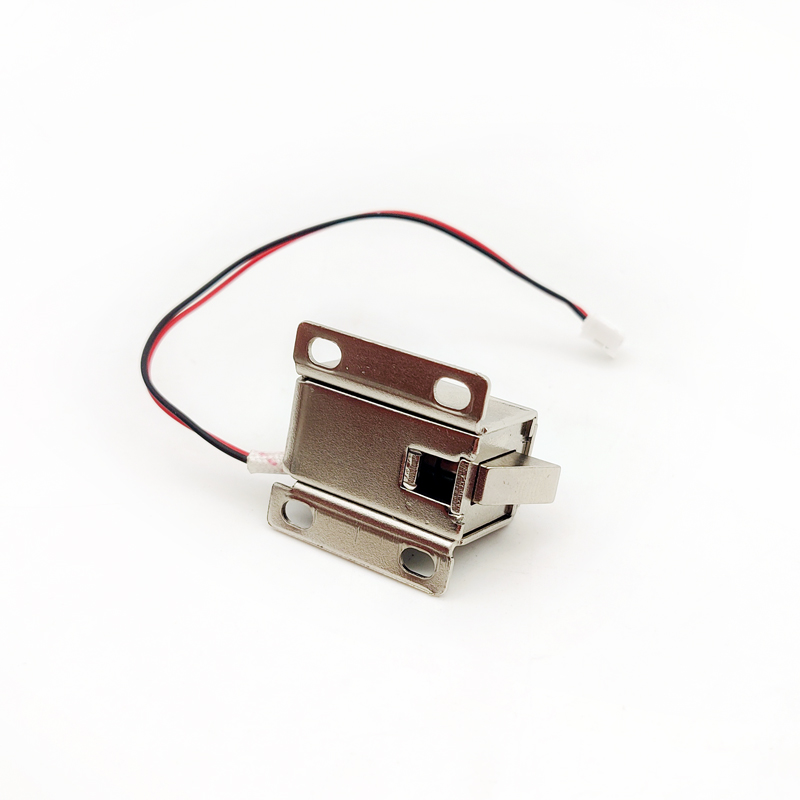

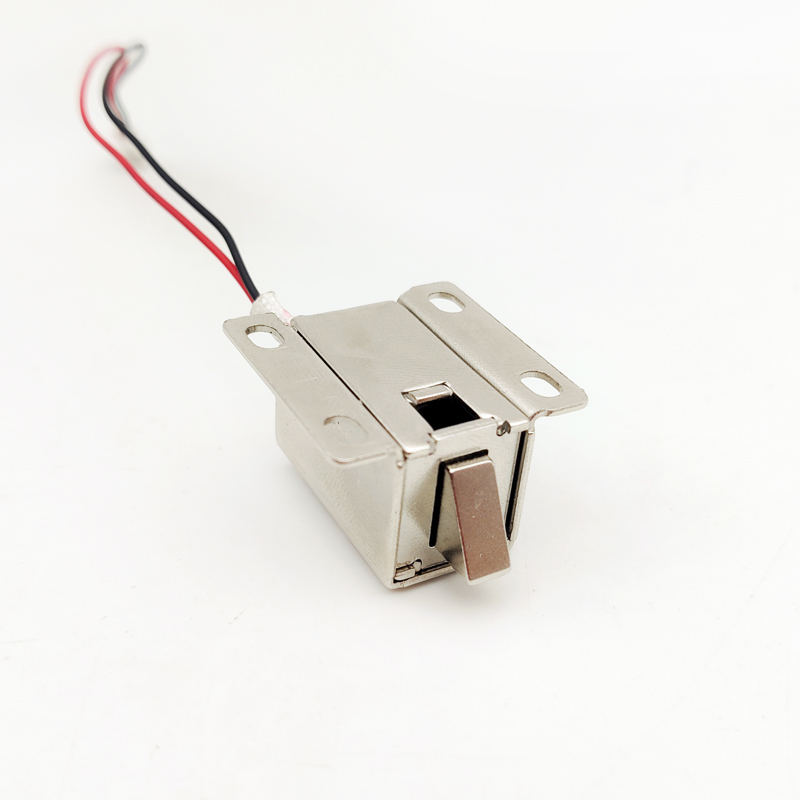

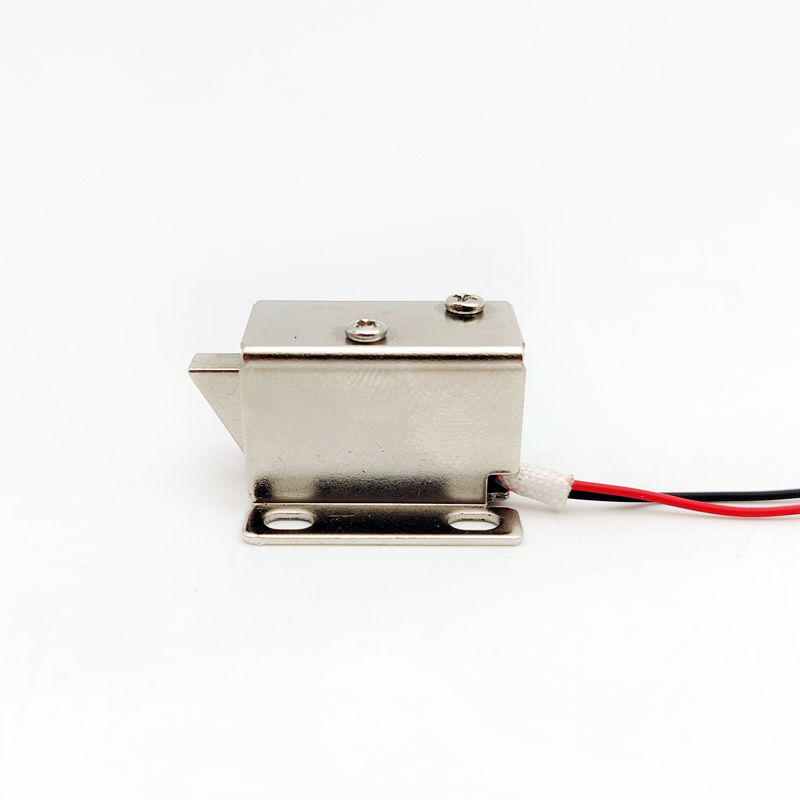

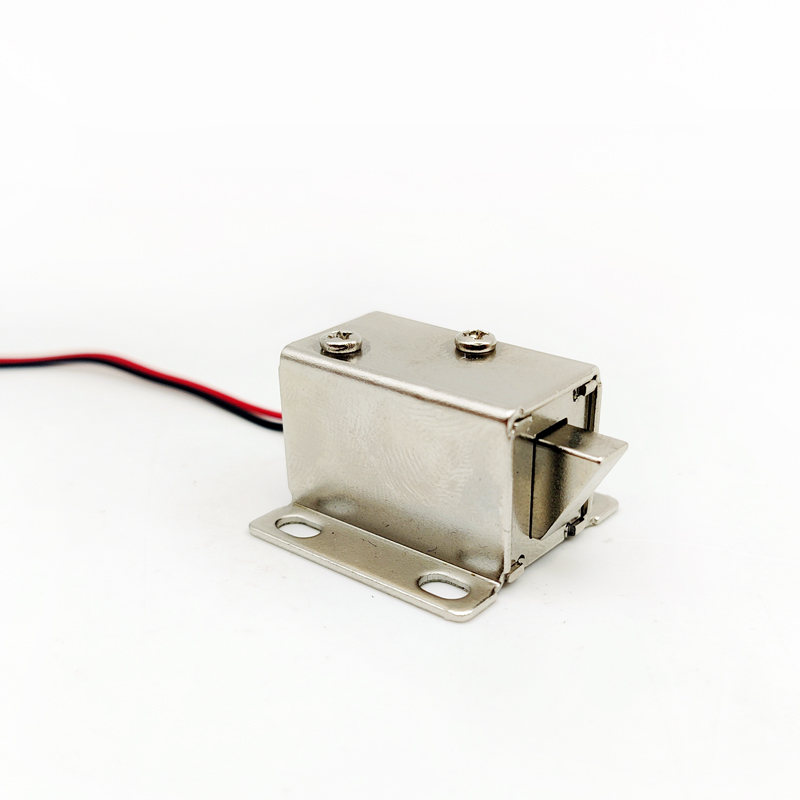

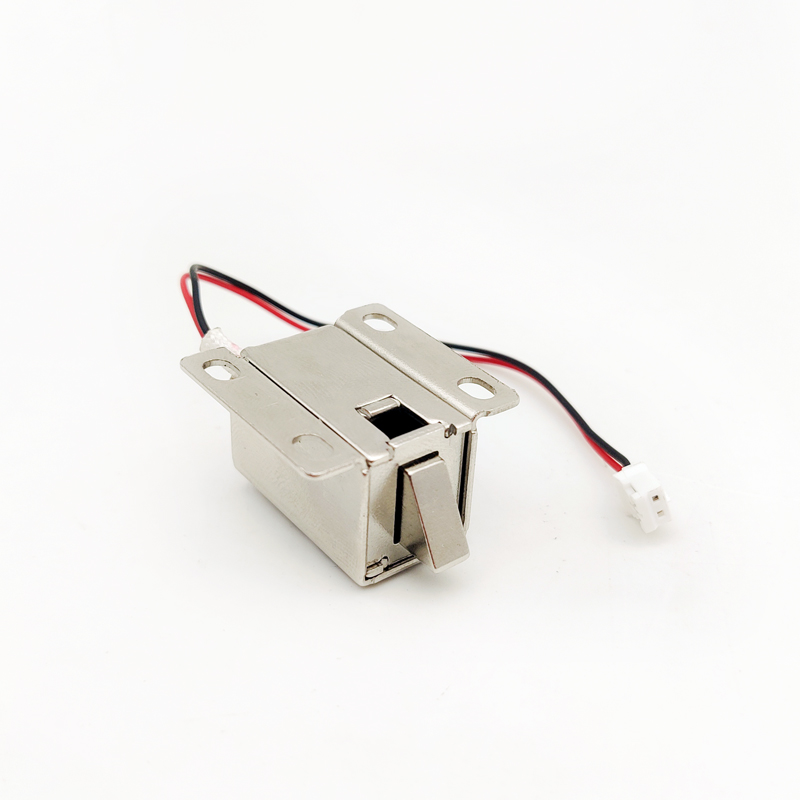

Stroke Tongue 6v 12v 24v Dc Mini Push Pull Solenoid Lock for Cabinet Door
Place of Origin: Zhongshan
Brand Name: Landa
Model Number: SHF0527L
Certification: CE, RoHS, REACH, UL,ISO9001,ISO14001
Minimum Order Quantity: 2pcs
Packaging Details: 35*31*18CM/CTN
Delivery Time: 7-15days
Payment Terms: 100% payment before production
Supply Ability: 50000units/per a week
Appurtenance:

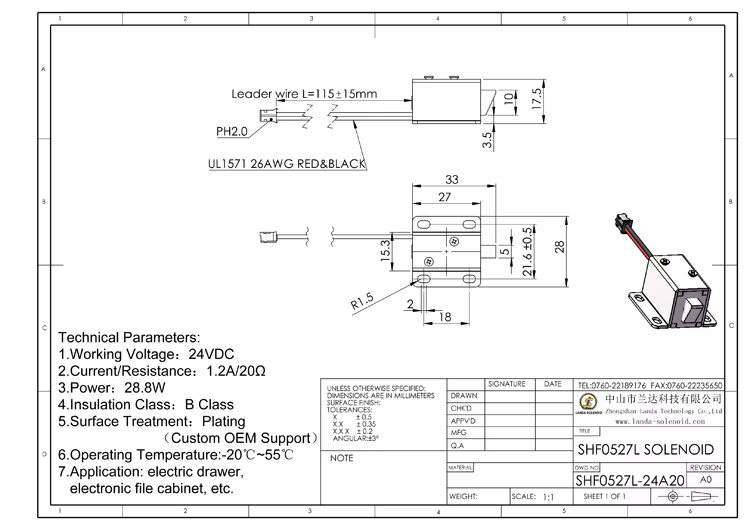

Drawing download:
- Overview
- Recommended Products
Products Specifications | |||
Brand |
Landa |
Product Series |
solenoid lock |
Model |
SHF-0527L |
Voltage |
24v dc |
Power |
28.8w |
Versions |
Pull |
Cable Length & connectors |
130mm |
Materials |
steel |
Action Form |
push pull type |
Weight (N.W.) |
0.05kg |
Install style |
Screw |
Thread size & Deepth(mm) |
Standard |
Hi-Pot Test |
AC 600V 50/60Hz 2s |
Insulation Class |
B |
Packaging details | |||
Package size/pcs(mm) |
27*28*17.5mm |
Packaging box size(cm) |
standard:21*14*13(cm), custom accepted |
Product Features
1. Made of high quality pure carbon steel, electrophoretic paint surface treatment, corrosion resistance
2. Adjustable elasticity, suitable cabinet door, automatically popped open with power on
3. Small size, regardless of the left and right, easy to install
4. Working mode: independent (power-off door locking, power-on instant trigger open lock)
5. More than 1 millon times under rated working conditions, the locking hook can carry 150 kg class pull without obvious
deformation
2. Adjustable elasticity, suitable cabinet door, automatically popped open with power on
3. Small size, regardless of the left and right, easy to install
4. Working mode: independent (power-off door locking, power-on instant trigger open lock)
5. More than 1 millon times under rated working conditions, the locking hook can carry 150 kg class pull without obvious
deformation
Advantages
1. Multi-Voltage Universal Compatibility
This mini push-pull solenoid lock supports flexible DC 6V, 12V and 24V wide voltage operation. It adapts to various low-voltage control systems and intelligent power supply modules, meeting diverse circuit matching needs for different cabinet equipment and intelligent devices.
2. Professional Stroke Tongue Push-Pull Design
Adopts precise stroke tongue telescopic structure with standard push-pull driving principle. The telescopic bolt moves smoothly and accurately, realizing stable locking and automatic release, effectively solving loose locking and jamming issues of ordinary miniature locks.
3. Ultra-Compact Mini Size & Easy Installation
Featured with lightweight mini integrated structure, the lock occupies tiny installation space. It supports embedded and surface mounting methods, perfectly fitting narrow cabinet gaps and compact intelligent equipment assembly environments.
4. Low Power Consumption & Low Heat Operation
Built with high-purity dense copper winding coil, it delivers low internal resistance and high electromagnetic conversion efficiency. It generates minimal heat during frequent high-frequency switching, supporting long-term stable cyclic operation with low energy loss.
5. High Sensitivity & Long Service Life
Equipped with high-precision spring reset structure and wear-resistant accessories. It features fast response speed, sensitive telescopic action and excellent fatigue resistance, supporting hundreds of thousands of repeated locking cycles for long-term industrial and commercial use.
Application
1. Intelligent Cabinet & Storage Lockers
Specially designed for file cabinets, storage lockers and tool cabinets. It realizes intelligent electric locking and unlocking, improving the safety and intelligence level of indoor storage management.
2. Smart Home Furniture Equipment
Widely applied in smart wardrobes, drawer locks and household storage cabinets. It provides silent and stable automatic locking to create convenient and safe smart home scenarios.
3. Vending & Self-Service Machines
Perfect for self-service vending machines, query terminals and small automatic equipment cabinets. It supports frequent switching actions to ensure stable and orderly equipment operation.
4. Office & Commercial Facilities
Suitable for office file cabinets, exhibition display cabinets and commercial storage cabinets. It realizes unified intelligent access control management, improving office and commercial operation efficiency.
5. Industrial Control Equipment Cabinets
Embedded in industrial electrical control cabinets and miniature automation equipment. It provides safe locking protection for circuit modules to prevent accidental opening and equipment failure.
6. Custom Intelligent Electronic Devices
Matched with various customized miniature intelligent equipment and small access control systems. Its multi-voltage compatibility and mini size make it ideal for diverse personalized intelligent locking solutions.
FAQ
Q1: What voltage options does this mini solenoid lock support?
This stroke tongue solenoid lock supports three universal DC voltages of 6V, 12V and 24V, which is compatible with most miniature intelligent control circuits and low-voltage power supply systems.
Q2: What working principle does this push-pull lock adopt?
It adopts electromagnetic push-pull driving and spring reset principle. Power-on drives the stroke tongue to extend for locking, and power-off realizes automatic reset and unlocking, with sensitive and stable action.
Q3: Is this solenoid lock suitable for narrow cabinet installation?
Yes. Featuring ultra-compact mini body and flexible installation modes, it is specially designed for narrow cabinet gaps and compact equipment assembly scenarios with strong space adaptability.
Q4: Can it work stably with frequent switching?
Absolutely. With high wear-resistant structure and low-loss coil design, it supports long-term high-frequency repeated locking and unlocking, maintaining stable performance without jamming or failure.
Q5: Does this lock generate excessive heat during operation?
No. The high-purity copper winding ensures low internal resistance and low power loss. It produces extremely low heat during operation, effectively avoiding overheating and ensuring long-term safe use.
Q6: What are the main application scenarios of this lock?
It is widely used for cabinet doors, drawers, storage lockers, vending machines, office facilities, industrial control cabinets and various miniature intelligent electronic locking equipment.
