Landa XH4942 Permanent Holding Electromagnet | 24V DC Release | Power-Off Holding
Power-off magnetic holding with electrically controlled release. 24V DC | 20W | Ø49 × 42 mm. Holding force ≥40 kgf at 0 mm air gap; residual holding force ≤2 kgf at 24V DC. 10% duty cycle; each ON time <2 seconds.
- Overview
- Recommended Products
- Power-off holding: no coil power required during holding.
- Electrical release: 24V DC, red positive and black negative.
- Energy-conscious operation: power only during energized release.
- Compact integration: Ø49 × 42 mm body with one central rear M8 mounting thread.

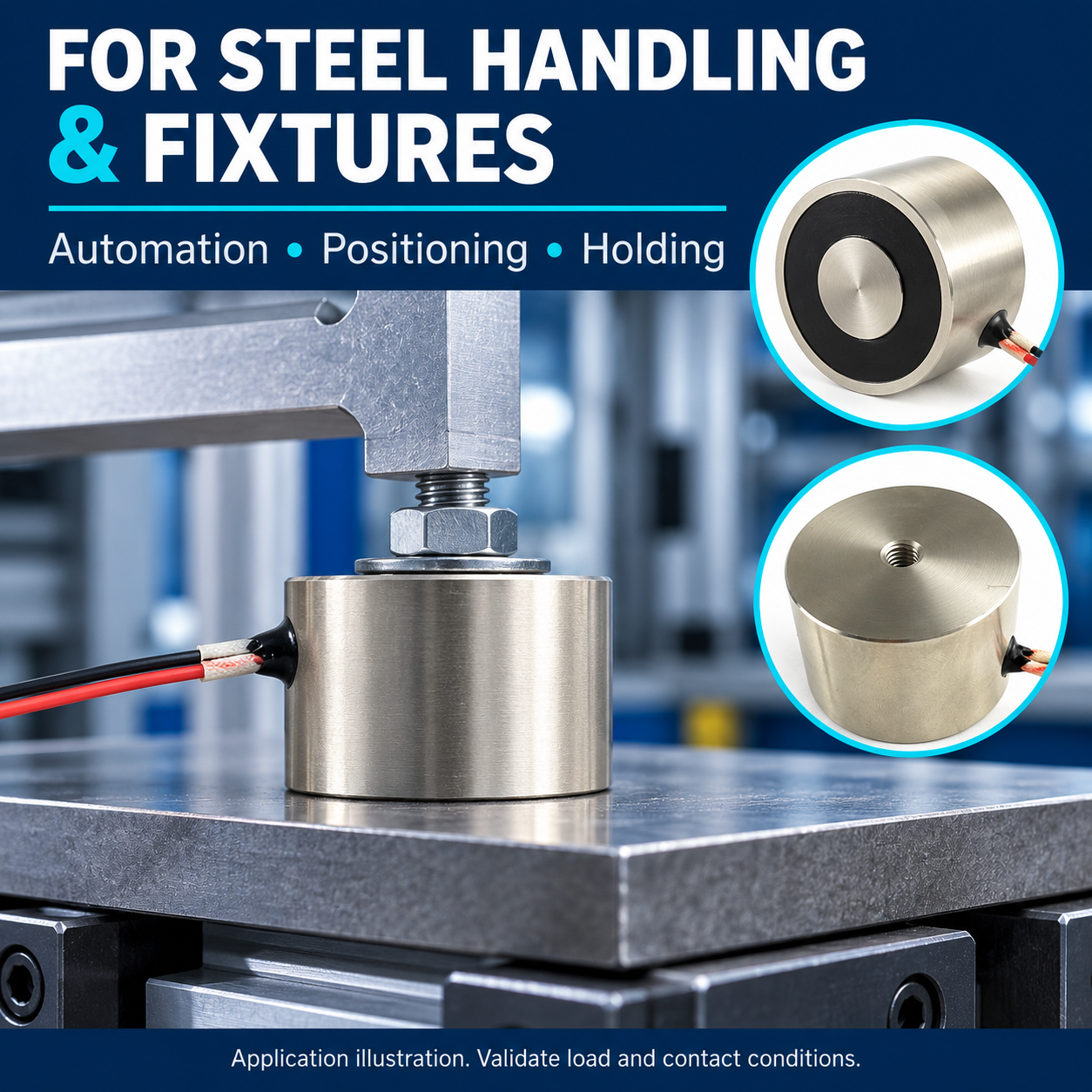

- Magnetic gripping of suitable steel workpieces in automated transfer processes.
- Workpiece positioning during assembly and handling.
- Fixture holding with electrically controlled release.
- Use ferromagnetic material with good magnetic permeability.
- Keep the contact surface flat and clean.
- Workpiece thickness greater than 5 mm is preferred.
- The contact area should exceed the magnet holding face.
XH4942 Permanent Holding Electromagnet
Hold without power. Release with 24V DC.
The Landa XH4942 provides magnetic holding force while unpowered. Applying 24V DC with the specified polarity reduces magnetic attraction for controlled release. Its compact cylindrical body integrates into industrial steel handling, positioning and fixture holding systems.
Key Benefits
How It Works

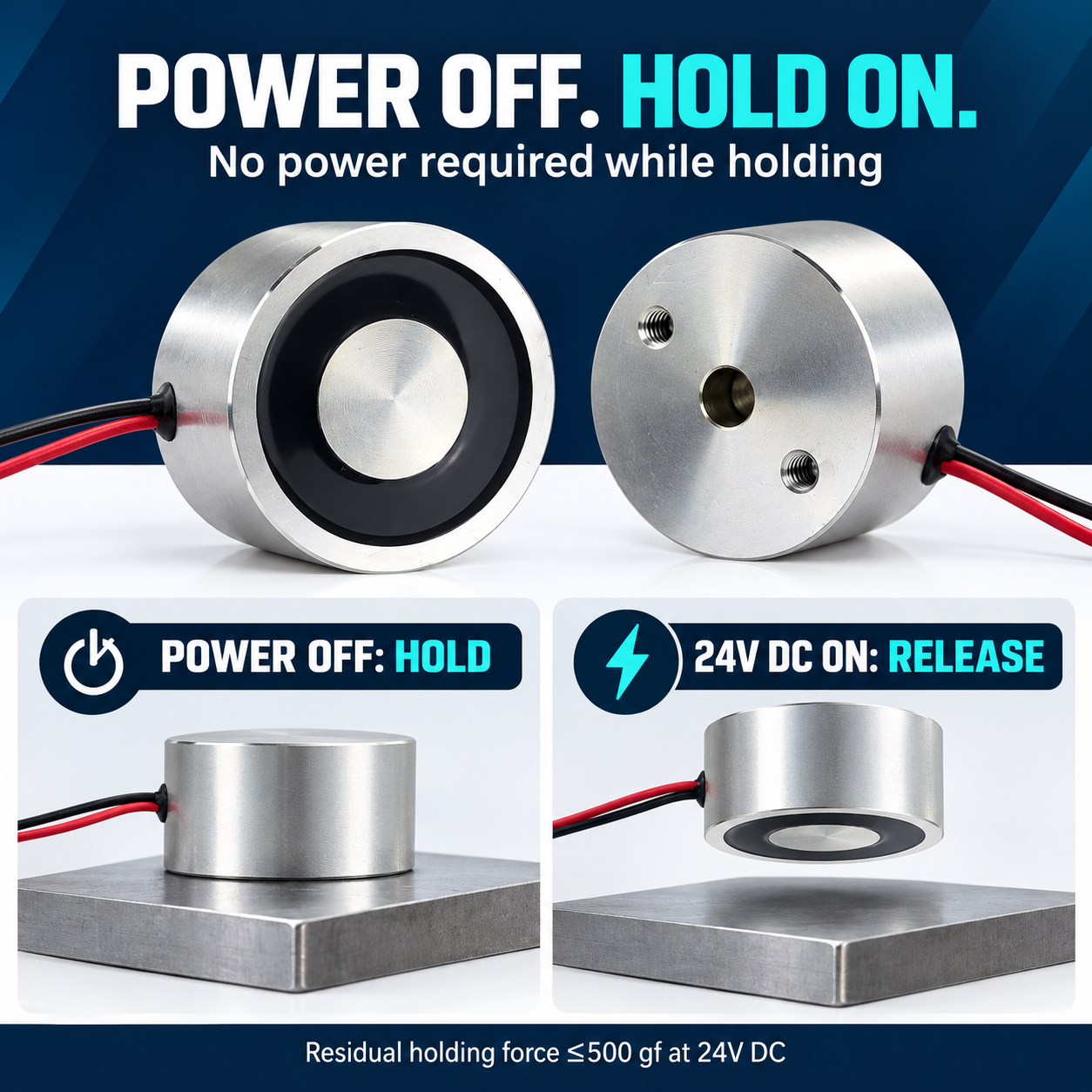

POWER OFF — HOLD: the permanent magnet maintains attraction without energizing the coil.

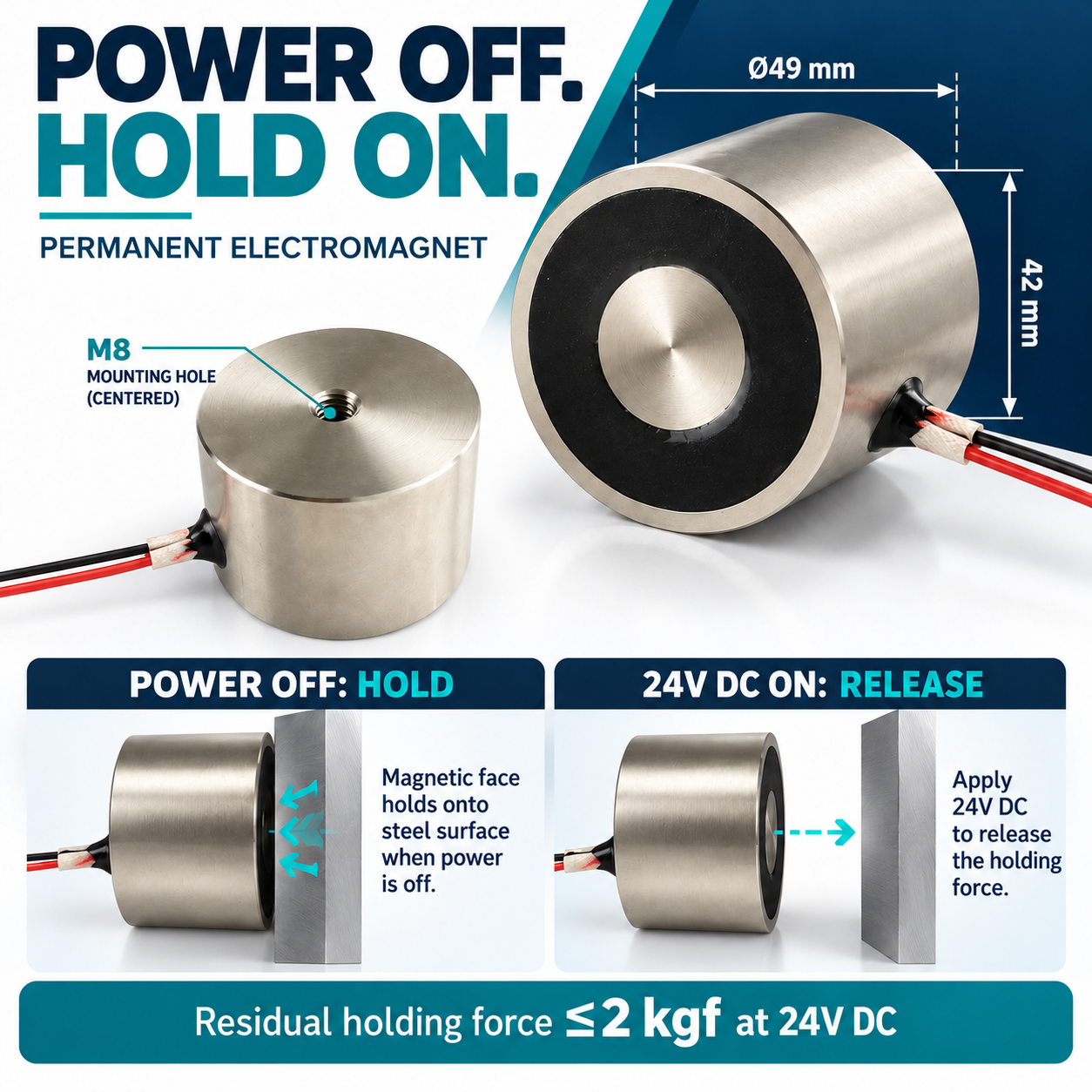

24V DC ON — RELEASE: energizing the coil reduces attraction. Residual holding force is ≤2 kgf at 24V DC. A suitable separation mechanism may be needed.
Control limits: 10% duty cycle; each ON period must be less than 2 seconds. The release coil is not intended for continuous energization.
Energy-Efficient Holding

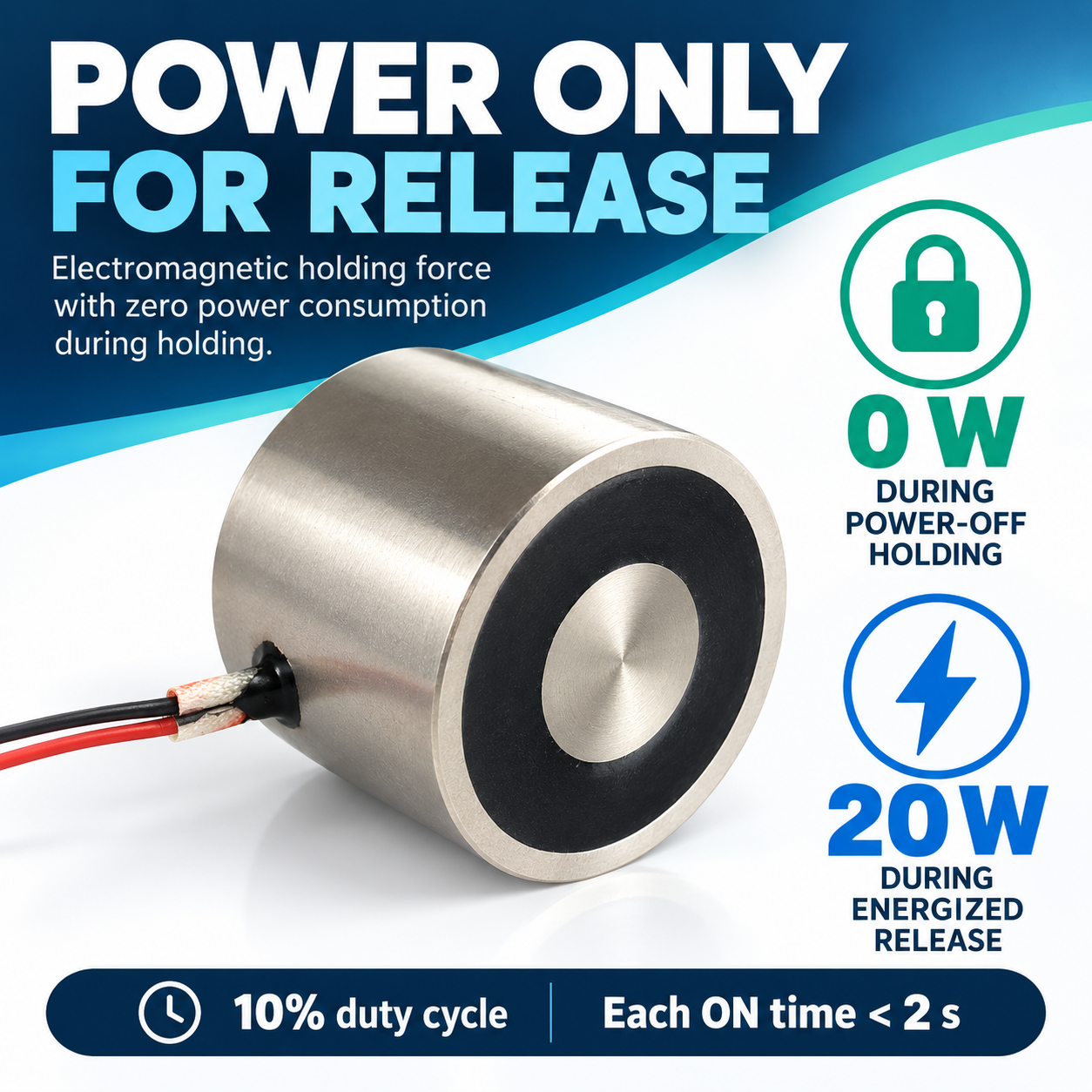

No coil power is required during the unpowered holding stage. Energized power is 20W. For long holding periods and short release events, this avoids continuous coil power while holding. Actual energy use depends on the control cycle and external equipment.
Technical Specifications
| Model | XH4942 |
|---|---|
| Type | Permanent electromagnet / power-off holding magnet |
| Release voltage | 24V DC |
| Energized power | 20W |
| Coil resistance | 28.8 Ω ±10% at 25°C |
| Power-off holding force | ≥40 kgf at 0 mm air gap |
| Residual holding force | ≤2 kgf at 24V DC |
| Duty cycle | 10%; each ON time <2 seconds |

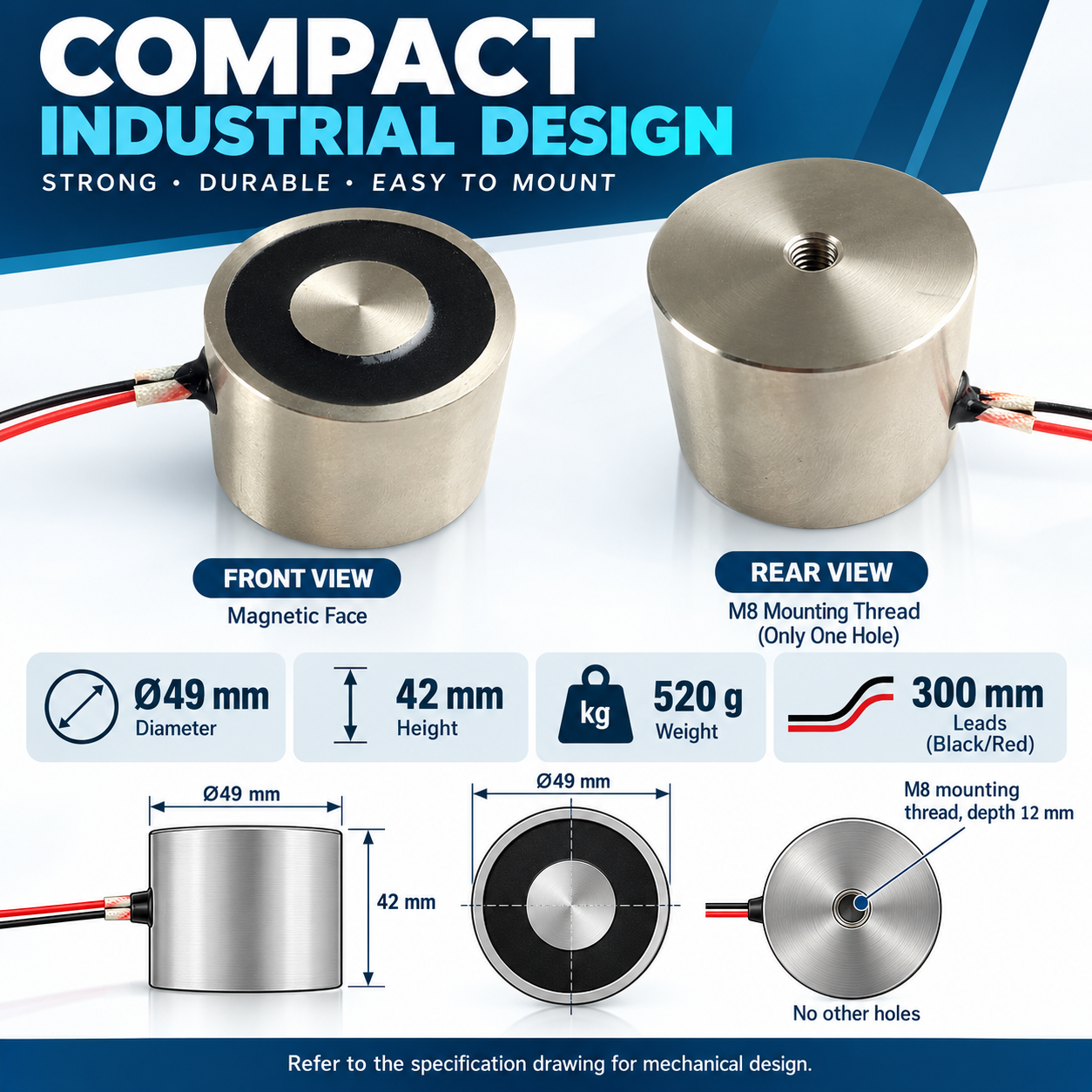

| Body dimensions | Ø49 × 42 mm |
| Weight | 520 g |
| Rear mounting thread | M8, depth 12 mm |
| Lead wires | 300 mm; UL1007 20 AWG |

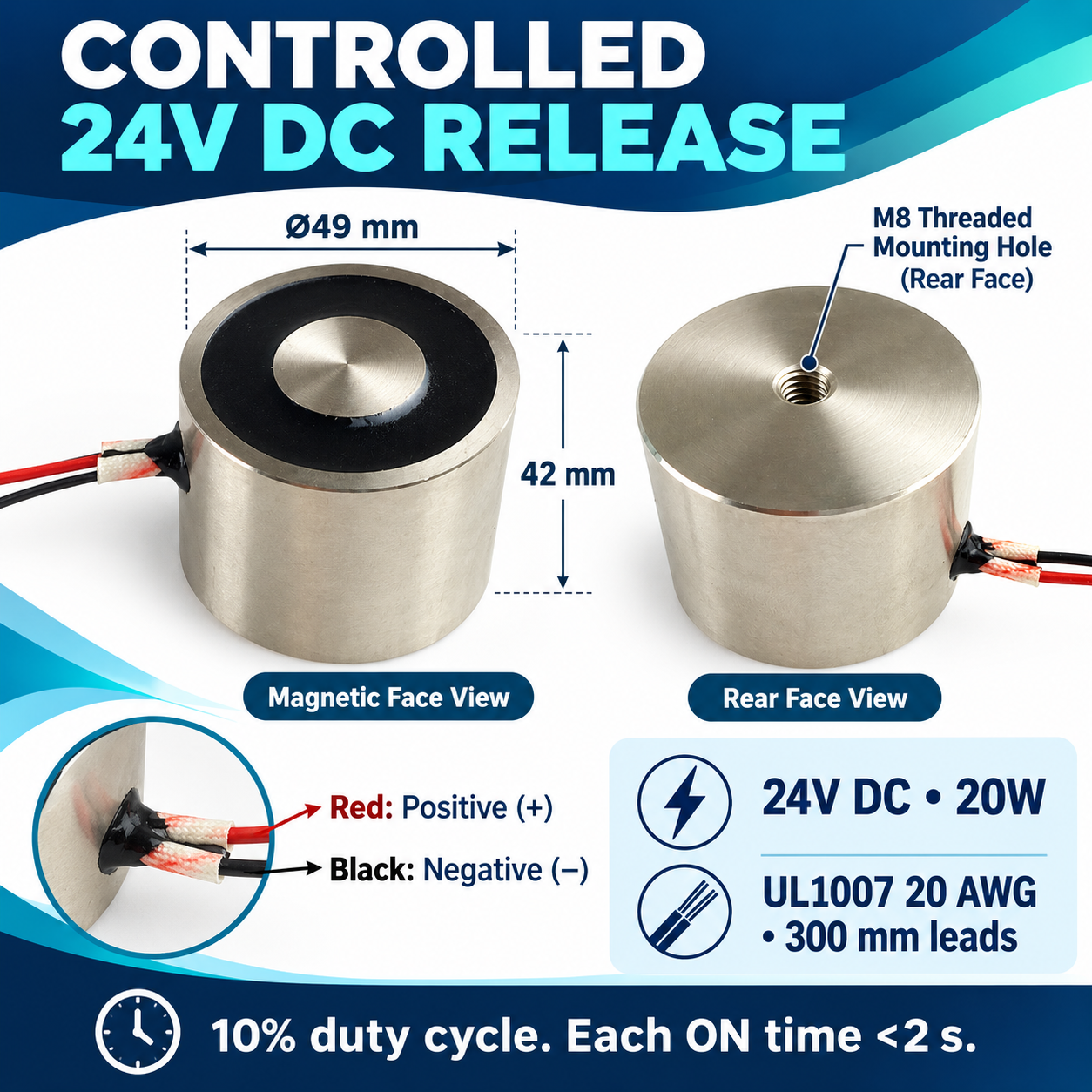

| Polarity | Red: positive (+); black: negative (−) |
| Insulation class | A (105°C) |
| Hi-pot test | AC600V, 50/60Hz, 2 seconds |
Insulation class does not specify allowable ambient temperature. Refer to the original drawing for mechanical design.
Industrial Applications
The stated holding force is not a rated lifting capacity. Validate workpiece material, thickness, contact conditions, orientation, acceleration and usable load in the complete system.
Contact Conditions

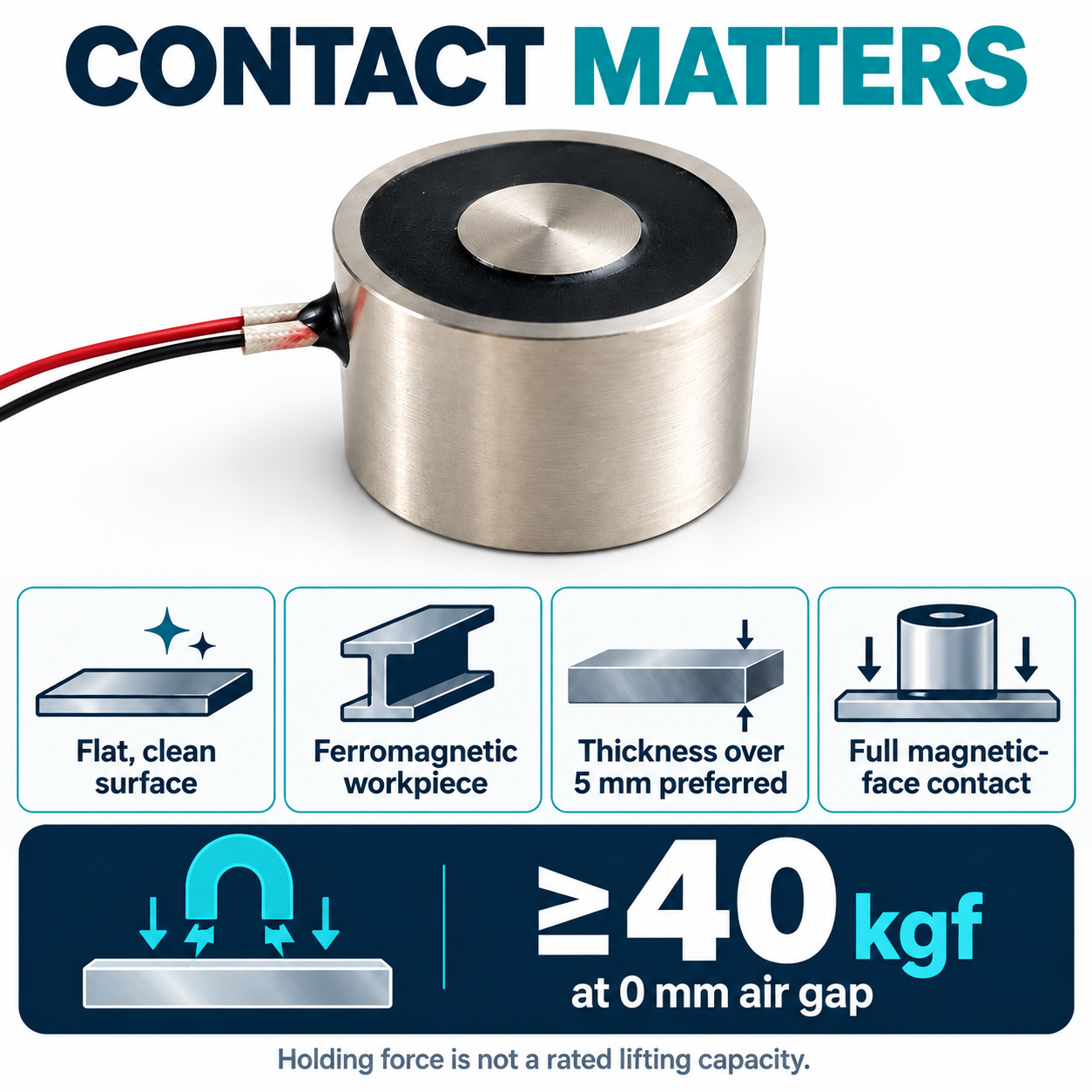

The ≥40 kgf value applies at 0 mm air gap. Actual holding force depends on material and contact conditions.
Frequently Asked Questions
Does XH4942 need power to keep holding?
No. The permanent magnet supplies attraction while the coil is unpowered.
Is attraction completely zero when powered?
No zero-force guarantee is stated. Residual holding force may be up to 2 kgf at 24V DC. Account for this in workpiece separation.
Can the release coil remain powered continuously?
No. Observe the 10% duty cycle and keep each ON time below 2 seconds.
How is it installed?
Use the single central rear M8 mounting thread, 12 mm deep. Connect red to positive and black to negative.
Does ≥40 kgf mean it can lift a 40 kg load?
Zero-gap holding force is not an approved lifting capacity. Verify usable loads for the complete application.
Discuss Your Application
Please provide workpiece material, mass, thickness, contact dimensions, orientation, acceleration, holding duration, release timing and required quantity.
The product video is an illustrative action simulation, not a physical performance test.
